Fiber Optic Armoured Cable

GYTA53 2-144 Cores Fiber Optical Cable KEXINT FTTH G.652D Multitube Armored Stranded

All Category

Fiber Optic Quick Connector

Mr. Steve

steve@kexint.com

86-13509645699

Contact Now

GYTA53 2-144 Cores Fiber Optical Cable KEXINT FTTH G.652D Multitube Armored Stranded

Brand Name:	KEXINT
Model Number:	GYTA53
MOQ:	10 kilometers
Price:	10 - 99 kilometers $310 ; 100 - 999 kilometers $300 ; >= 1000 kilometers $290
Packaging Details:	Wooden Drum
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong，China

Certification:

CE/ROHS/ISO9001

Color:

Black

Fiber Type:

SM G.652D

Sheath Material:

Fiber Diameter:

250±15 μm (Colored)

Cable Type:

Armored Stranded

Strength Member:

Steel Wire

Certification:

CE/ROHS/ISO9001

Install Way:

Dust/Direct Buried Installation

Operating Temperature:

-40~+70 ℃

Supply Ability:

1000 Piece/Pieces per Week

Highlight:

FTTH G.652D Fiber Optical Cable

GYTA53 Fiber Optic Armoured Cable

Product Description

Fiber Optical Cable GYTA53 2-144 Cores KEXINT FTTH G.652D Black Fibers Multitube Outdoor Armored Stranded GYTA53 2-144 Cores Fiber Optical Cable KEXINT FTTH G.652D Multitube Armored Stranded 0

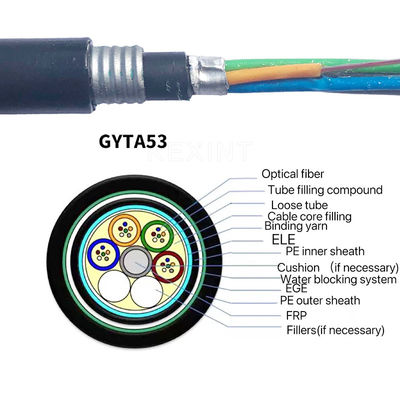

GYTA53 uses metal strength member as central strength member to provide excellent strain performance of the cable. Double-jacket structure provide the cable nice properties of moisture resistance and crush resistance. High strength loose tube is hydrolysis resistant. A layer of water-blocking material is applied around the cable core to prevent water ingress. It can be used for duct and direct buried application, suitable for harsh environments. GYTA53 2-144 Cores Fiber Optical Cable KEXINT FTTH G.652D Multitube Armored Stranded 1

Features:

1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility

5. PE/LSZH sheath protects cable from ultraviolet radiation
6. 100% cable core filling
7. Double jacket single armored
8. (GYTA53) for rodent protection and direct burial

						Items

						Descriptions

Material

						Moisture Proof

						Corrugated Al Tape

						Inner Sheath

						PE

						Armor

						Corrugated Stainless Steel Tape

						Outer Sheath

						HDPE

						Tensile
Strength

						Short term (N)

						3000

						Long term (N)

						1000

Crush

						Short term (N/10 cm)

						3000

						Long term (N/10 cm)

						1000

						Applicable
Temperature
Range

						Operation

						- 45℃ ~ +70℃

						Installation

						- 20℃ ~ +60℃

						Storage & Shipping

						- 45℃ ~ +70℃

						Bending
Radius

						Unloaded

						12.5 Times of Outer Diameter

						Loaded

						25 Times of Outer Diameter

						Items

						Unit

						Parameters

						G.652D

Mode Field Diameter

						1310 nm

						μm

						9.2±0.4

						1550 nm

						μm

						10.4±0.8

						Cladding Diameter

						μm

						125±1

						Cladding Non-Circularity

						%

						≤1.0

						Core-Cladding Concentricity Error

						μm

						≤0.6

						Coating Diameter

						μm

						245±5

						Coating Non-Circularity

						%

						≤6.0

						Cladding-Coating Concentricity Error

						μm

						≤12.0

						Cable Cutoff Wavelength

						nm

						λcc≤1260

						Attenuation
(max.)

						1310 nm

						dB/km

						≤0.36

						1550 nm

						dB/km

						≤0.22
