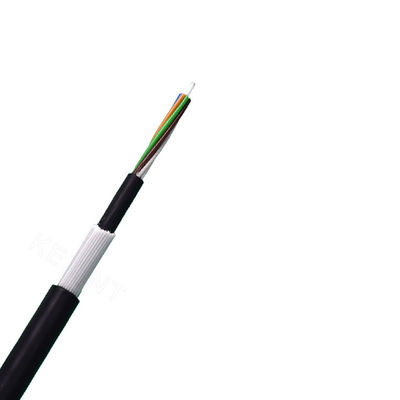

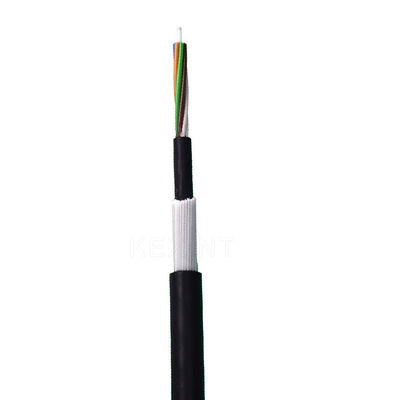

KEXINT GYFTY83 Outdoor Anti-bird Pecking Rat-proof Non-metal Central Strengthen FRP Optical Fiber Cable

Brand Name:	KEXINT
Model Number:	GYFTY83
MOQ:	1+km
Price:	524.36+$+km
Packaging Details:	box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE Iso-9001 Ross UL

Application:

Aerial Duct Direct Buried

Fiber Type:

G652D,G655,G657

Strengthen Member:

Inner Jacket:

Outer Jacket:

PE LSZH

Fiber Count:

6-24 Cores

Package:

Wooden Drum

Operating Temperature:

-40℃~85℃

Supply Ability:

1000+km+Day

Product Description

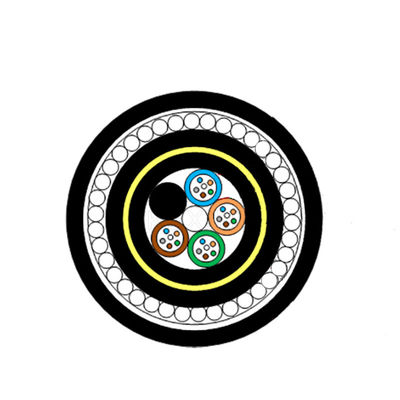

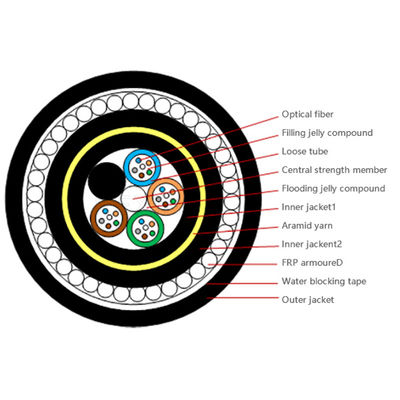

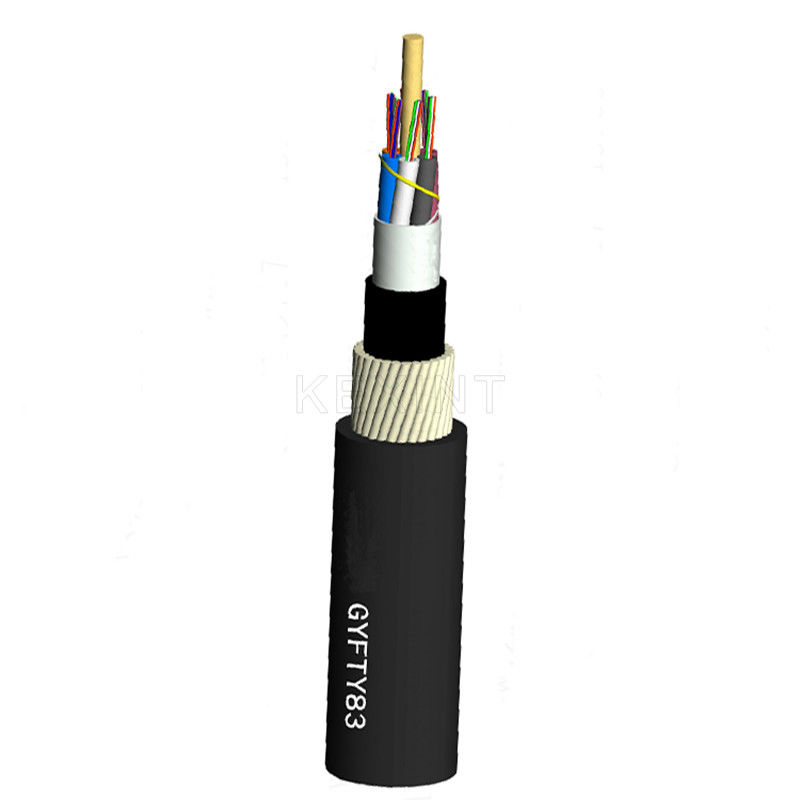

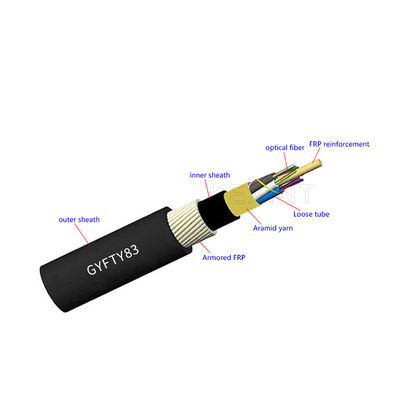

GYFTY83 fiber optic cable is designed by physical and chemical anti-rodent methods. The optical fiber is installed in the loose tube and twisted around the central strength member. The gap of the cable core is filled with water-blocking ointment. Combine the aramid yarn for reinforcement, finally add PE outer sheath, extrude PE sheath inside, and use flat FRP for armor, and finally extrude PE outer sheath

GYFTY83 optical cable is a full-dielectric non-metallic structure, using high-strength glass fiber reinforced plastics to form an extremely effective anti-rodent and anti-squirrel protective layer, and through structural optimization, the miniaturization of the optical fiber cable core and the heavy-duty anti-rodent layer are achieved, effectively ensuring Anti-rodent, anti-squirrel performance.


Application:

The optical cable is suitable for direct burial laying

Non-self-supporting overhead, pipeline

Features:

Precise fiber excess length control ensures that the cable has excellent tensile and temperature performance

The loose tube material has good hydrolysis resistance, and the tube is filled with ointment to protect the optical fiber

The sheath material has good anti-solar radiation performance

The double-layer sheath makes the cable have excellent compression resistance

All-dielectric optical cable, especially suitable for areas around electric fields or lightning-prone areas

Structure		Unit	Parameter
Fiber count		fibers	6~24
Loose tube Diameter		mm	Ф1.8~2.0
Cores of per tube (no more than)		--	6
Central strength member diameter(FRP)		mm	2.0
Element		--	5
FRP			1.6*19
Cable diameter		mm	15.7±0.5
Weight		Kg/km	249
wooden drum 2km		mm	1300760500(DdL)
Tensile strength	Long term	N	4500
	Short term	N	8800
Crush Resistance	Long term	N	2200
	Short term	N	3000
Bending Radius	Dynamic	mm	≥25*OD
	Static	mm	≥12.5*OD
Operating Temperature		℃	-40 --- +60


Test requirements:

No	Item	Test standard	Method	Details specification
1	Tensile test	IEC-60794-1-E1	-Max. Tensile strength:5000N -Sample length:50 meters -Time: 1minutes	-Fiber strain at maximum Load: max. 0.33% -Attenuation increase<0.10dB, -Reversible
2	Crush test	IEC-60794-1-E3	-Load: 3000N/100mm -Time: 1 minutes -Number of tests: 3	-No splits or cracks in the outer jacket; -Attenuation increase<0.10dB, -Reversible
3	Impact test	IEC-60794-1-E4	-Impact energy:1kg - Height:1 meter -Impact points: 5 --Number of impacts: 5	-No splits or cracks in the outer jacket -Attenuation increase≤0.10dB -Reversible
4	Repeated bending	IEC-60794-1-E6	-1m cable length with 250N weight, 30 cycles	-No damage to the outer jacket -Attenuation increase ≤0.10dB -Reversible
5	Torsion test	IEC-60794-1-E7	-1m cable length with 250N weight ±90 degrees -Time:10 cycles	-No damage to the outer jacket -Attenuation increase ≤0.10dB -Reversible
6	Bending test	IEC-60794-1-E11	-Diameter of mandrel: 25×D -Number of turns/helix:10 -Number of cycles: 5	-No damage to the outer jacket - No fiber break -Reversible
7	Temperature cycling test	IEC-60794-1-F1	-Temperature step: +20℃→-40℃→+60℃→-40℃→ +60℃→+20℃ -Time per each step: 24 hrs -Number of cycles: 2 cycles	-Attenuation variation for reference value(the attenuation to be measured before test at +20±3℃) ≤0.05dB/km, -Reversible
8	Water penetration test	IEC-60794-1-F5	-Water height: 1m, -Sample length:3m, -Duration of test: 24hrs	-No water leakage at the end of the sample
9	Drip test	IEC-60794-1-E14	-Five 0.3m samples suspended vertically in a climate chamber, raised temperature to +70℃	-No filling compound shall drip from tubes after 24 hr

Packaging and drum: 1. The cable is wound on a non-returnable wooden drum. Both ends of cable are securely fastened to drum and sealed with a shrinkable cap. The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter. -Cable designation -Number of optical fiber -Manufacture name -Month/Year of Manufacture -Cable length The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.
2. Drum marking  Each side of every wooden drum shall be permanently marked in a minimum of 3 cm high lettering with following: -Manufacture name - Cable length - Number of fibers - Cable segment number - Inspection stamp and date 3. Packing and shipping  The both end of each cable shall be sealed with suitable caps to prevent ingress of moisture. The factory length of the cable shall be wound on a strong wooden drum.
