Fiber Optic Armoured Cable

4-96 Cores Fiber Optic Cable KEXINT GYTA Outdoor Black Armoured Stranded Loose Tube

All Category

Fiber Optic Quick Connector

Mr. Steve

steve@kexint.com

86-13509645699

Contact Now

4-96 Cores Fiber Optic Cable KEXINT GYTA Outdoor Black Armoured Stranded Loose Tube

Brand Name:	KEXINT
Model Number:	GYTA
MOQ:	10 kilometers
Price:	10 - 99 pieces $500; 100 - 999 pieces $480; >= 1000 pieces $450

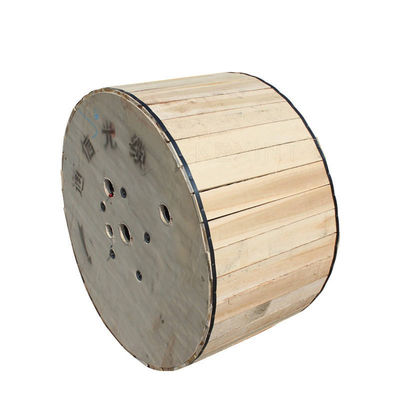

Packaging Details:	Wooden Drum
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong，China

Certification:

2021SR1048104

Fiber Count:

2-96 Cores

Fiber Type:

G652D,G657A

Strength Member:

Steel Wire/FRP

Color:

Black

Jacket Material:

PE PVC LSZH HDPE

Allowable Tensile Strength:

3000N

Package:

Wooden Drum

Operating Temperature:

-40℃ -- +70℃

Warranty:

2 Years

Supply Ability:

1000 Piece/Pieces per Week

Highlight:

GYTA Outdoor Fiber Optic Cable

Stranded Fiber Optic Armoured Cable

Product Description

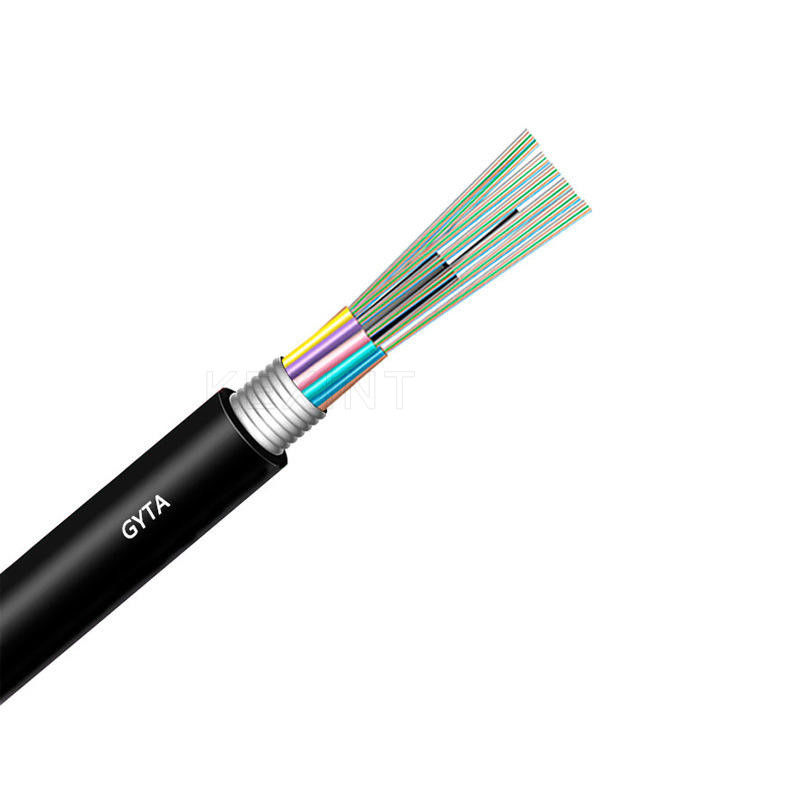

Fiber Optic Cable KEXINT GYTA Outdoor Black Armoured Stranded Loose Tube 4-96 Cores

Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.

4-96 Cores Fiber Optic Cable KEXINT GYTA Outdoor Black Armoured Stranded Loose Tube 0

Characteristics:

· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility

· PE/LSZH sheath protects cable from ultraviolet radiation
· 100% cable core filling · Double jacket single armored
· (GYTA) for rodent protection

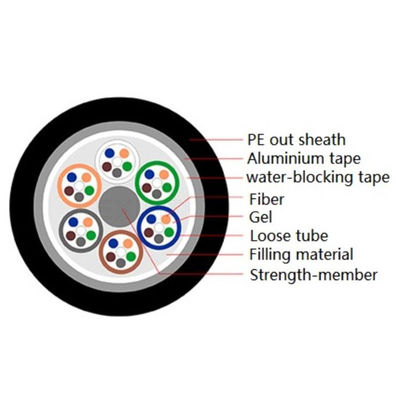

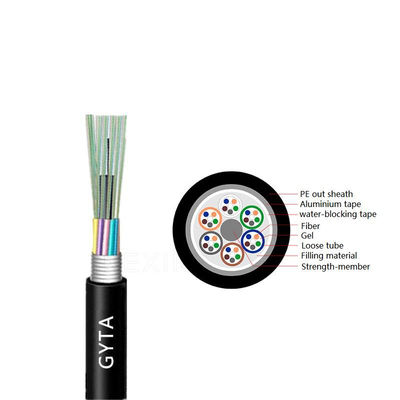

Description: 1.250μm Coloured Fiber
2.PBT loose Tube
3.Tube Filling Compound(Gel)
4.Steel wire central strength menber
5.PE/LSZH outer Sheath
6.PSP corrugated steel tape armored

						Fiber Count

						Nominal Diameter (mm)

						Nominal Weight (kg/km)

						Max Fibers per Tube

						Max No. of (Tubes+fillers)

						Allowable Tensile Load (N)

						Allowable Crush

						Resistance

						(N/100mm)

						Short Term

						Long Term

						Short Term

						Long Term

						2~30

						13.2

						162

						6

						5

						3000

						1000

						3000

						1000

						32~48

						13.8

						175

						8

						6

						3000

						1000

						3000

						1000

						50~72

						14.6

						205

						12

						6

						3000

						1000

						3000

						1000

						74~96

						16.0

						230

						12

						8

						3000

						1000

						3000

						1000

						98~144

						17.6

						285

						12

						12

						3000

						1000

						3000

						1000

						>144

						Available upon customer’s request

Note:

1. For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material
2.Upon customer’s request, cables with longitudinal color strip on outer sheath can be offered. More details, please refer to GYTA series.

3. Special cable structure can be designed and manufactured on customer’s request.
