Name: KEXINT GJFJV 2-24 Cores Single Mode Multimode Indoor Single Bundle Optical Cable
Brand: 深圳市科信通技术有限公司
SKU: GJFJV
Price: 67.25 USD
Availability: InStock

Home Products Fiber Optic Armoured Cable

KEXINT GJFJV 2-24 Cores Single Mode Multimode Indoor Single Bundle Optical Cable

Product Details:

Place of Origin:	CHINA
Brand Name:	KEXINT
Certification:	CE Iso-9001 Ross UL
Model Number:	GJFJV

Payment & Shipping Terms:

Minimum Order Quantity:	1+km
Price:	67.25+$+km
Packaging Details:	box
Delivery Time:	10
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:	1000+KM+Day

Contact Now

Detailed Product Description

Fiber Type:	Single Mode/multi Mode	Jacket Color:	Customized
Length:	Customized	Outer Sheath:	LSZH /PVC
Construction:	Stranded Loose Tube	Characteristic:	Flame Retardant
Storage Temperature:	-60~+80℃

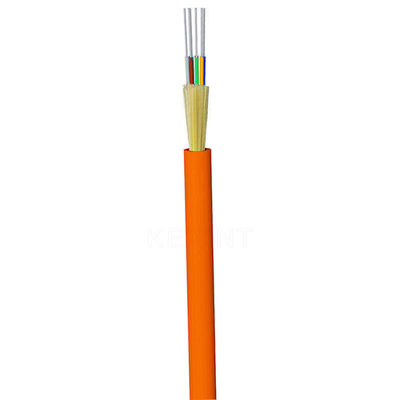

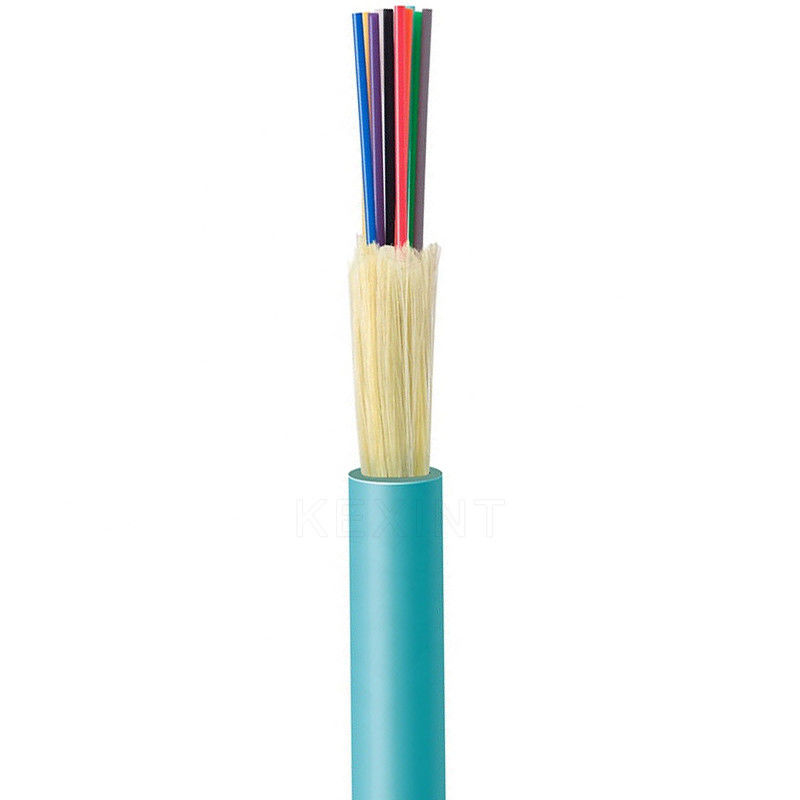

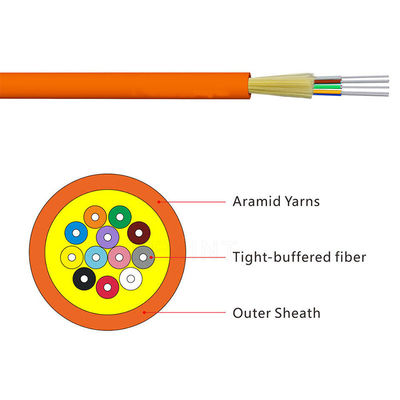

The structure of GJFJV optical cable is to uniformly spread multiple strands of aramid fiber or high-strength glass yarn for reinforcement outside a plurality of ф900μm or ф600μm tight-buffered optical fibers, and then extrude a PVC (or LSZH) outer sheath.


Feature:1. Small outer diameter, light weight, flame retardant, easy to peel,

Low attenuation and high flexibility

Tight-buffered optical fiber cables can be directly connected without transition joint boxes and pigtails, and without cleaning waterproof grease, so the laying cost is low.


Application:
This cable is suitable for indoor wiring.
Suitable for pigtail jumpers and jumpers
Suitable for optical connections of communication equipment and optical instruments
Suitable for floor connection and easy maintenance


Standards: ·GJFJV optical cable refers to YD/T1258.4-2009, ICEA-596, GR-409, IEC794 and other standards; it meets the requirements of UL certification OFNR and OFNP.


Optical cable model:

	MPC-02	MPC-04	MPC-06	MPC-08	MPC-10	MPC-12
Cable Diameter(mm)	4.1±0.25	4.8±0.25	5.1±0.25	6.2±0.25	6.5±0.25	6.8±0.25
Cable Weight(kg/km)	12	20	24	29	32	35
Tight Buffer Fiber Diameter	900±50μm


Optical properties:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850			≥500MHZ·km	≥200MHZ·km
Bandwidth (Class A)	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Specification

item	value
Model Number	GJFJV
Type	Fiber Optic Cable
Place of Origin	China
	Guangdong
Brand Name	KEXINT
Number of Conductors	≥ 10
Fiber type	Single mode/multi mode
Jacket color	Customized
Outer Sheath	LSZH /PVC
Length	Customized
Construction	Stranded Loose Tube
Package	Aramid yarn
Characteristic	Flame retardant
Storage temperature	-60~+80℃
Certification	CE/ROHS/ISO9001
