Name: KEXINT FTTH GJSFJV Indoor Bundled Multi-core Steel Tape Armored Fiber Optical Cable
Brand: 深圳市科信通技术有限公司
SKU: GJSFJV
Price: 124.36 USD
Availability: InStock

Home Products Fiber Optic Armoured Cable

KEXINT FTTH GJSFJV Indoor Bundled Multi-core Steel Tape Armored Fiber Optical Cable

Product Details:

Place of Origin:	CHINA
Brand Name:	KEXINT
Certification:	CE Iso-9001 Ross UL
Model Number:	GJSFJV

Payment & Shipping Terms:

Minimum Order Quantity:	1+km
Price:	124.36+$+km
Packaging Details:	box
Delivery Time:	8
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:	1000+km+Day

Contact Now

Detailed Product Description

Fiber Type:	SM/MM	Outer Sheath:	LSZH /PVC
Jacket Color:	Customized	Length:	Customized
Tensile Strength:	300/750mm	Bending Radius:	20D / 10D Mm
Allowable Pressure:	200/1000 N / 100m	Storage Temperature:	-60~+80℃

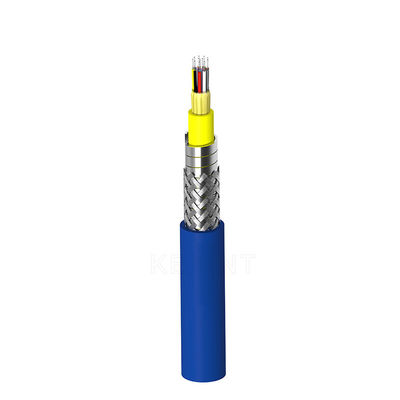

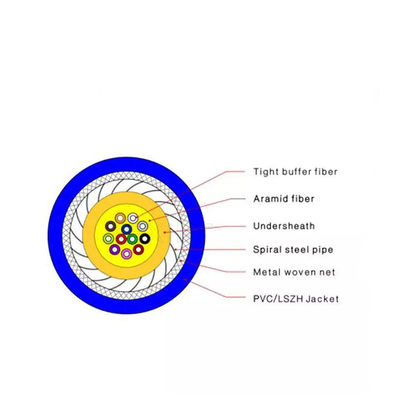

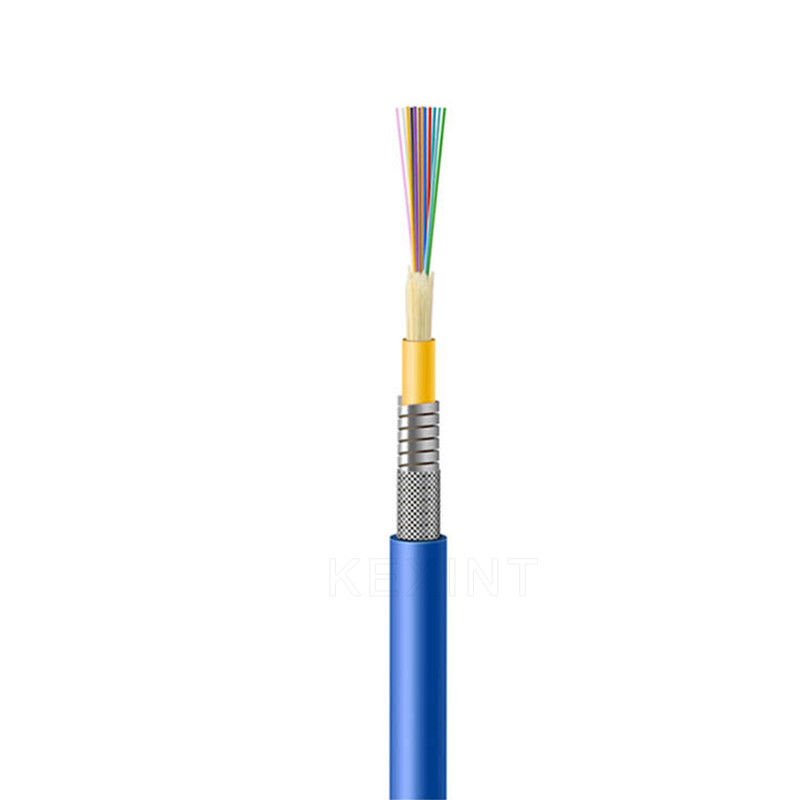

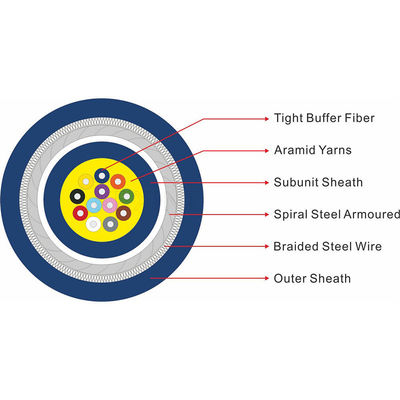

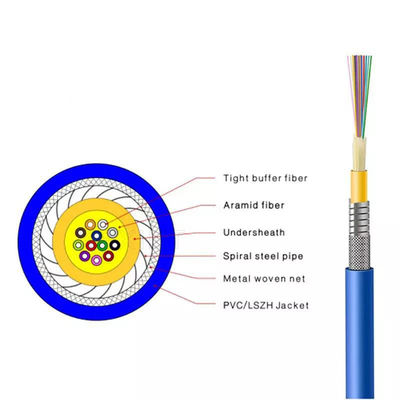

The structure of the optical cable is to twist together a ф900μm or ф600μm tight-buffered optical fiber and multiple strands of aramid fiber, extrude a layer of PVC or LSZH inner sheath on the stranded surface, and wrap a layer of flat stainless steel wire armor outside the inner sheath. The surface is braided with stainless steel wire, and then extruded into a PVC or LSZH outer sheath.

Features:

Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.

Bending radius is small, light weight, soft, flexible, easy to follow.

Flat wire armored to improve the optical cable compression and anti-rat ability.

Has good mechanical and environmental performance.

Flame retardant or non-flame retardant outer jacket to provide good safety protection.

Application:

Various conventional connector products.

Pigtail, jumper.

Optical communication equipment room, optical patch panels, fiber to the desktop and other light even.

Optical connection of optical equipment, instruments, etc.

Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.

Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.

The backbone of the tail cable, access to the equipment inside the building.

Small installation space and occasional wiring.

Specification

item	value
Model Number	GJSFJV
Type	Fiber Optic Cable
Place of Origin	China
Brand Name	KEXINT
Number of Conductors	≥ 10
Fiber Type	SM/MM
Jacket color	Customized
Outer Sheath	LSZH /PVC
Length	Customized
Tensile Strength	300/750mm
Allowable pressure	200/1000 N / 100m
Bending radius	20D / 10D mm
Certification	CE/ROHS/ISO9001
Storage temperature	-60~+80℃
