KEXINT Indoor 48 96 Cores Multicore Bundle Armored Optical Cable GJAFKV Fiber Optic Cable

Product Details:

Place of Origin:	CHINA
Brand Name:	KEXINT
Certification:	CE Iso-9001 Ross UL
Model Number:	GJAFKV

Payment & Shipping Terms:

Minimum Order Quantity:	1+km
Price:	124.36+$+km
Packaging Details:	box
Delivery Time:	10
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:	1000+km+Day

Contact Now

Detailed Product Description

Fiber Count:	48/96 Cores	Fiber Type:	SM/MM
Outer Sheath:	LSZH /PVC	Jacket Color:	Customized
Length:	Customized	Tensile Strength:	300/750mm
Bending Radius:	20D / 10D Mm	Allowable Pressure:	200/1000 N / 100m
Storage Temperature:	-60~+80℃

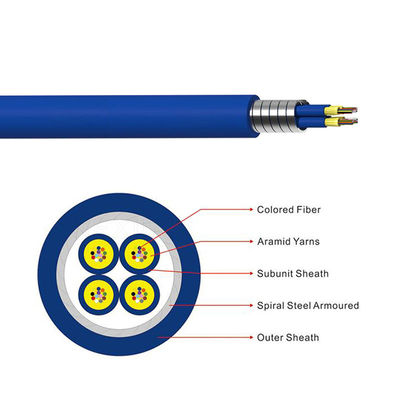

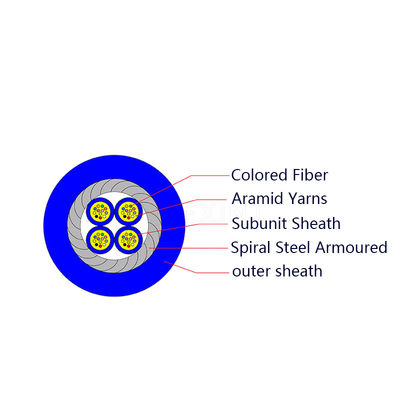

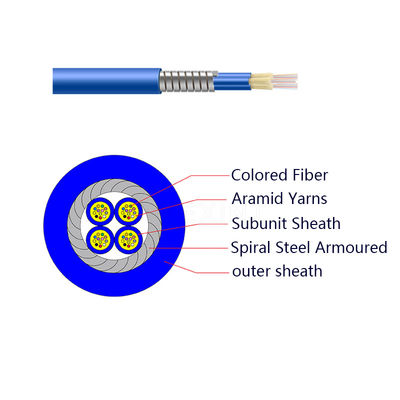

The structure of the optical cable is to put a multi-strand aramid fiber on the surface of the multi-core bundle-shaped mini ф250μm optical fiber for strengthening, and extrude a layer of PVC or LSZH inner sheath on the stranded surface as a subunit, and the multi-core bundle-shaped subunit is twisted into a circle. A layer of steel wire armor is wound on its outer layer, a small amount of aramid fiber is applied outside the steel wire armor, and then PVC or LSZH outer sheath is extruded

Features:

Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.

Bending radius is small, light weight, soft, flexible, easy to follow.

Flat wire armored to improve the optical cable compression and anti-rat ability.

Has good mechanical and environmental performance.

Flame retardant or non-flame retardant outer jacket to provide good safety protection.

Application:

Various conventional connector products.

Pigtail, jumper.

Optical communication equipment room, optical patch panels, fiber to the desktop and other light even.

Optical connection of optical equipment, instruments, etc.

Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.

Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.

The backbone of the tail cable, access to the equipment inside the building.

Small installation space and occasional wiring.

Specification

item	value
Model Number	GJAFKV
Type	Fiber Optic Cable
Place of Origin	China
	Guangdong
Brand Name	KEXINT
Number of Conductors	≥ 10
Fiber Count	48/96 cores
Fiber Type	SM/MM
Jacket color	Customized
Outer Sheath	LSZH /PVC
Length	Customized
Tensile Strength	300/750mm
Allowable pressure	200/1000 N / 100m
Bending radius	20D / 10D mm
Certification	CE/ROHS/ISO9001
Storage temperature	-60~+80℃
