KEXINT GJASFKV Indoor Armoured Fiber Optic Cables 72 144 Core Indoor Multi-Core Armored Cable

Brand Name:	KEXINT
Model Number:	GJASFKV
MOQ:	1+km
Price:	124.36+$+km
Packaging Details:	box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE Iso-9001 Ross UL

Fiber Count:

72 144

Fiber Type:

SM/MM

Jacket Color:

Customized

Outer Sheath:

LSZH /PVC

Length:

Customized

Tensile Strength:

300/750mm

Bending Radius:

20D / 10D Mm

Allowable Pressure:

200/1000 N / 100m

Storage Temperature:

-60~+80℃

Supply Ability:

1000+km+Day

Product Description

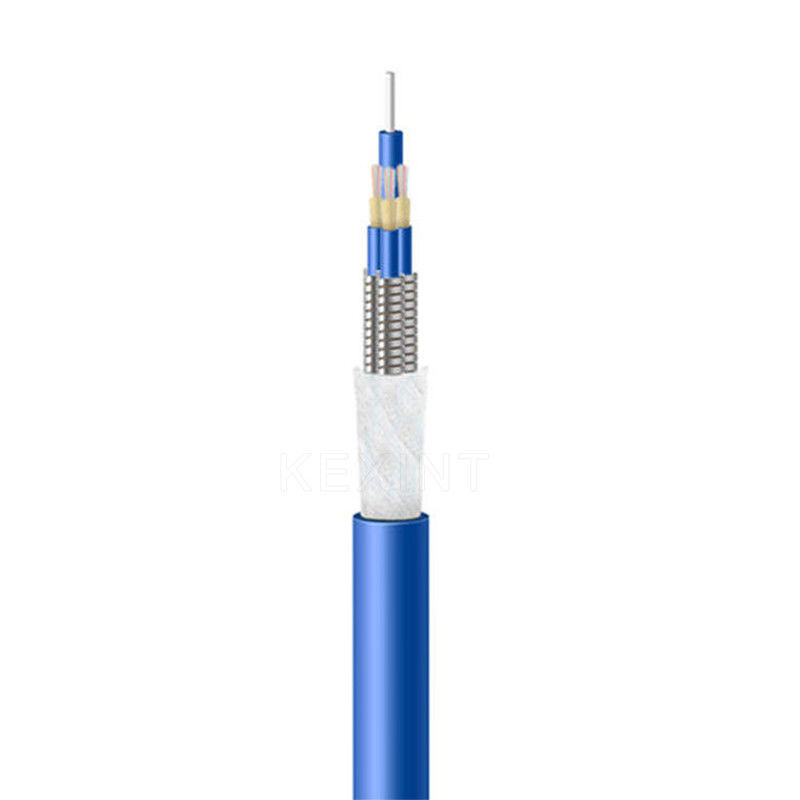

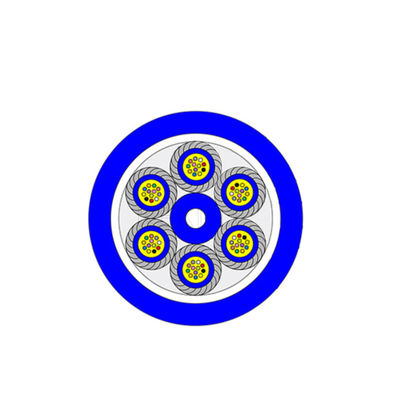

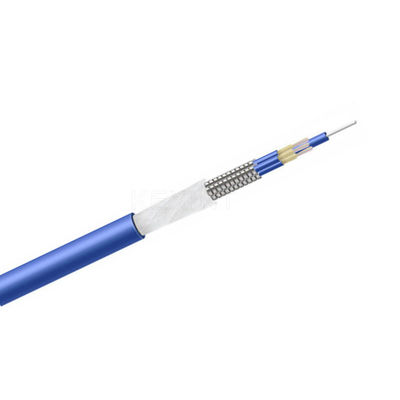

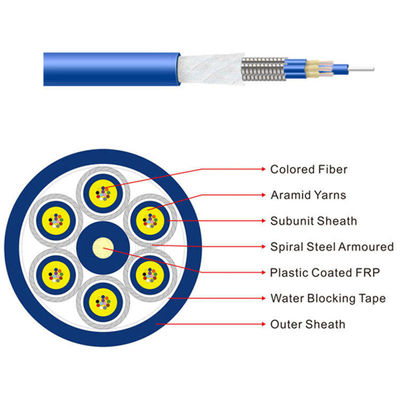

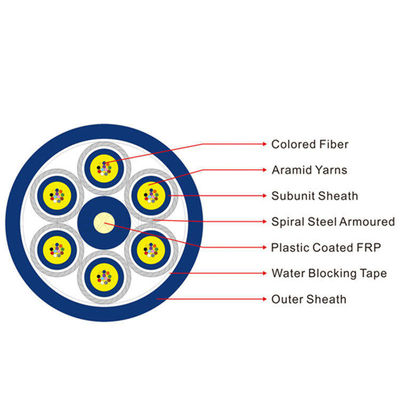

The structure of GJASFKV optical cable is to put multi-strand aramid fibers on the surface of multi-core bundled mini ф250μm optical fiber for reinforcement, extrude a layer of PVC or LSZH inner sheath on the stranded surface as a subunit, and wrap a layer of steel wire armor on the outer sheath of the subunit , the subunit is twisted into a circle with the non-metallic reinforcement FRP (and possible cushion), a layer of dry water-blocking tape is wrapped between the cable core and the sheath, and finally PVC (or LSZH) sheath is extruded cabled.

Features:

Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.
Bending radius is small, light weight, soft, flexible, easy to follow.

Flat wire armored to improve the optical cable compression and anti-rat ability.

Has good mechanical and environmental performance.

Flame retardant or non-flame retardant outer jacket to provide good safety protection.

Application:

Various conventional connector products.

Pigtail, jumper.

Optical communication equipment room, optical patch panels, fiber to the desktop and other light even.

Optical connection of optical equipment, instruments, etc.

Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.

Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.

The backbone of the tail cable, access to the equipment inside the building.

Small installation space and occasional wiring.

Specification

item	value
Model Number	GJASFKV
Type	Indoor Armoured Fiber Optic Cable
Place of Origin	China
	Guangdong
Brand Name	KEXINT
Number of Conductors	≥ 10
Fiber Count	72 144
Fiber Type	SM/MM
Jacket color	Customized
Outer Sheath	LSZH /PVC
Length	Customized
Tensile Strength	300/750mm
Allowable pressure	200/1000 N / 100m
Bending radius	20D / 10D mm
Certification	CE/ROHS/ISO9001
Storage temperature	-60~+80℃
