KEXINT Armoured Anti Rodent Indoor Fiber Optical Cable GJSFJV One Tube With 2 Cores

Brand Name:	KEXINT
Model Number:	GJSFJV
MOQ:	1+KM
Price:	124.36+$+km
Packaging Details:	box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE Iso-9001 Ross UL

Cable Diameter:

2.0mm/3.0mm/5.0mm

Outer Sheath:

PVC/LSZH

Fiber Type:

SM/MM

Jacket Color:

Blue/Grey/Yellow/Orange Or Customized

Strength Member:

Aramid Yarn

Length:

Customized

Fiber Core:

2 Cores

Storage Temperature:

-60~+80℃

Supply Ability:

1000+km+Day

Highlight:

Armoured Indoor Fiber Optical Cable

Anti Rodent Indoor Fiber Optical Cable

GJSFJV armored fiber optic cable

Product Description

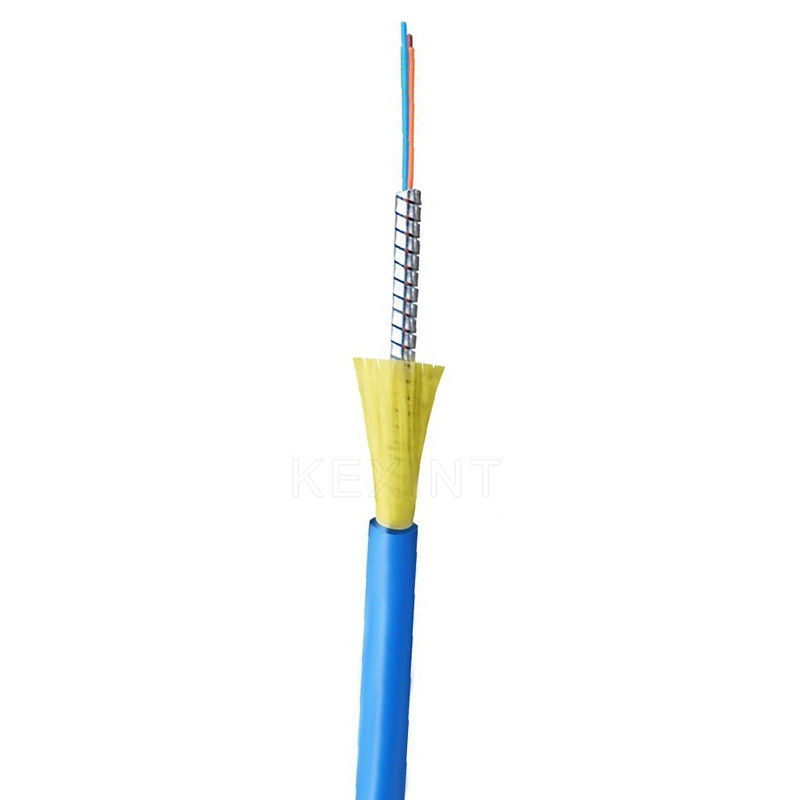

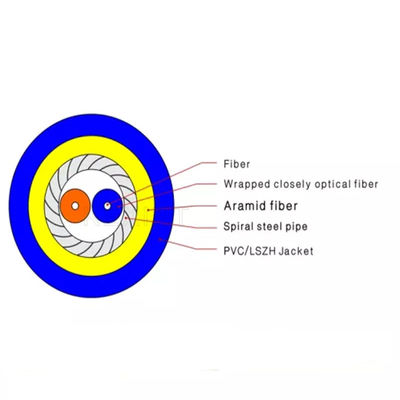

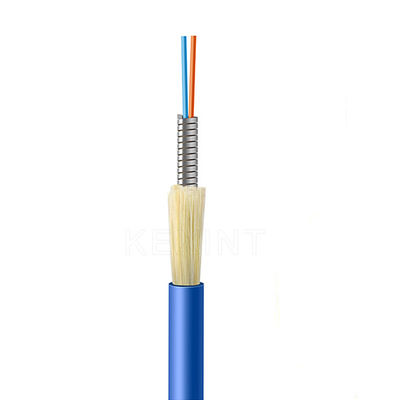

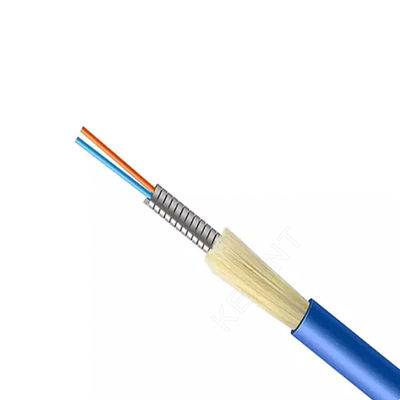

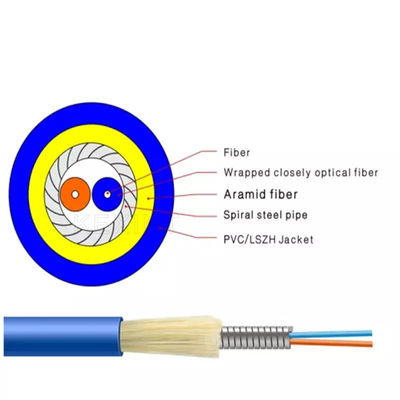

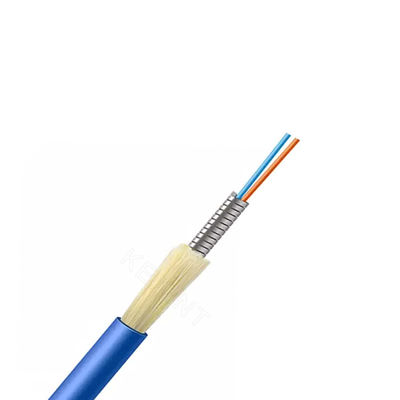

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC or LSZH sheath.

Features:
*Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and
anti-rodent.
*High strength aramid yarn,high performance outer sheath.
*Light weight,flexibility,and friendly installation.
*Good mechanical and environmental performance.
*Flame retardant outer sheath provide good safety.

Can be required:Fiber sort/Fiber brand/Sheath color/The fiber and tube color/Cable packing length/Marking word/Other

Application:

·All kinds of connector

·Fiber optic pigtails, patch cords.

·Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc

·Fiber optic equipment and instrument

·Indoor cabling,building cabling,LAN, etc

·Long distance, outdoor/indoor cabling, trunking,etc

·Backbone network to the equipment in the building

·Small installation space cabling

Standards:

·GJSFJBV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for

OFNR, OFNP.


Specification:

Cable Type	Fiber Count	Tight Diameter mm	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GJSFJBV	2	0.6	2.0*4.1	30	300/750	200/1000	10D/20D
GJSFJBV	2	0.6	2.8*5.7	35	300/750	200/1000	10D/20D
GJFJBV	2	0.9	3.0*6.1	43	300/750	200/1000	10D/20D
