Name: KEXINT FTTH IP68 Waterproof Fiber Optic Fast Connector MINI SC Field Installable
Brand: 深圳市科信通技术有限公司
SKU: Huawei Corning IP68 Waterproof
Price: 1.32 USD
Availability: InStock

Home Products Fiber Optic Quick Connector

KEXINT FTTH IP68 Waterproof Fiber Optic Fast Connector MINI SC Field Installable

Product Details:

Place of Origin:	CHINA
Brand Name:	KEXINT
Certification:	CE Iso-9001 Ross UL
Model Number:	Huawei Corning IP68 Waterproof

Payment & Shipping Terms:

Minimum Order Quantity:	100+pcs
Price:	1.32+$+piece
Packaging Details:	box
Delivery Time:	8
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:	1000+PCS+Day

Contact Now

Detailed Product Description

Waterproof:	IP68	Color:	Black
Jacket Of Cable:	LSZH;PVC Or TPU	Return Loss:	≥55dB
Inserion Loss:	≤0.3dB	Connector Type:	SC/APC SC/UPC
Temperature:	-40℃~+85℃
Highlight:	Field Installable Fiber Optic Fast Connector , MINI SC Fiber Optic Fast Connector , Waterproof ftth fast connector

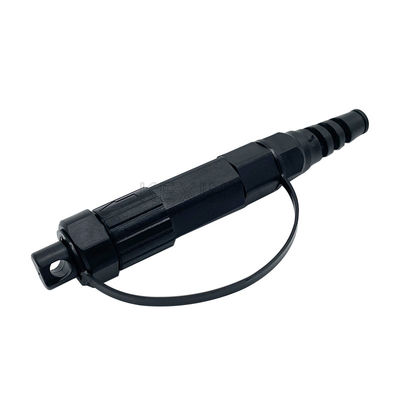

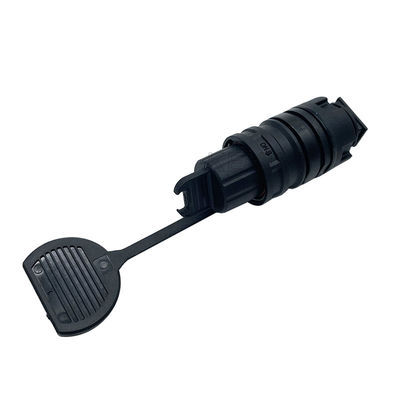

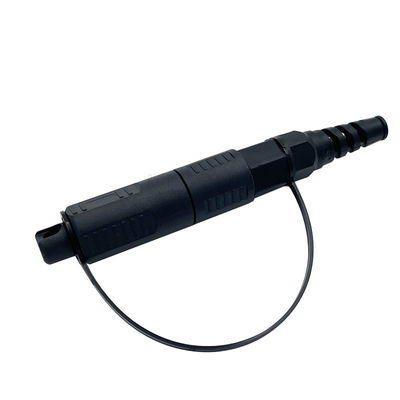

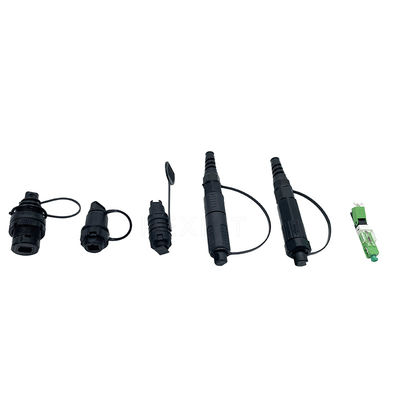

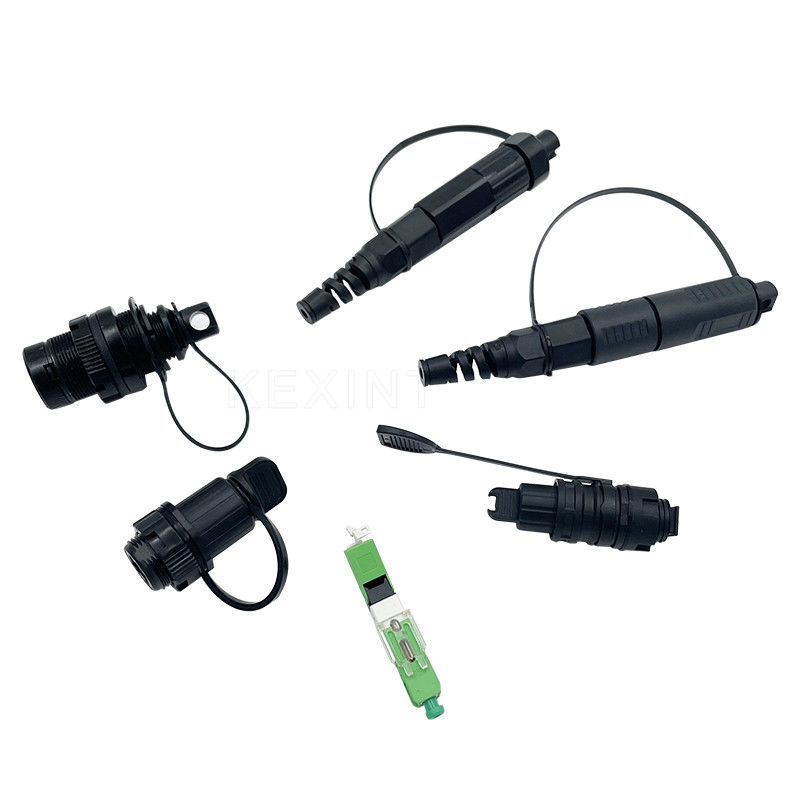

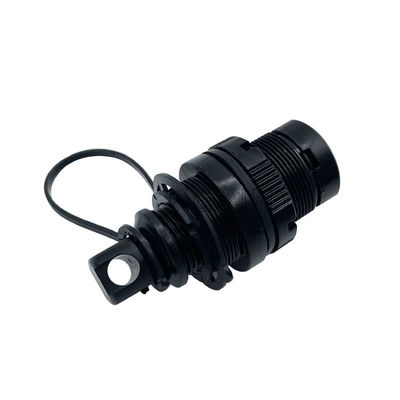

FTTH IP68 Waterproof Fast Connector MINI-SC Field Installable Reinforced Connector MINI-SC waterproof connector is a small, high-water resistant SC single-core waterproof connector. The built-in SC connector inner core better reduces the volume of the waterproof connector, adopts a special plastic shell that is resistant to high temperature and low temperature, acid and alkali corrosion, and is resistant to ultraviolet light, and assists in waterproof rubber pads. Its sealing waterproof performance can reach IP68 level. The unique spiral bayonet design is compatible with the fiber optic waterproof port port of Huawei equipment. For 3.0-5 .0 mm single core circular cable or FTTH leather fiber into the home cable.

Waterproof Fast connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.
Product Features:
Compact size,easy to operate,durable.

Easy connection to hardended adapters on terminals or closures.

Reduce welding,connect directly to achieve interconnection.

Spiral clamping mechanism ensures long-term reliable connection.

Guide mechanism,can be blinded with one hand,simple and quick,connect and install.

Accepts 2.0x3.0mm,3.0mm ,5.0mm Cable Diameters Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.

Applications:

Fiber optic communications in harsh outdoor environments.

Outdoor communications equipment connection.

Waterproof fiber equipment SC port.

Remote wireless base station.

FTTX wiring projiect.


Product parameters:

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃
