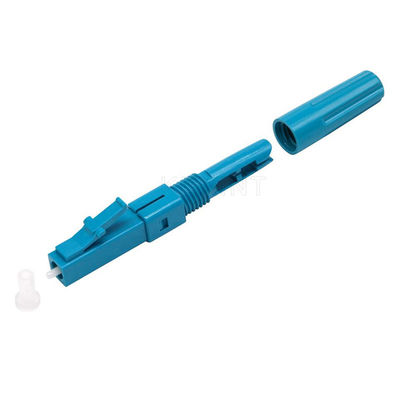

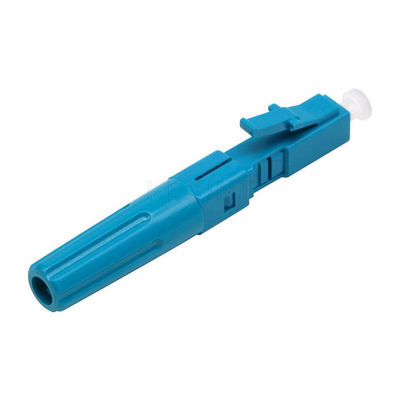

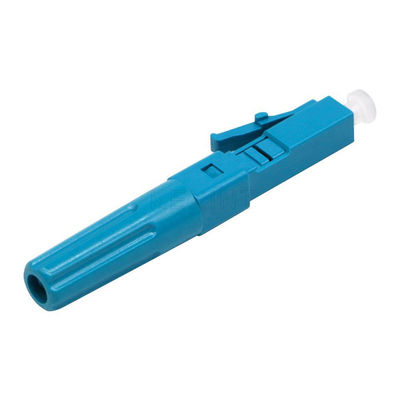

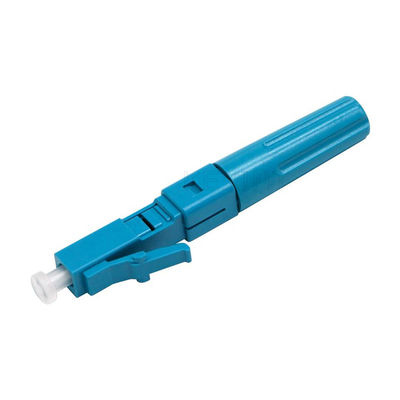

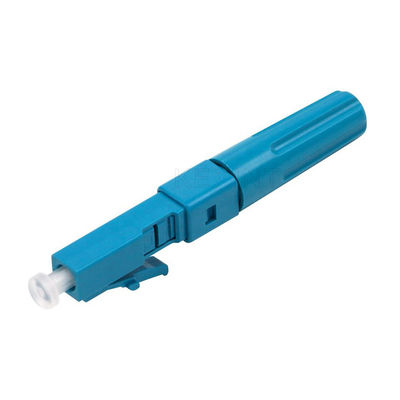

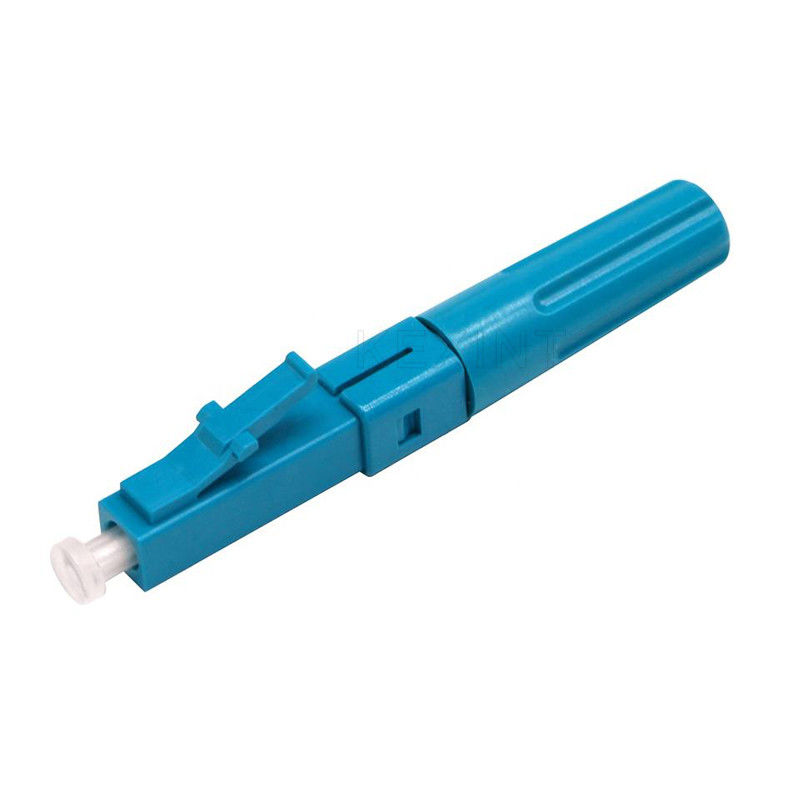

KEXINT FTTH Fiber Optical Fast Connector LC UPC 3.0mm Single Mode

Brand Name:	KEXINT
Model Number:	KXT-K16
MOQ:	100+pcs
Price:	0.23+$+piece
Packaging Details:	box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CE Iso-9001 Ross UL

Color:

Blue

Insert Loss:

Max.≤0.5dB, Typical≤0.3dB

Return Loss:

UPC Max ≤-40dB, Typical≤-45dB

Fiber Mode:

Durability:

1000 Times

Application:

FTTH FTTB FTTX Network

Operating Temperature:

-25~70

Supply Ability:

100000+PCS+Day

Highlight:

FTTH Fiber Optical Fast Connector

LC UPC Fiber Optical Fast Connector

LC UPC Fast Connector 3.0mm

Product Description

Field Installable Connector (FIC, also called Fast Connector) is a perfect solution for field termination and is widely used in the FTTH market now. FIC is pre-produced in the factory, so there is no need to use epoxy, polishing, and crimping in the field. This makes fiber terminations fast, easy and reliable.
LC Fiber quick connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove.. Also, transparent design of the side cover which allows visual inspection. It could be applied to drop cable and indoor cable

Advantage:

Excellent Optical Performance	Grade S (Standard) Insertion Loss ≤0.5dB Return Loss ≥50dB Grade P (Premium) Insertion Loss ≤0.3dB Return Loss ≥60dB
Class A End Face	Optical fiber core without defects at 400x inspection.
Extraordinary Stability	Repeatability ≤ 0.1dB , Interchangeability ≤ 0.2dB , Reusability ≥ 5 times
Easy to use	Termination time ≤ 2 minutes 1st time assembling pass rate ≥ 95%


Features:

-Reliable installation quality and effficiency fiber optical fast connector.

-Adopts new unique structure design for pressure welding parts.No need injecting,grinding and material when installation..

-With embedded optical fiber structure.

-Reusable,and scene operation is simple.

-Easy to carry.

-Accurate mechanical dimensions.

-Low insertion loss

-High return loss

-In line with the IEC6174-4

-All materials meet the RoHs.

Application:

-Used to open the FTTH fiber terminal end;

-In the box,cabinet,such as wiring into the box;

-Re-covering and maintenance when fiber broken;

-LAN,WAN,DATA and VIDEO transmission;

-The construction of fiber end user access and maintenance;

-Optical fiber access of mobile base station.
