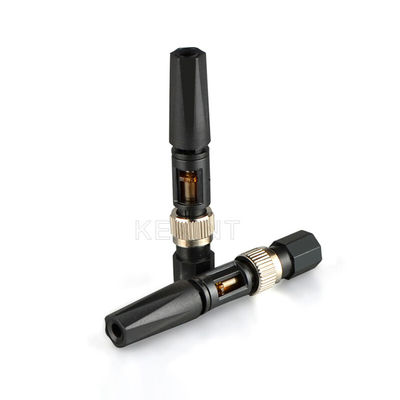

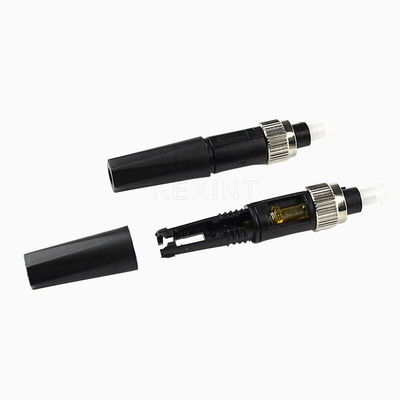

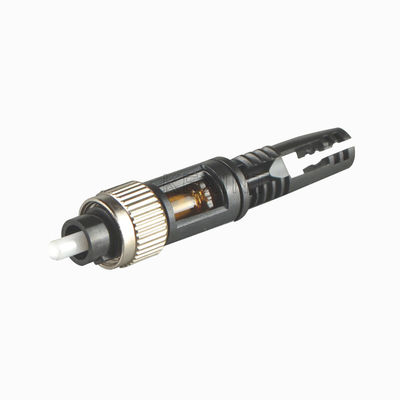

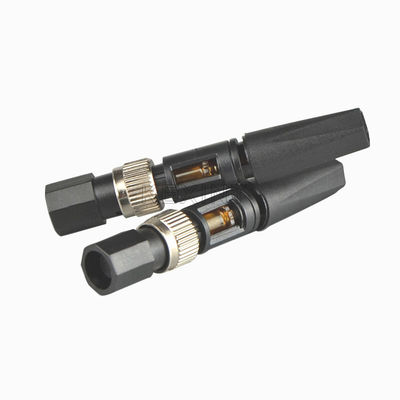

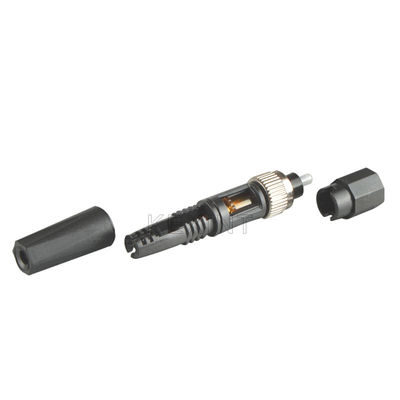

Name: KEXINT Pre Embedded Fiber Optic Quick Connector FTTH SM Field Assembly Fast Connector
Brand: 深圳市科信通技术有限公司
SKU: KXT-K20
Price: 0.28 USD
Availability: InStock

Home Products Fiber Optic Quick Connector

KEXINT Pre Embedded Fiber Optic Quick Connector FTTH SM Field Assembly Fast Connector

Product Details:

Place of Origin:	Guangdong
Brand Name:	KEXINT
Certification:	CE Iso-9001 Ross UL
Model Number:	KXT-K20

Payment & Shipping Terms:

Minimum Order Quantity:	100+pcs
Price:	0.28+$+piece
Packaging Details:	box
Delivery Time:	8
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:	10000+PCS+Day

Contact Now

Detailed Product Description

Length:	41.5MM	Inertion Loss:	<0.2db
Return Loss:	>55db	Tensile Strength:	> 50N
Durability Times:	>1000	Fiber Mode:	SM
Applicable Fibers:	Drop Cable Or .Indoor Cable	Operating Temperature:	-25~70
Highlight:	FTTH SM Fiber Optic Quick Connector , Pre Embedded Fiber Optic Quick Connector , Field Assembly Fiber Optic Fast Connector

Quick Assembly FC connector can provide quick and easy terminations of fibers in the field, and options are available for 900 micron and 250 micron. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens, with features of high installation quality, high success rate and high reliability.

Feature:

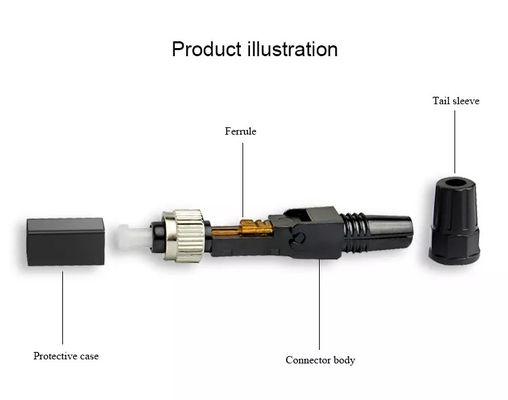

Factory-installed fiber stub.
No epoxy and polishing required

Fast connecting and repeat, No special tools needed when installed.

Allows up to three re-termination result.

Easily installed, quick and easy fiber termination in the field.

Only 30 seconds needed to learn the process of installation and making.

Cost effective performance

Made on-site without splicing connectors.

Eliminates cable excess length and pigtail splice storage.

Intalled and maked repeatedly thus avoiding loss.

Application:

Patch panels

Distribution frames

Maintenance or emergency restoration of fiber networks

FTTH Outlets

Connection at the desk for LAN environments

Fiber Optic Patch Cord & Pigtail

Telecommunication Devices

Data Communications Networks

Optical Fiber LAN and Access Network

Industry and Military Applications

Item	FC/PC Fiber Optic Assembly Fast Connector
	SM			MM
	PC	UPC	APC	PC
Insertion Loss (Typical)	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB
Return Loss	≥45dB	≥50dB	≥60dB	≥30dB
Application	0.9mm; 2mm, 3mm, 2mm*3mm drop cable or indoor cable
Operation time	≤40s
Fastening strength of naked fiber	≥5N
Durability	≥ 1000 times
High &Low Temperature Cicle Test (168Hr)	ΔIL≤0.3dB
High Termerature & Humidity Lab Experiment (96 Hr)	ΔIL≤0.3dB
Drop Eeperiment( 8 times from 1.5m high to cement floor)	ΔIL≤0.3dB
Operating Temperature	-40~75°C
Storage Temperature	-45~85°C
