Fiber Optic Quick Connector

Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss 50MM Length

All Category

Fiber Optic Quick Connector

Mr. Steve

steve@kexint.com

86-13509645699

Contact Now

Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss 50MM Length

Brand Name:	KEXINT
Model Number:	FTTH LC/APC-055
MOQ:	500
Price:	1.15$
Packaging Details:	carton ， Inner box ：1813.511cm ； Outer box： 483332cm
Payment Terms:	T/T, D/A, L/C, D/P, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

ISO9001-2008

Fiber Type:

Single Mode LC Apc Fiber Connector

Length:

50mm

Connector Type:

LC/APC

Insertion Loss:

0.3dB

Colour:

Green

Materlar:

SiO2

Diameter:

0.9mm, 2.0mm, 3.0mm, Others

Tensile Resistance:

10N

Supply Ability:

5000+pcs+1day

Highlight:

optical cable joiner

quick connect fiber optic connectors

Product Description

Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss 50MM

LC Fast Connector make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.
Mechanical Field-Mountable Fiber Optic Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector superior ceramic ferrule and aluminum alloy V-groove.

Application:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.15dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR

Parameters	Specifications
Connector Type	SC/LC/FC/ST
Dimension	60mm
Cable Diameters	0.9/2.0/3.0mm
Fiber Mode	SM/MM
Grinding end-face	UPC/APC
	UPC	APC
Insertion Loss	≤0.5dB	≤0.5dB
	UPC	APC
Return Loss	≥45dB	≥50dB
Tension Test	≥100N
Operating Temperature	-40℃~+75℃

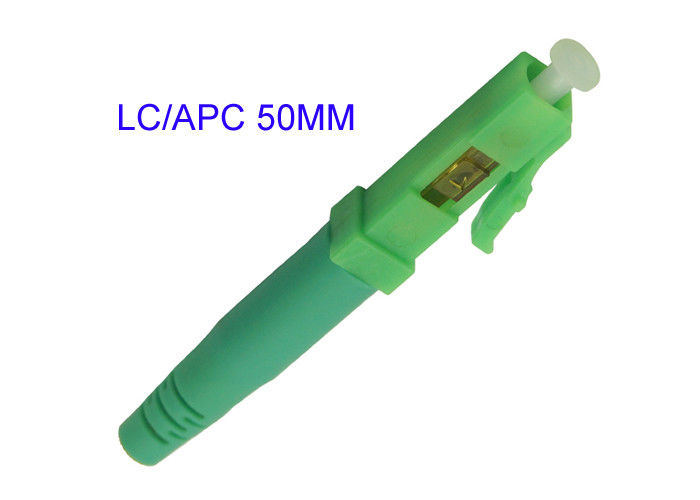

Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss 50MM Length 0

Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss 50MM Length 1

Our advantages:
a.Good reply: Your inquiry related to our products or price will be replied within 24 hours.

b.OEM&ODM: We can help you to design or put your logo and company name into products.

c.Remote Technical support&Full Technical Document

d.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

e.English software, English Indicator

f.Professional, Very competitive price

g.Large Stock, Fast Delivery

h.Quality Assurance
