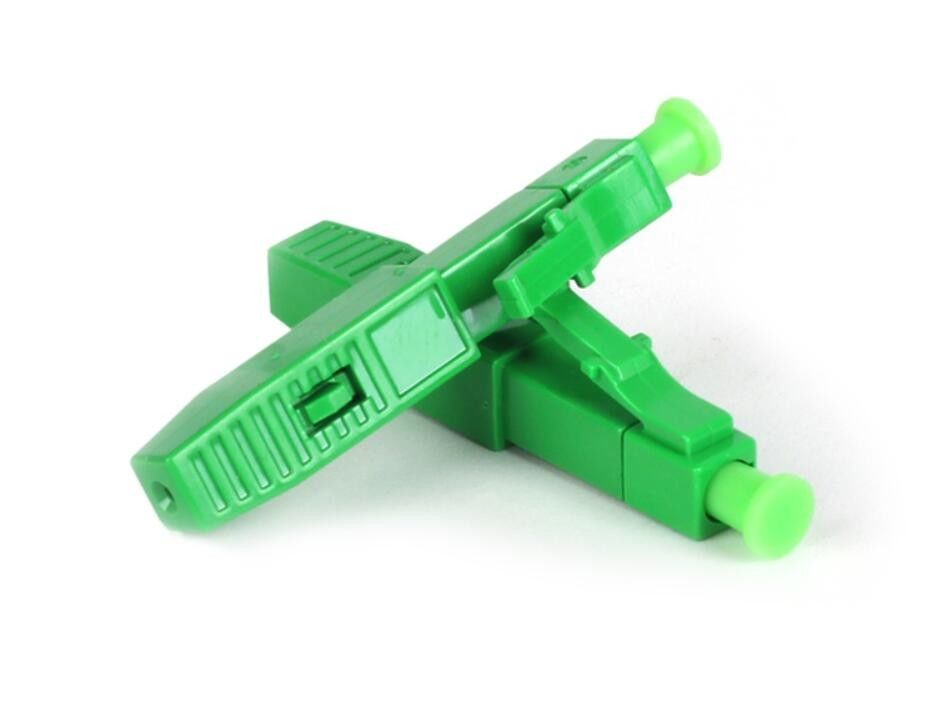

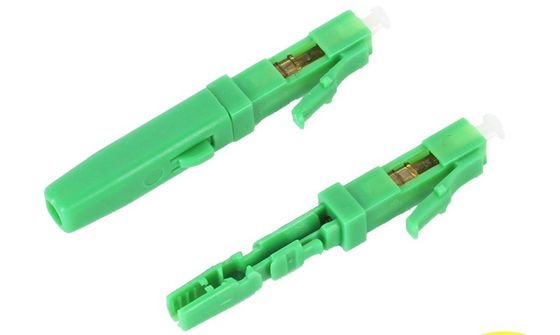

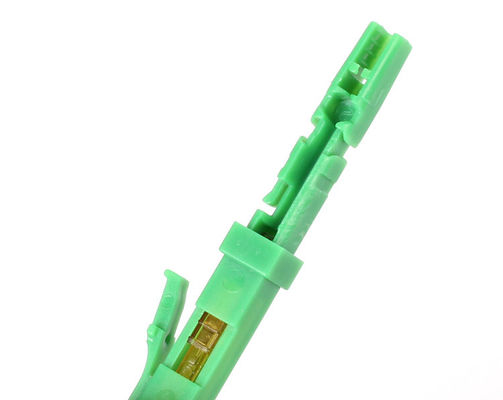

Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss

Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss

  • Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss
  • Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss
  • Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss
  • Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss
Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss
Product Details:
Place of Origin: SHENZHEN
Brand Name: KEXINT
Certification: ISO9001-2008
Model Number: FTTH LC/APC-055
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton ， Inner box ：18*13.5*11cm ； Outer box： 48*33*32cm
Delivery Time: 8
Payment Terms: T/T
Supply Ability: 5000+pcs+1day
Contact Now
Detailed Product Description
Fiber Type: Single Mode LC Apc Fiber Connector Length: 50/55/60/65 Mm
Connector Type: LC/APC Insertion Loss: 0.3dB
Colour: Green Materlar: SiO2
Diameter: 0.9mm, 2.0mm, 3.0mm, Others Tensile Resistance: 10N
Highlight:

optical cable adapter

,

optical cable joiner

Quick Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss


Application:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.15dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR

Parameters Specifications
Connector Type SC/LC/FC/ST
Dimension 60mm
Cable Diameters 0.9/2.0/3.0mm
Fiber Mode SM/MM
Grinding end-face UPC/APC
  UPC APC
Insertion Loss ≤0.5dB ≤0.5dB
  UPC APC
Return Loss ≥45dB ≥50dB
Tension Test ≥100N
Operating Temperature -40℃~+75℃



Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss 0

Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss 1Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss 2Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss 3

Our advantages:
1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.

2.OEM&ODM: We can help you to design or put your logo and company name into products.

3.Remote Technical support&Full Technical Document

4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

5.English software, English Indicator

6.Professional, Very competitive price

7.Large Stock, Fast Delivery

8.Quality Assurance

Fast Connect LC APC Fiber Optic Quick Connector Adapter Low Insert Loss 4
