Single Mode Fast Connector SC AP 0.9 2.0 3.0 SM 55 60mm Insertion 0.3dB Loss

Brand Name:	KEXINT
Model Number:	FTTH FC/UPC-055
MOQ:	Negotiation
Price:	Negotiation
Packaging Details:	Single package size: 15X12X8 cm Single gross weight: 0.5 KG Package Type: 100 pcs in 1 box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

ISO9001-2008

Fiber Type:

Single Mode

Length:

50/55/60/65 Mm

Connector Type:

SC/APC

Insertion Loss:

0.3dB

Colour:

Blue

Materlar:

SiO2

Diameter:

0.9mm, 2.0mm, 3.0mm, Others

Tensile Resistance:

10N

Supply Ability:

5000+pcs+1day

Highlight:

optical cable joiner

quick connect fiber optic connectors

Product Description

Single Mode Fast Connector SC AP 0.9 2.0 3.0 SM 55 60mm Insertion 0.3dB Loss

Parameters	Specifications
Connector Type	SC/LC/FC/ST
Dimension	60mm
Cable Diameters	0.9/2.0/3.0mm
Fiber Mode	SM/MM
Grinding end-face	UPC/APC
	UPC	APC
Insertion Loss	≤0.5dB	≤0.5dB
	UPC	APC
Return Loss	≥45dB	≥50dB
Tension Test	≥100N
Operating Temperature	-40℃~+75℃

Features:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.3dB Max 0.5dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-CORE

Application:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.15dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR

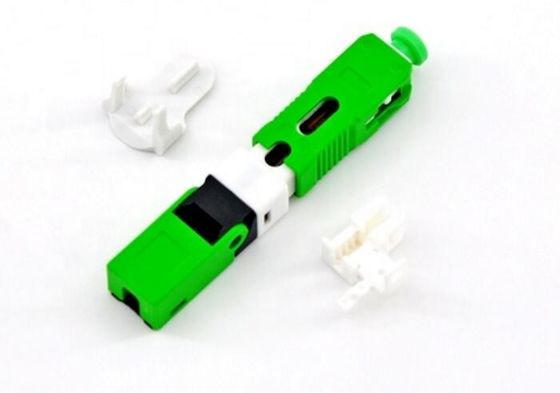

Single Mode Fast Connector SC AP 0.9 2.0 3.0 SM 55 60mm Insertion 0.3dB Loss 0

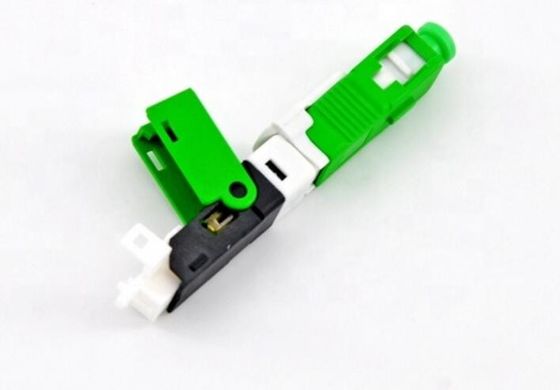

Single Mode Fast Connector SC AP 0.9 2.0 3.0 SM 55 60mm Insertion 0.3dB Loss 1

Our advantages:
1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.

2.OEM&ODM: We can help you to design or put your logo and company name into products.

3.Remote Technical support&Full Technical Document

4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

5.English software, English Indicator

6.Professional, Very competitive price

7.Large Stock, Fast Delivery

8.Quality Assurance

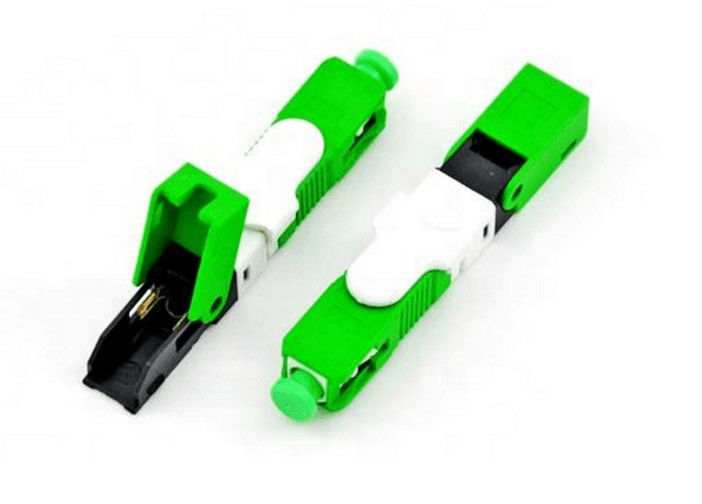

Single Mode Fast Connector SC AP 0.9 2.0 3.0 SM 55 60mm Insertion 0.3dB Loss 4
