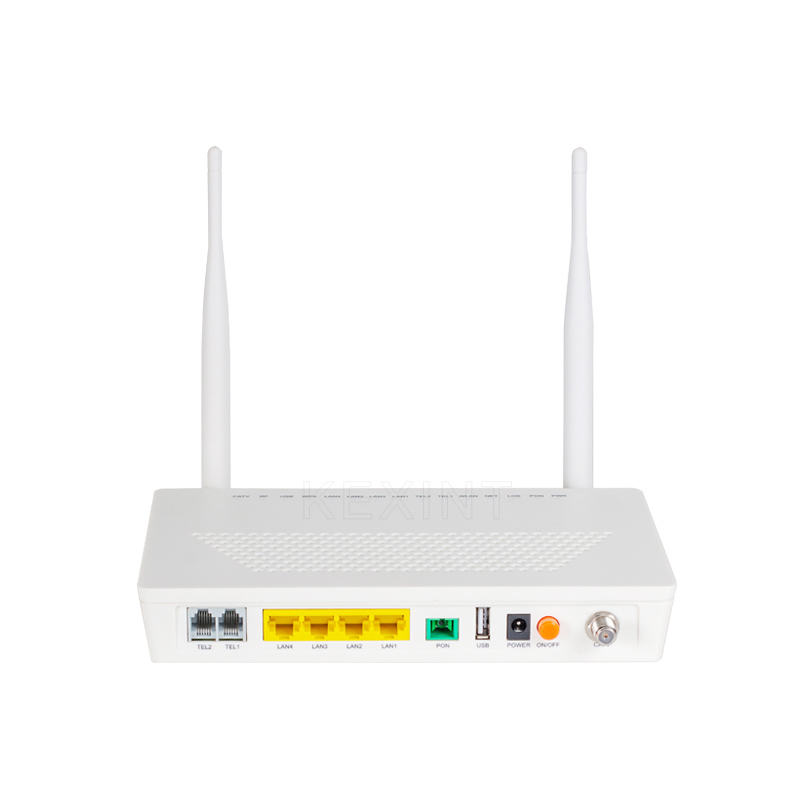

COMELINK English software ONU 4GE CATV WIFI SERIES GPON ONT

Brand Name:	Comelink
Model Number:	G5C
MOQ:	100 PCS
Price:	USD 39.25 PCE
Packaging Details:	Carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ROHS/ISO9001/CE

Application:

FTTH FTTB FTTX Network

External Power Supply:

DC 12V/1A

Weight:

0.4kg

Downstream:

2.4Gbps

WLAN:

1GE Port 3 FE Port

Applicable Fibers:

SM MM G655

Button:

Power

Dimensions:

180*130*50mm

Supply Ability:

500+PCS+per week

Product Description

GPON ONT/HGU is designed for fulfilling FTTH (Fiber To The Home) and triple play service demand of fixed network operators.
The box is based on the mature Gigabit GPON technology, which has high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2&3 and high quality VoIP as well.

It is highly reliable and easy to maintain, with guaranteed QOS for different service. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom.

Feature:

*Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.
*Integrated OMCI and TR069 remote configuration and maintenance function.
*Support rich QinQ VLAN, DHCP Server/Relay and IGMP/MLD snooping multicast feature.
*Support fiber transceiver diagnostic monitoring, fiber transmitter disable remotely.
*Fully compatibility with OLT based on Broadcom chipset etc.
*Support 802.11n WiFi (2T2R) function.
*Support NAT, Firewall function.
*Support IPv4 and IPv6 dual stack.
*Integrated line testing compliant with GR-909 on POTS.
*The WAN port supports bridge, router and bridge/router mixed mode.

OUR ONU SUPPORT:
Support rich QinQ VLAN, DHCP Server/Relay and IGMP/MLD snooping multicast feature. Support fiber transceiver diagnostic monitoring, fiber transmitter disable remotely. Fully compatibility with OLT based on Broadcom chipset etc.

Optical properties:
support wavelength division multiplexing technology, single fiber dual wave bidirectional transmission
interface type: SC / APC			maximum spectral ratio: 1:128
rate: uplink 1.25gbps, downlink 2.5Gbps			receiving wavelength: 1490nm
transmission wavelength: 1310nm			output optical power: - 1 ~ + 4dbm
receiving sensitivity: < - 27dBm			The longest distance between OLT and ONU is 20km
power supply: 12V 1A			Humidity: 10 ~ 90% non condensing
Operating temperature: 0 ° ~ 40 ℃			Storage temperature: - 40 ° ~ 70 °

COMELINK English software ONU 4GE CATV WIFI SERIES GPON ONT 0

COMELINK English software ONU 4GE CATV WIFI SERIES GPON ONT 1
