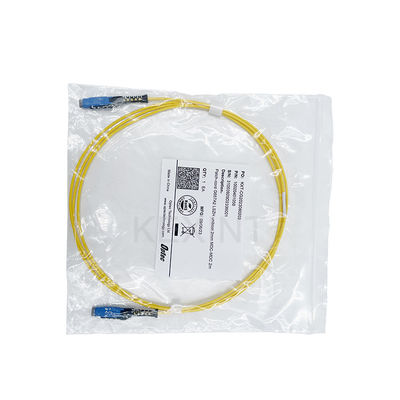

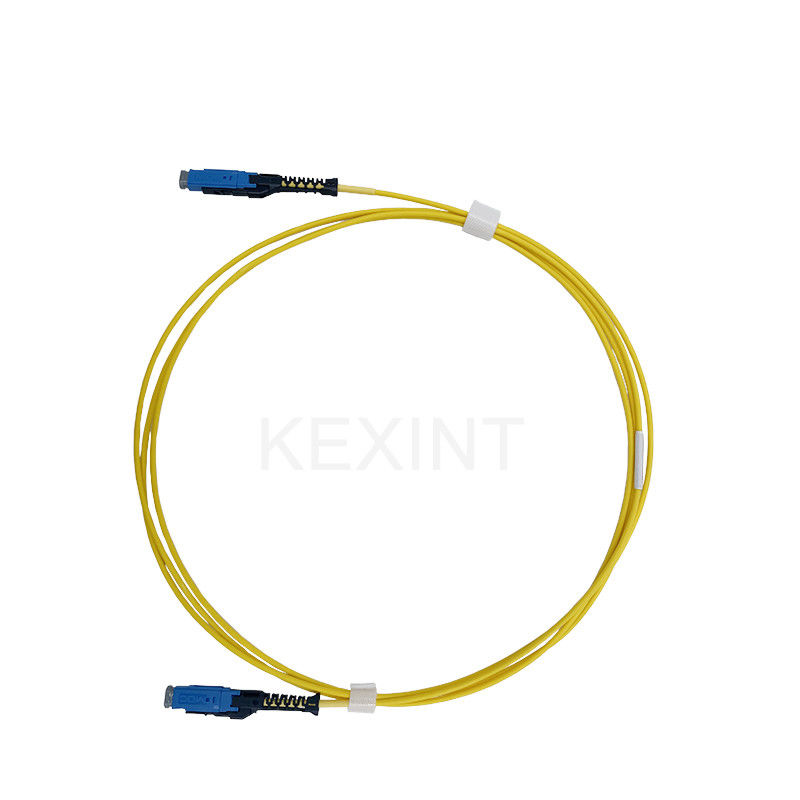

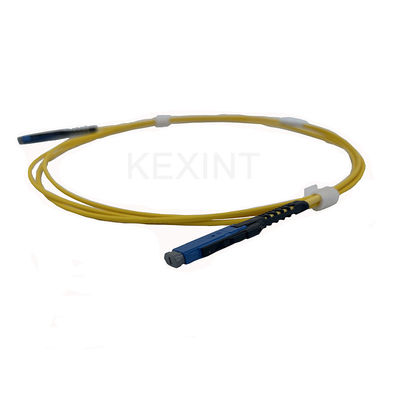

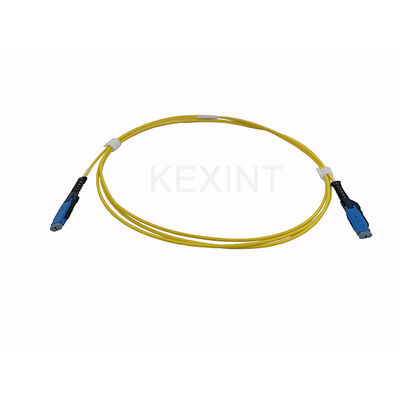

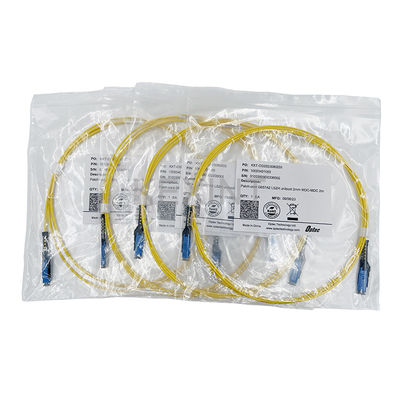

Uniboot 2.0mm 2 Meter Single Mode Patch Cables G657A2 LSZH MDC-MDC / UPC

Product Details:

Place of Origin:	CHINA
Brand Name:	KEXINT
Certification:	CE/ROHS/ISO9001
Model Number:	SM 2m MDC/UPC-MDC/UPC

Payment & Shipping Terms:

Minimum Order Quantity:	100+ pcs
Price:	dollars+23.21+pcs
Packaging Details:	cartoon
Delivery Time:	8
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000+pcs+day

Contact Now

Detailed Product Description

Connector Type:	MDC/UPC	Fiber Type:	SM
Single-Mode Fiber:	G657a2	Color:	Yellow
Length:	2 M	Diameter:	2.0mm
Sheath Material:	LSZH
Highlight:	kexint , 2.0mm single mode patch cables , 2 meter single mode patch cables

The MDC patch cord uses US CONEC's ELiMEN™ MDC connector, which is a very small form factor (VSFF) duplex optical connector designed to terminate multi-mode and single-mode optical cables with a diameter of less than 2.0mm. The MDC connector is manufactured using 1.25mm ferrule technology and meets IEC61753-1 Class B insertion loss requirements.

MDC trunk multimode cable assemblies faciliate rapid deployment of high density backbone cabling in data centers and other high fiber environment , reducing network installation or reconfiguration time and cost , they are used to interconnect cassettes,plane or fan outs , It offered in fiber types in standard 8/12/24/48 cores version using a compact and rugged micro cables structure.

Application:

1.Data communication network;

2.Optical system access network;

3.Storage area network fiber channel;

4.High density architectures.

Features:

1. There are two 1.25mm ferrules in one connector housing

2. Push-pull sheath for inserting and unplugging connectors

3. Easily perform polarity conversion without exposed optical fiber:

4. Comply with IEC61753-1 Class B insertion loss requirements

5. Comply with Telcordia GR-326 and TIA-568 standards;

6. Designed for cables with an outer diameter of less than 2.0mm

7. Provide MM, SM and SM APC

8. Optical fiber wiring density is 3 times that of LC

Application Environment:

Several emerging transceiver multi-vendor protocols (MSAs) have defined port fan-out (breakout branching architecture). For duplex optical connectors to have smaller package sizes than LC connectors, the reduction in MDC connector size will allow A single transceiver accommodates MDC jumpers that plug directly into the transceiver interface. The new transceiver packaging format will support four pairs of MIDC connector cables in an OSFP package optical module or an SFE package optical module. Supports two pairs of MDC connectors. The connector density on the module panel is increased, minimizing hardware size, investment and operating costs. One rack unit RU can accommodate 144 fibers with LC duplex connectors and adapters. Use more The small MDC connector can increase the number of fiber cores to 432 cores in the same 1RU space.

Specification

item	value
Type	MDC fiber optic patch cord
Model Number	SM 2m MDC/UPC-MDC/UPC
Place of Origin	China
	Guangdong
Brand Name	KEXINT
Connector Type	MDC/UPC
Fiber Type	SM
Single-Mode Fiber	G657a2
Color	Yellow
Length	2 m
Diameter	2.0mm
Sheath Material	LSZH
Certification	ROHS/ISO9001
