KEXINT Optical Fiber Patch Cord Multimode OM4 LC-LC Duplex Uniboot LSZH 2.0mm 2 Meter

Product Details:

Place of Origin:	CHINA
Brand Name:	KEXINT
Certification:	CE/ROHS/ISO9001
Model Number:	Push-Pull LC-LC Uniboot 4M

Payment & Shipping Terms:

Minimum Order Quantity:	10+PCS
Price:	dollars+3.12+pcs
Packaging Details:	box
Delivery Time:	8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000+peace+week

Contact Now

Detailed Product Description

Fiber Type:	Multimode OM4	Fiber Count:	2 Cores
Length:	2M	Cable Diameter:	2.0mm
Fiber Jacket:	LSZH	Color:	Magenta
Highlight:	Multimode Optical Fiber Patch Cord , OM4 Optical Fiber Patch Cord , Duplex Uniboot Optical Fiber Patch Cord

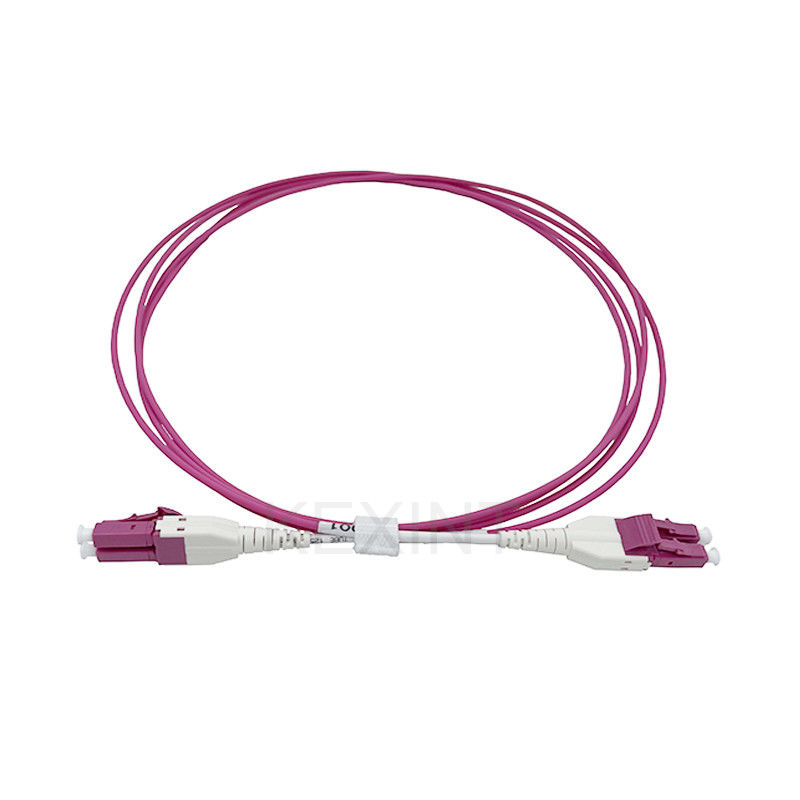

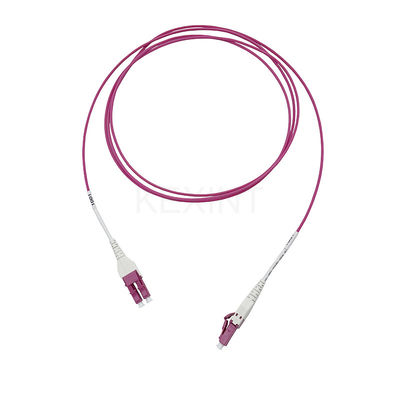

LC to LC With push pull-tab Duplex Uniboot Optical Patch Cord Designed to deliver maximum connectivity performance in a minimal footprint according to standards. LC Duplex Uniboot uses a single, unified jacket for both fibers, with a diameter of only 2mm, Uniboot patch cords allow up to 50% savings in cabling volume, allowing easier maintenance and operability, with tool-less field reversible polarity and color identification.


LC Uniboot Push-Pull (Switch Polarity) 2.0mm patchcord


Polarity Overview:Two types of duplex fiber patch cords are defined in the TIA standard: A-to-A type shown in Figure 1 and A-to-B type shown in Figure 2.
Note: A-to-A patch cords are not commonly deployed and should be used only when necessary as part of a polarity method


Cable Structure:


Features: * Uniboot with a Single Housing * Unique Push-Pull Design and Function
* Interchangeable polarity
* Low insertion loss and added loss.
* Height of attenuation.
* High back loss, small volume, light weight.
* End-face geometry and quality superior than IEC and Telcordia standards.
* LSZH, OFNP, OFNR cable jacket.
* Mechanical performance: IEC 61754-20 standard.
* RoHS and REACH materials compliant.
Advantage:

1.Allows quick Moves Adds & Changes (MACs) and easy maintenance of structured cabling.

2.High quality solution for seamless connectivity, providing excellent performance.
3.Field-proven – Installed successfully at high-density, high-availability facilities such as Disaster Recovery Plan (DRP), Business Continuity Planning (BCP) and central Data-Center sites.

4.The patch cord connector latch can be supplied in different colors, for visual distinction.

Applications:
* Data Centers
* Local Area Networks * High-Density Applications
* Interconnects
* Cross-connects
