FTTH MPO To MPO Fiber Cable Customized Length With Pulling Eye

Brand Name:	KEXINT
Model Number:	KXT- OM3 LC/UPC Duplex, KXT- OM3 LC/UPC Duplex
MOQ:	10 pieces
Price:	USD 16.14-USD18.92
Packaging Details:	Inner Carton+Outer Carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO- 9001 2015

Connector Type:

PC/UPC/APC,SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO,SC-SC LC-LC FC-FC ST-ST Or Hybrid

Length:

1m 2m 3m Or Customized

Insertion Loss:

≤0.70dB(0.40dB Typ.)

Connector:

SC LC FC ST MU,anything

Material:

LSZH

Product Name:

Fiber Optic Patch Cord,Fiber Optic H Connector SC Patch Cord Compatible Corning Jumper

Return Loss:

≥25dB

Color:

Aqua Or Cusomized

Wavelength:

850 Nm,1310nm

Supply Ability:

50000 Piece/Pieces per Week

Highlight:

FTTH MPO To MPO Fiber Cable

Aqua MPO To MPO Fiber Cable

Pulling Eye OM3 Fiber Optic Cable

Product Description

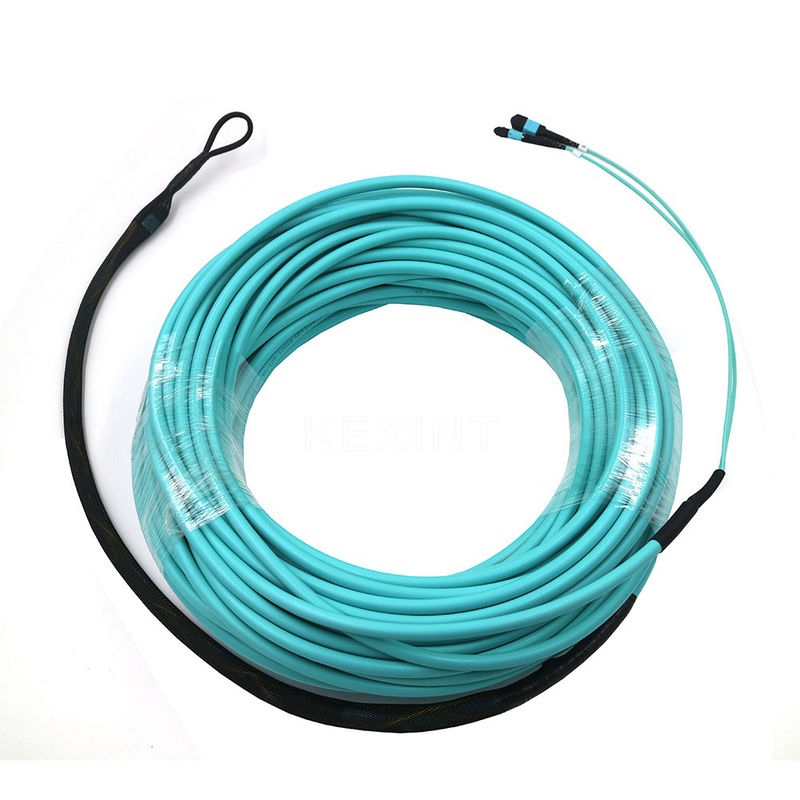

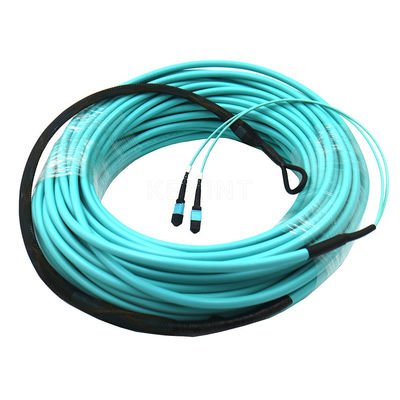

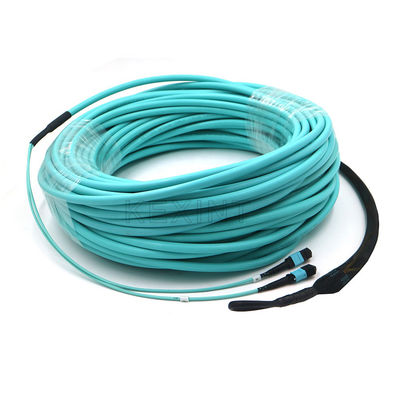

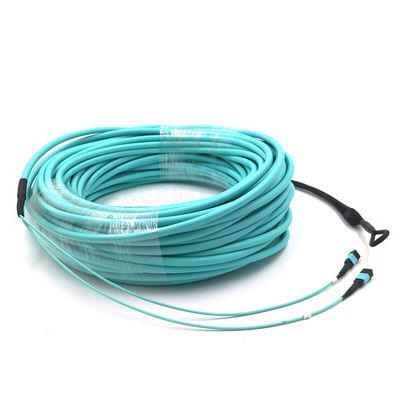

FTTH MPO To MPO Fiber Cable Customized Length With Pulling Eye

KEXINT FTTH MPO To MPO 12 24 Cores OM3 Fiber Optic Patch Cord Cable With Pulling Eye

MTP is the high dense degree of optical fiber pre-connect system, which is generally use in three areas.

-The Data Center application with high dense degree environment.

-The optical fiber to the building

-The internal connector application in fiber equipment.

MTP/MPO harness cable, also called MTP/MPO breakout cable or MTP/MPO fan-out cable, is a fiber optic cable terminated with MTP/MPO connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end. The main cable is usually 3.0mm LSZH Round cable, breakout 2.0mm cable. Female and Male MPO/MTP Connector is available and Male type connector has pins. All MPO/MTP Connectors we use USConec Brand. All springoptic’s MPO/MTP fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) Standard. We can do both Standard type and Elite type. For the jacket cable we can do 3.0mm round cable,which also can be flat jacketed ribbon cable or bare ribbon MTP cables. We can offer Single-mode and Multimode MTP fiber optical patch cables, custom design MTP fiber optic cable assemblies, 9/125, 50/125, 62.5/125, SM, MM, Simplex Duplex, 12 core MTP/MPO patch cables, 24 core MTP/MPO patch cables, 48core MTP/MPO patch cables all is available. MTP/MPO harness cables are designed for high density applications requiring high performance and speedy installation. Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. The MTP/MPO harness cables are terminated with MTP/MPO connectors on one end and standard LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end.

Therefore, they can meet a variety of fiber cabling requirements.

Features:
* Low insertion loss and back reflection loss
* Ferrule end surface pre-domed
* Excellent mechanical endurance
* Good in repeatability
* Good in exchange
* Green production, CE, ROHS standard

Applications:
* Telecommunications
* CATV, LAN, MAN, WAN, test and measurement
* Military industry
* Medical

Our advantages:

Good reply: Your inquiry related to our products or price will be replied within 24 hours.

OEM&ODM: We can help you to design or put your logo and company name into products.

Remote Technical support&Full Technical Document

Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

English software, English Indicator

Professional, Very competitive price

Large Stock, Fast Delivery

Quality Assurance

Connector A	MPO Female	Connector B	MPO Female
Fiber Mode	MM 50/125um OM3	Test Wavelength	850/1300nm
Polish Type	PC to PC	Minimum Bend Radius	10mm
Insertion Loss	≤0.70dB(0.40dB Typ.)	Return Loss	≥25dB
Attenuation at 850nm	≤2.3dB/km	Attenuation at 1300nm	≤0.6dB/km
Cable Jacket	LSZH	Cable Jacket O.D	3.0mm
Installation Tensile Load	120N	Long-Term Tensile Load	50N
Operating Temperature	-40°C to +85°C	Storage Temperature	-40°C to +85°C
