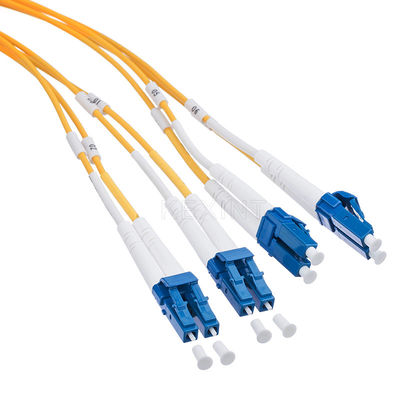

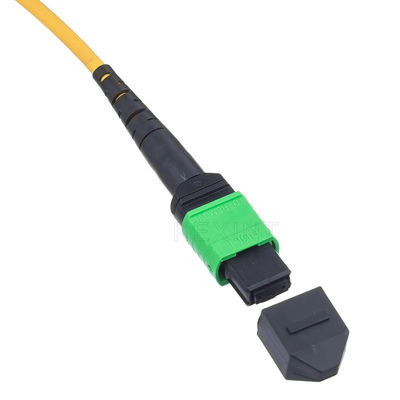

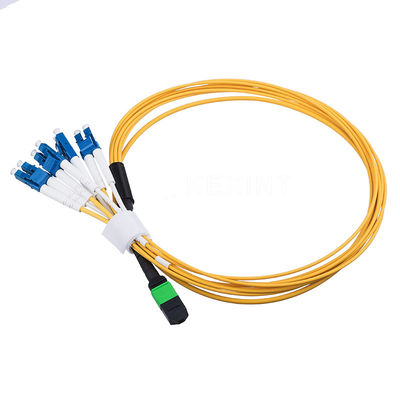

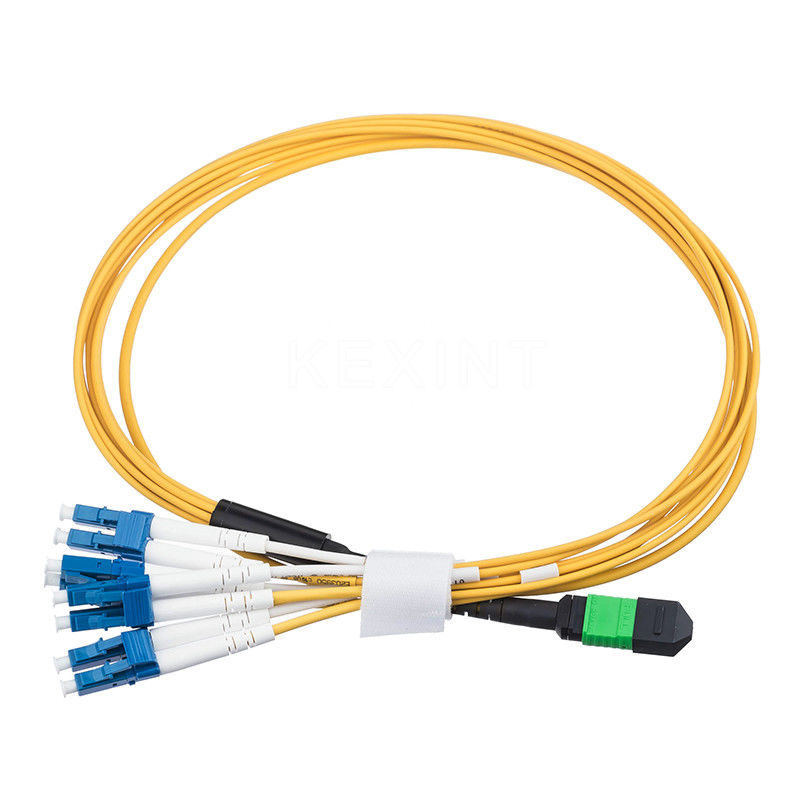

Yellow 8 Core MPO MTP to 4 LC Duplex SM Fiber Optic Patch Cord KEXINT FTTH / FTTX

Product Details:

Place of Origin:	Guangdong，China
Brand Name:	KEXINT
Certification:	CE/ROHS/ISO9001
Model Number:	MTP-4 LC Duplex SM

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	10 - 99 pieces $12; 100 - 999 pieces $11; >= 1000 pieces $10
Packaging Details:	Inner Plastic Bag+Outer Carton
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 Piece/Pieces per Week

Contact Now

Detailed Product Description

Use:	FTTH/FTTX	Fiber Type:	G657A1 Or Customized
Connector Type:	MTP/MPO/LC Or Customized	Fiber Color:	Yellow
Fiber Length:	Customized	Outer Sheath:	PVC/LSZH
Cable Diameter:	3.0mm,2.0mm	Certification:	CE/ROHS/ISO9001
Warranty Time:	3 Years	Operating Temperature:	-40℃~85℃
Highlight:	3.0mm Fiber Optic Patch Cord , 2.0mm Fiber Breakout Cable

Fiber Optic Patch Cord KEXINT FTTH/FTTX Yellow 8 Core MPO MTP to 4 LC Duplex SM 3.0mm 2.0mmBreakout Cable

As datacom technology migrates from 10GbE to 40GbE and beyond, it is often necessary to transition from discrete commercial connectors to 12- or 24-fiber MTP/MPO connectors. MTP/MPO fiber optic breakout cable assemblies are ideal for connecting high speed switches populated with higher rate transceivers QSFP+, CFP, CXP, CFP2, etc. to existing 10GbE elements populated with SFP+ modules. In addition, ever increasing data traffic and port counts is requiring higher connector densities necessitating cable assemblies that transition single channel LCs to high density MTP/MPO connectors. Spring is a leader in providing high quality MTP/MPO fiber optic breakout cable assemblies to the data communications industry.

Available with OM2, OM3, OM4 or single mode fiber, Our uses only the highest quality components to design and manufacture breakout cables to your specification. You define length, connectors and breakout configurations, or we will help design it for you.

In addition to offering breakout styles from 900 micron to 3.0 mm fiber cable outer diameter (OD), we also offer different transition options based on your mounting and space requirements. Flat, mountable and tube are all available. Our also has an overmold breakout design, which allows us to produce the most rugged cable assemblies in the industry.

MTP/MPO trunk cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. Trunk cables serve as a permanent link connecting the MTP/MPO modules to each other. Theoretically, trunk cables are available with 12, 24, 48 and 72 fibers. Their ends are terminated with the customers choice of 12-fiber or 24-fiber MTP/MPO connectors (as shown in the following figure).

MTP/MPO Specifications:

Connector A	MPO Female	Connector B	MPO Female
Fiber Mode	MM 50/125um OM3	Test Wavelength	850/1300nm
Polish Type	PC to PC	Minimum Bend Radius	10mm
Insertion Loss	≤0.70dB(0.40dB Typ.)	Return Loss	≥25dB
Attenuation at 850nm	≤2.3dB/km	Attenuation at 1300nm	≤0.6dB/km
Cable Jacket	LSZH	Cable Jacket O.D	3.0mm
Installation Tensile Load	120N	Long-Term Tensile Load	50N
Operating Temperature	-20°C to +70°C	Storage Temperature	-40°C to +85°C

Our advantages:

1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.

2.OEM&ODM: We can help you to design or put your logo and company name into products.

3.Remote Technical support&Full Technical Document

4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

5.English software, English Indicator

6.Professional, Very competitive price

7.Large Stock, Fast Delivery

8.Quality Assurance.
