KEXINT FSMA - FSMA Optical Fiber Patch Cord 2.0 3.0mm Single Mode Multimode

Product Details:

Place of Origin:	CHINA
Brand Name:	KEXINT
Certification:	CE Iso-9001 Ross UL
Model Number:	FSMA - FSMA

Payment & Shipping Terms:

Minimum Order Quantity:	10+pcs
Price:	1.37+$+piece
Packaging Details:	box
Delivery Time:	8
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:	1000+PCS+Day

Contact Now

Detailed Product Description

Fiber Type:	SM/MM	Connector Type:	SMA 905
Color:	Customized Colors	Material:	PVC LSZH
Cable Diameter:	2.0mm/3.0mm	Length:	1m/2m/3m/...customized
Package:	Carton Box	Operating Temperature (°C):	-40℃~85℃
Highlight:	FSMA FSMA Optical Fiber Patch Cord , Optical Fiber Patch Cord 3.0mm , LSZH Fiber Optical Patch Cord

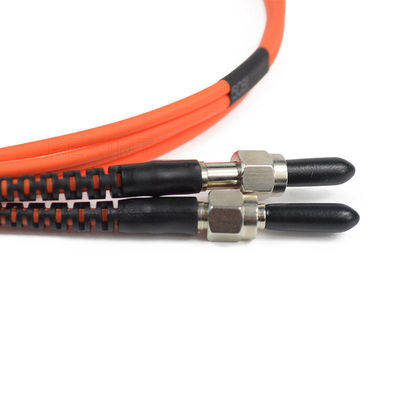

SMA 905 connector, also known as FSMA connector, was one of the first fiber optic interconnect system that gained industry wide acceptance. It has a screw coupling nut (threaded plug and socket) and holds a single fiber.
SMA fiber optic patch cord is usually multimode. SMA connector’s ferrule is traditionally made of steel (tungsten carbide with copper-nickel alloy insert) although ceramic versions are also available. SMA905 optical ﬁber connector or terminal with air gap protection modiﬁed SMA905 metal connecting head, equipped large core diameter energy ﬁber can meet the general semiconductor laser and low power solider laser of output energy laser transmission.Connector can be used within the environmental protection technology of non glue technology,for further increase energy ﬁber cooling effect and service life,meet the need of laser welding and cutting that high power transmission.

SMA stands for Sub Miniature A. SMA 905 connector has a straight ferrule (3.14mm in diameter), while SMA 906 connector has a stepped ferrule. (ferrule diameter step from 0.118” to 0.089”) The stepped ferrule design allows an alignment sleeve to be used and therefore the SMA 906 connection has lower insertion loss than SMA 905 connection.


APPLICATIONS:SMA connectors are typically used in medical, surgical, military, industrial, and laser systems. They were once popular but now they are decreasing in popularity. Standard FSMA (Ø=3.175 mm) ber optic connector for LAN, MAN, WAN, Test & Measurement, Industry, Medical and Sensors applications.  1.Food Safety Testing 2.UV for skin care applications 3.Medical light detection device 4.Industrial control, factory automation 5.Industrial silicon, liquid, spectral detection 6.Optical applications experiments on measurement 7.Automobiles and aircraft as well as military applications
FEATURES: 1.Good fatigue resistance 2.Connector diversification options, special custom 3.Large core optical fiber, a variety of optional specifications 4.Fiber 105um-1500um optional 190nm-2500nm wavelength range can be selected

Specification

item	value
Model Number	FSMA - FSMA
Type	Optical Fiber Patch Cord
Place of Origin	China
	Guangdong
Brand Name	KEXINT
Use	FTTX
Warranty Time	5 YEARS
Network	None
Fiber Type	SM/MM
Connector Type	FSMA
Color	Customized Colors
Material	PVC LSZH
Cable Diameter	2.0mm/3.0mm
Length	1m/2m/3m/...customized
Package	Carton Box
Certification	CE/ROHS/ISO9001
Operating Temperature (°C)	-40℃~85℃
