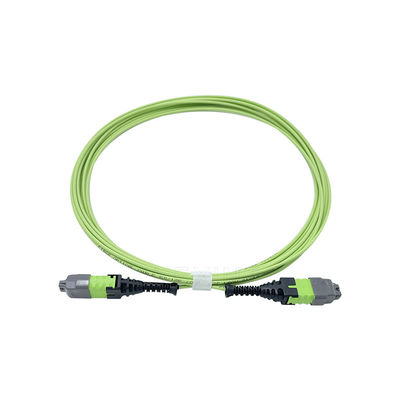

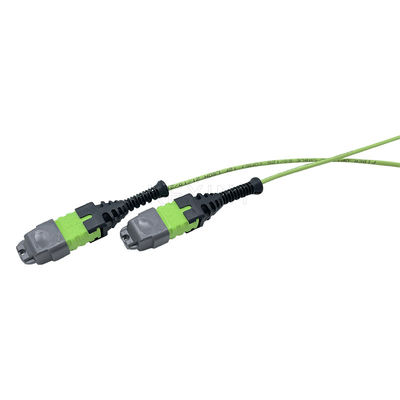

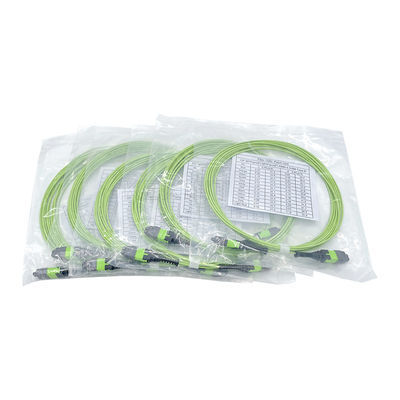

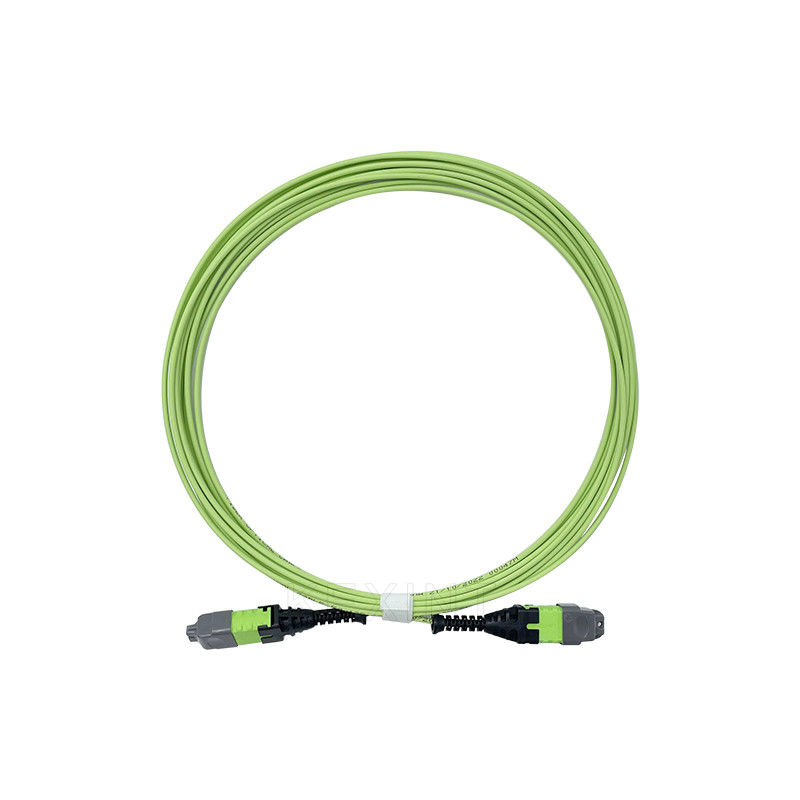

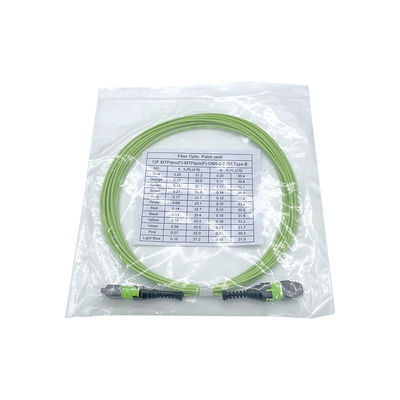

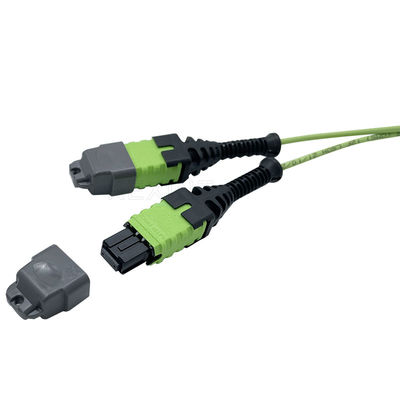

KEXINT 12 Core OM5 Fiber Optic Patch Cord 2.0mm 5M Type B Multimode

Product Details:

Place of Origin:	CHINA
Brand Name:	KEXINT
Certification:	CE Iso-9001 Ross UL
Model Number:	OM5 12 core MTP/pro 5M type B

Payment & Shipping Terms:

Minimum Order Quantity:	10+pcs
Price:	6.73+$+piece
Packaging Details:	box
Delivery Time:	8
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:	1000+PCS+Day

Contact Now

Detailed Product Description

Fiber Count:	12 Fibers	Fiber Type:	Multimode OM5
Polarity:	Type B	Jacket:	LSZH
Diameter:	2.0mm	Length:	5m Or Customized
Application:	Data Center	Operating Temperature:	-40℃~85℃
Highlight:	Fiber Optic Patch Cord 5M , 12 Core OM5 Patch Cord , Type B OM5 Patch Cord

MPO/MTP Trun cable patch cord, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications.

KEXINT provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;


Features:
100% pre-terminated and tested in factory to ensure transfer performance

Rapid configuration and networking, reduce installation time

Supports 40G and 100G network applications

Jacket material: LSZH, OFNR, OFNP available

Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Application:
Data communication network

Optical System Access network

Storage area networking fiber channel

High density architectures


Specification:

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30
