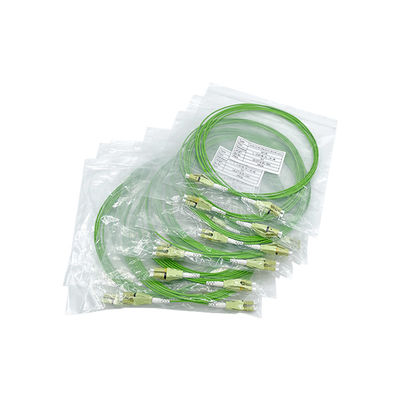

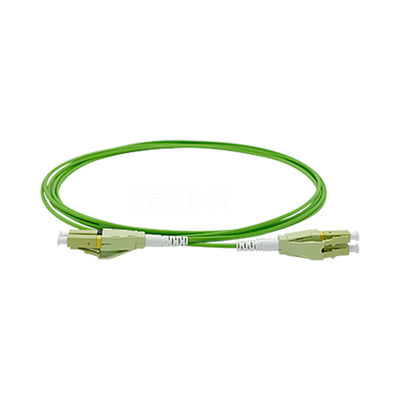

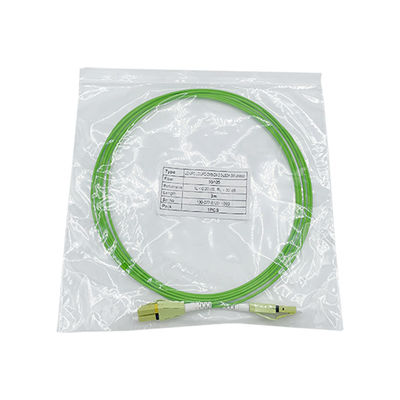

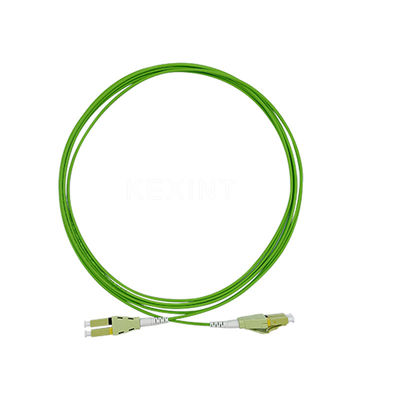

KEXINT 3m Fiber Optic Uniboot Patch Cord Multi Mode OM5 LC Duplex

Brand Name:	KEXINT
Model Number:	Multi Mode LC Duple 3M
MOQ:	100+pcs
Price:	1.53+$+piece
Packaging Details:	box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE Iso-9001 Ross UL

Fiber Counts:

2 Cores

Fiber Jacket:

2.0mm, LSZH

Fiber Type:

MM OM5

Pull-out Force:

100N

Durability:

500 Cycles

Minimum Bend Radius:

2*3.0mm

Fiber Class:

Bend Insensitive

Supply Ability:

1000+PCS+Day

Highlight:

Fiber Optic Uniboot Patch Cord

3m Uniboot Patch Cord

OM5 Fiber Optic Patch Cord

Product Description

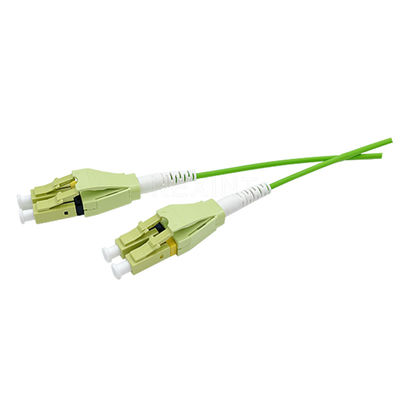

KEXINT’s range of LC Uniboot style patchcords with integrated push/pull tab are the idealsolution for high density patching environments. The unique push pull tab allows easy finger access and a secure holding fixture for any patching or handling process. The attractive, low profile uniboot connector design utilises round 2 mm duplex cord for neater and denser cable management. For multimode OM4 and OM3 OM5 applications, low loss connectors are used to offer the lowest possible channel loss.

Applications:

---CATV; Active device termination;

---Telecommunication networks;

---Metro;

---Local Area Networks;

---Data processing networks;

---Test equipment;

---Premise installation;

---Wide Area Networks.

Features:

---Low insertion and back reflection loss;

---Good exchangeability;

---Good durability;

---High temperature stability;

---Standard: TelcordiaGR-326-CORE.

Item	SM(Single Mode)			MM(Multimode)
Fiber Cable Type	G652/G655/G657			OM1	OM5/OM2/OM3/OM4
Fiber Diameter (um)	9/125			62.5/125	50/125
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0
Endface Type	PC	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.15	<0.2	<0.1	<0.1
Return Loss (dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2		<0.3	<0.15
Interchangeability (dB)	<0.1		<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (℃)	-40~+80

Split accessories:

Connector A :LC SM/MM uniboot connector , housing,boot, shrinkable tube, with clip
Connector B : LC SM/MM uniboot connector , housing, boot, shrinkable tube,with clip

Cable: 2C 3mm round cable ,LSZH /PVC **Length= Can be customized

Our advantages:

Good reply: Your inquiry related to our products or price will be replied within 24 hours.

OEM&ODM: We can help you to design or put your logo and company name into products.

Remote Technical support&Full Technical Document

Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

English software, English Indicator

Professional, Very competitive price

Large Stock, Fast Delivery

Quality Assurance
