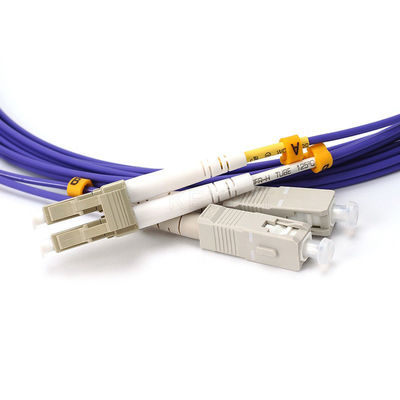

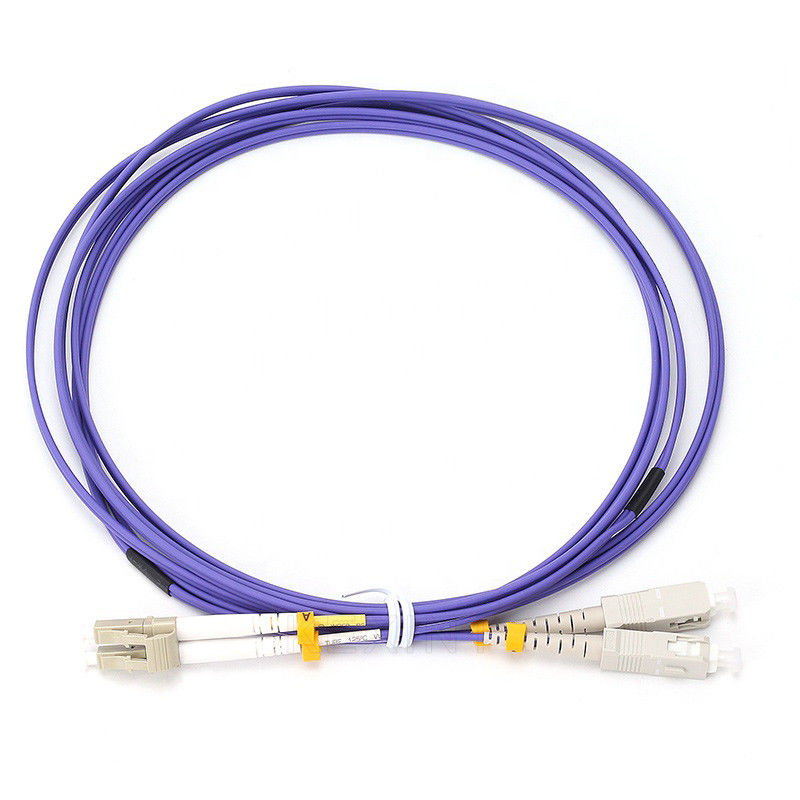

Fiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.
Fiber Jumper structure
1. The center is glass core of light transferring
2. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core
3. A thin plastic coat outside is used to protect the envelope.
Fiber jumper Category
Transmission medium: 1. Silicon fiber optic jumper 2. Plastic fiber optic jumper
Based on connector: FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.
Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so on
Based on Cable outer sheath material: Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type. Based on Patch cable length:0.5m,1m,2m,3m,5m,10m
Applications:
---CATV; Active device termination;
---Telecommunication networks;
---Metro;
---Local Area Networks;
---Data processing networks;
---Test equipment;
---Premise installation;
---Wide Area Networks.
Features:
---Low insertion and back reflection loss;
---Good exchangeability;
---Good durability;
---High temperature stability;
---Standard: TelcordiaGR-326-CORE.
Parameter:
