KEXINT FTTH MPO MTP Connector LSZH Jacket For 40G 100G Network Applications

Brand Name:	KEXINT
Model Number:	MPO MTP
MOQ:	50+pcs
Price:	1.03+$+piece
Packaging Details:	box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CE Iso-9001 Ross UL

Fiber Type:

SM OM1 OM2 OM3 OM4

Connector Type:

MTP/MPO

Color:

Green, Blue, Yellow, Red

Outer Jacket:

PVC Or LSZH

Fiber Count:

4 8 12 24 48 Cores

Supply Ability:

1000+PCS+Day

Highlight:

Network Applications MPO MTP connector

pre terminated MPO MTP connector

LSZH mpo fiber optic connector

Product Description

KEXINT FTTH 12 24 Core SM MM OM3 OM4 40G-100G MPO MTP Fiber Optic Patch Cord Connector


MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

①MPO/MTP Trunk Cable
②MPO/MTP Harnesses Cables
③MPO/MTP Fan out 0.9mm Patch Cords
④IP-Series MPO/MTP Assembly
⑤High Density Patch Cords

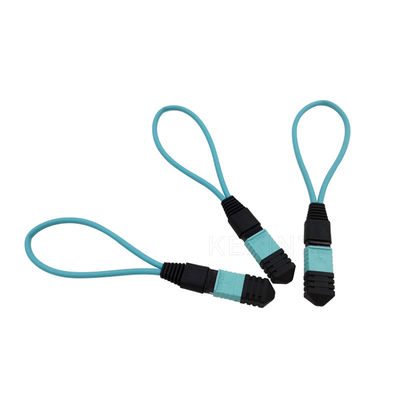

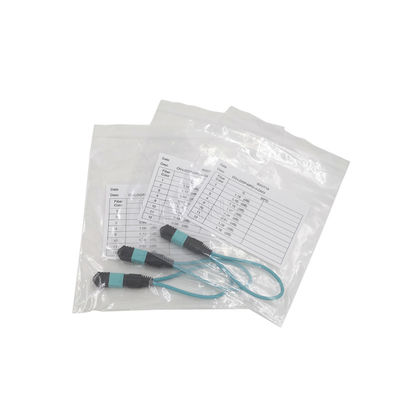

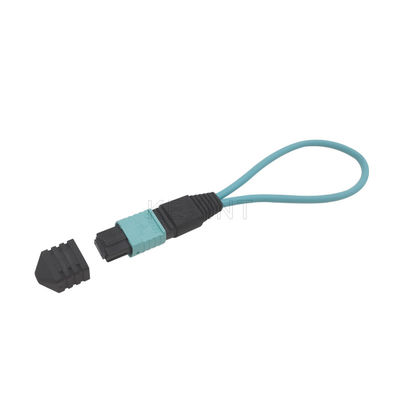

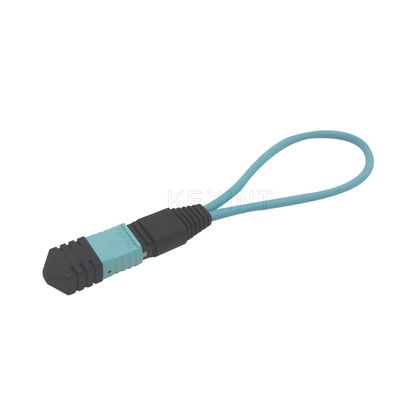

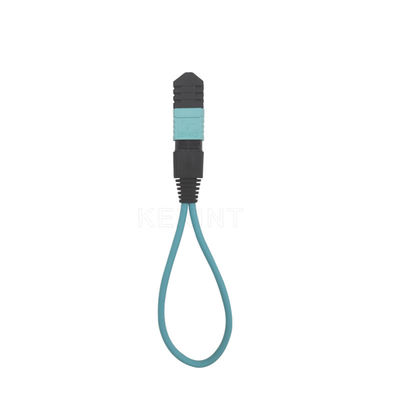

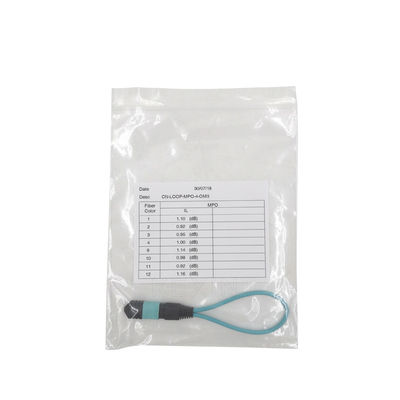

⑥MPO/MTP Loopback
⑦MT Patch Cords
⑧MPO/MTP Cassettes
⑨MPO/MTP Fiber Optic Patch Panel

APPLICATION:
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures

FEATURES:
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available


Product Parameters:

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM		≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30

Note:

1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;

2.Standard conformance: GR-326,GR-1435.

Mechanical Properties
Item		Criteria	Conformance
△IL After 50 Matings	MPO/MTP	≤0.3dB	GR-1435
△IL After 500 Matings	LC/SC/FC/ST	≤0.2dB	IEC 61300-2-2
Min Bend Radius (Dynamic)		20*OD (Cable Diameter)
Min Bend Radius (Static )		15*OD (Cable Diameter)

Environment Conditions
Item	Criteria	Conformance
Operation Temperature	-40~60°C	IEC 61753-1
Storage Temperature	-45~85°C


Our advantages:
Good reply: Your inquiry related to our products or price will be replied within 24 hours.

OEM&ODM: We can help you to design or put your logo and company name into products.

Remote Technical support&Full Technical Document

Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

English software, English Indicator

Professional, Very competitive price

Large Stock, Fast Delivery

Quality Assurance
