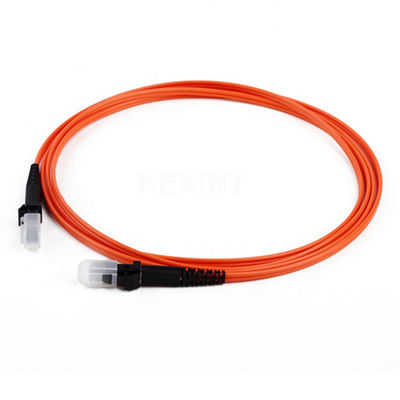

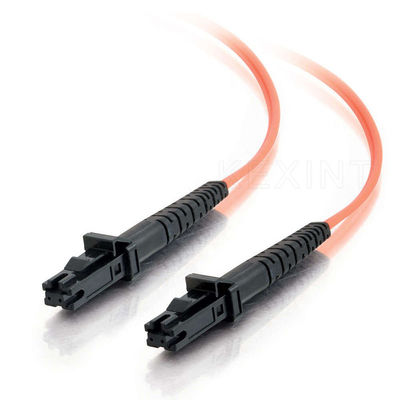

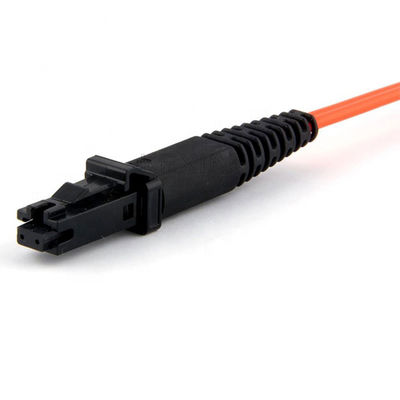

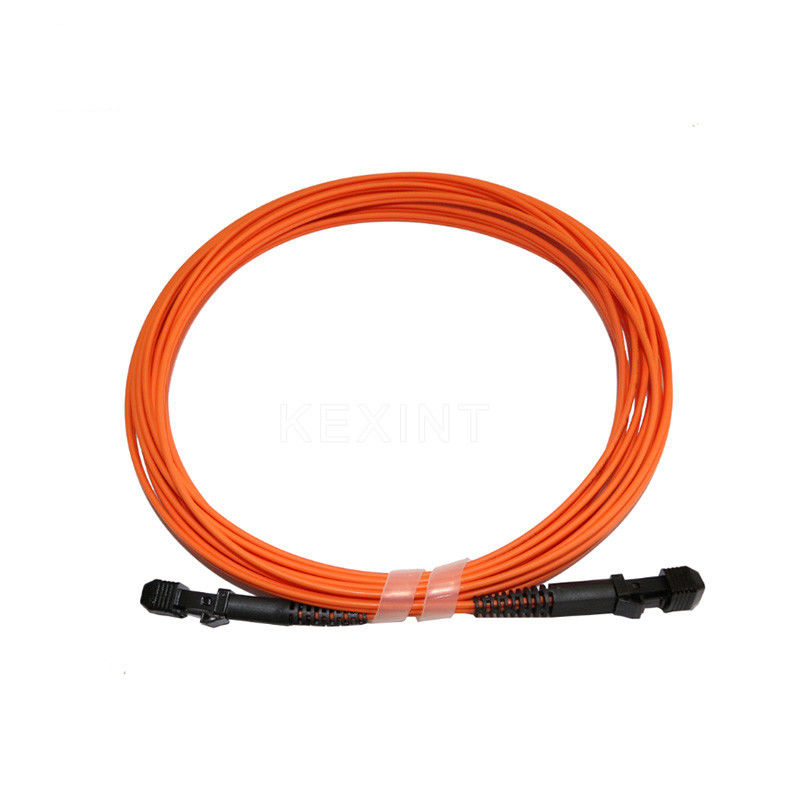

KEXINT LSZH MTRJ OM1 OM2 Fiber Optical Patch Cord Single Mode Multimode Simplex Duplex

Brand Name:	KEXINT
Model Number:	MTRJ-MTRJ
MOQ:	10+pcs
Price:	0.78+$+piece

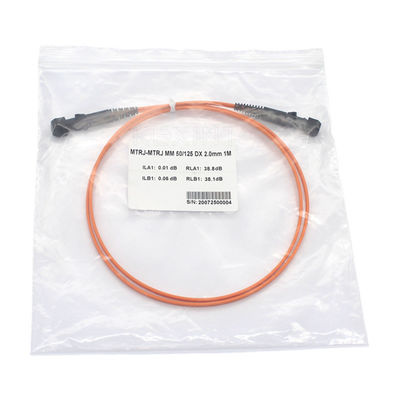

Packaging Details:	box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CE Iso-9001 Ross UL

Fiber Count:

Simplex Duplex

Jacket Material:

PVC / TPU/ LSZH / OFNR

Fiber Type:

SM/MM/OM1/OM2

Cable Diameter:

2.0/3.0mm

Connector Type:

MTRJ-MTRJ

Length:

1/2/3/4/5m Or Others

Operating Temperature (°C):

-40℃~85℃

Supply Ability:

1000+PCS+Day

Highlight:

LSZH Fiber Optical Patch Cord

MTRJ Fiber Optical Patch Cord

3.0mm Fiber optic patch cords

Product Description

Fiber optic patch cords are used to jump from the device to the fiber optic cabling link. There is a thick protective layer,generally used in the optical terminal and the terminal box between the connection, used in optical fiber communication systems,fiber access network, optical fiber data transmission and LAN and other areas.RE-1999 requirements.


Specification:

Parameter	Unit	Mode Type	PC	UPC	APC
Insertion Loss	dB	SM	<0.3	<0.3	<0.3
Insertion Loss	dB	MM	<0.3	<0.3
Return Loss	dB	SM	>50	>50	>60
Return Loss	dB	MM	>35	>35
Repeatability	dB	Additional loss< 0.1, return loss< 5
Interchangeability	dB	Additional loss< 0.1, return loss< 5
Connection Times	times	>1000
Operating Temperature	°C	-40 ~ +75
Storage Temperature	°C	-40 ~ +85


Test:

Test Item	Test Condition and Test Result
Wet-resistance	Condition: under temperature:85°C, relative humidity 85% for 14days. Result: insertion losss0.1dB
Temperature Change	Condition: under temperature -40°C~+75°C, relative humidity 10 % -80 % , 42 times repetition for 14days. Result: insertion losss0.1dB
Put in Water	Condition: under temperature 43C, PH5.5 for 7days Result: insertion losss0.1dB
Vibrancy	Condition: Swing1.52mm, frequency 10Hz~55Hz, X, Y, Z three directions:2 hours Result: insertion losss0.1dB
Load Bend	Condition: 0.454kg load, 100 circles Result: insertion losss0.1dB
Load Torsion	Condition: 0.454kgload, 10 circles Result: insertion loss s0.1dB
Tensibility	Condition: 0.23kg pull (bare fiber), 1.0kg (with shell) Result: insertions0.1dB
Strike	Condition: High 1.8m, three directions ,8 in each direction Result: insertion losss0.1dB
Reference Standard	BELLCORE TA-NWT-001209, IEC, GR-326-CORE standard


Features:
* Insert-pull, key-oriented coupling mechanism which allows high repeatable, low-loss connection

* Simplex ,Duplex and Multi-coreaccessories for standard or customized structure.

* PC/UPC/APC polish

* Comply with Telcordia GR-326-CORE Specification

* The material of plastic plug comply with the request of UL94V-O And Standard of RoHS

* High quality zirconia ferrules.
* LC/SC/ST/FC/LSH/MTRJ/MU connectors with standard boots are available.
* Flame-retardant, rugged and durable jacket.
* OS2/OM5/OM4/OM3/OM2/OM1 are available.
* Factory terminated and tested for insertion loss, return loss and end face.

Application:

* Optical communication network

* Telecom network

* Ethernet network

* CATV network
