KEXINT FTTH MTP MPO Connector For SM MM OM1 OM2 OM3 OM4 Fiber

Brand Name:	KEXINT
Model Number:	MPO MTP
MOQ:	50+pcs
Price:	1.16+$+piece
Packaging Details:	box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CE Iso-9001 Ross UL

Fiber Type:

SM OM1 OM2 OM3 OM4

Color:

Green, Blue, Yellow, Red

Connector Type:

MTP/MPO

Fiber Diameter:

3.0mm

Fiber Count:

4 8 12 24 48 Cores

Outer Jacket:

PVC Or LSZH

Operating Temperature (°C):

-40℃~85℃

Supply Ability:

100000+PCS+Day

Highlight:

FTTH MTP MPO connector

UL MTP MPO connector

SM MM mpo fiber connector

Product Description

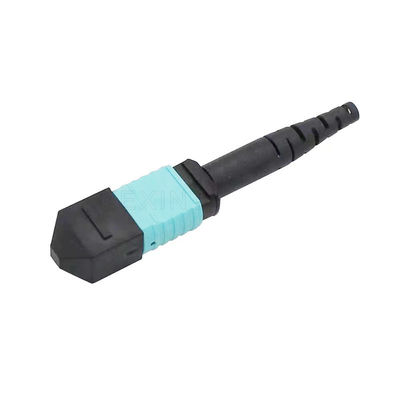

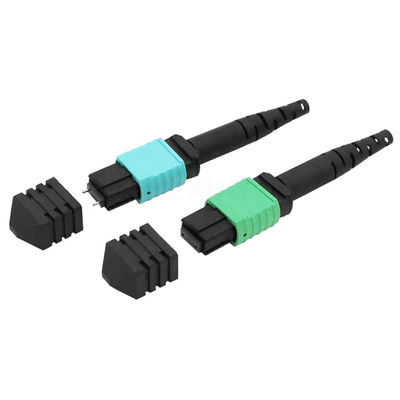

MPO Connector provide reliable high performance interconnects of up to 32 fibers in a small footprint. MPO Fiber Optic Connector Kit utilize the precision molded NTT compatible ferrule which connects 4 to 32 fibers using bare ribbon or ruggedized ribbon cable. So MTP/MPO connectors are widely used in High-Density And Multi-Fiber Interconnect Applications. MPO connectors meet IEC 1754-7 and TIA/EIA 604-5 standards.


Specification:

Item	Parameter
Type	MTP/MPO Connector
Cable Type	OM1, OM3, OM4, OM5, OS1 or OS2
Fiber Count	4/8/12/16/24/36/48/96/144

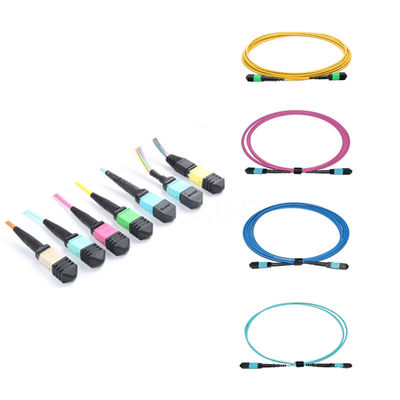

Component Color	Aqua (OM3), Violet (OM4), Beige(OM1), Turquoise(OM5), Green( SM standard loss), Yellow (SM low loss)
Ferrule Polish Endface	PC, UPC, APC
Insertion Loss (dB)	≤0.7dB (Standard), ≤0.35dB (Low)
Return Loss (dB)	MM: PC≥20dB SM: PC≥40dB, APC≥55dB (Standard); MM: PC≥30dB SM: PC≥50dB, APC≥60dB (Low)
Operating Temperature	-40~85°C
Polarity	A/B/C, Customized


Application:
CATV
Active device termination
Telecommunication networks
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installation
Wide Area Networks(WANs)

Feature:
Low insertion loss and back reflection loss
Ferrule end surface predomed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing

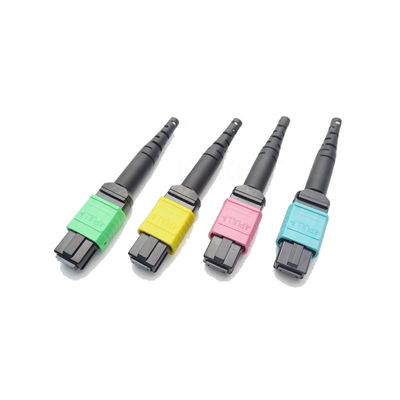

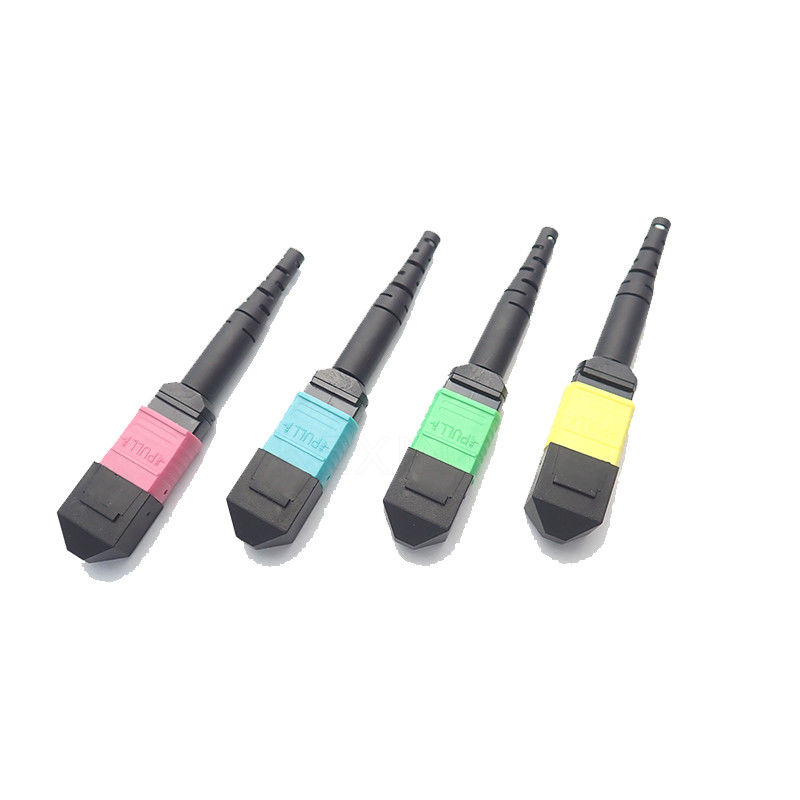

Boots in a variety of colors
Telcordia style boots
Free-floating ceramic ferrule

Standards:
All components and final producs are designed and tested to conform the requirement of IEC 60874-7, CECC 86115-801,
Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC794-1-E3, UL 1666/901 and EIA/TIA 455

Availability:

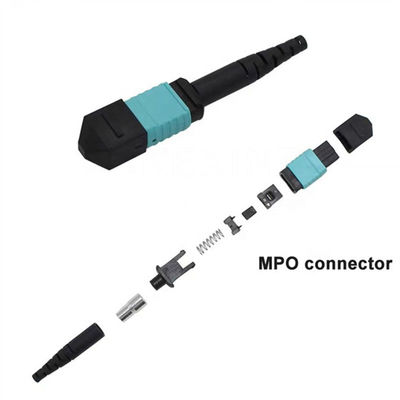

The connector can be supplied as a pre-assembled one-piece connector or as connector kit.
Clips are available for duplex connectors
Housing kits without ferrule are available.
