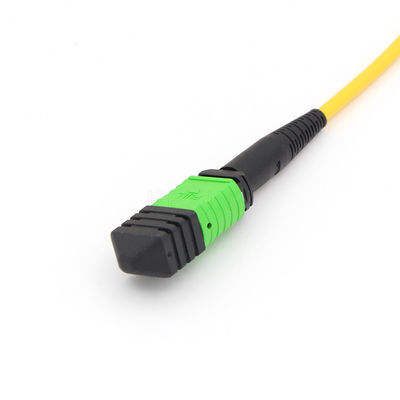

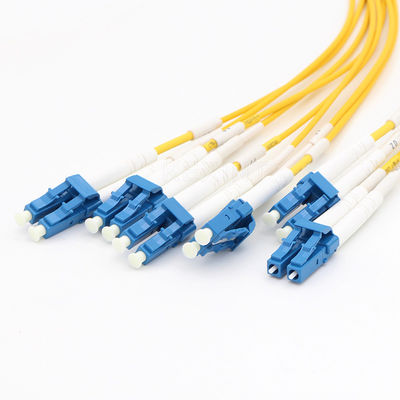

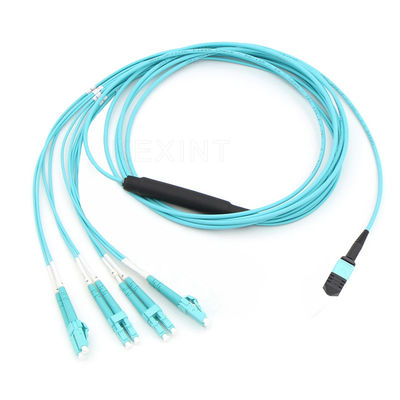

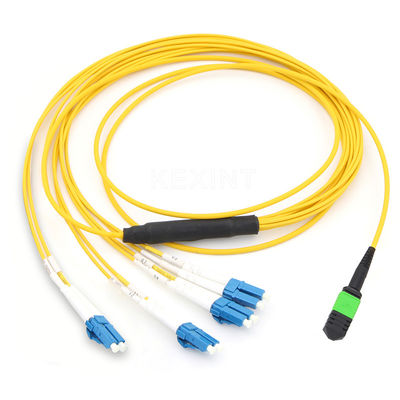

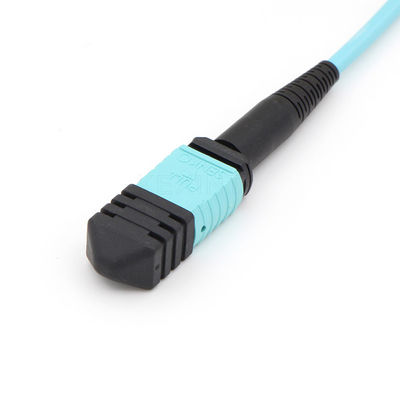

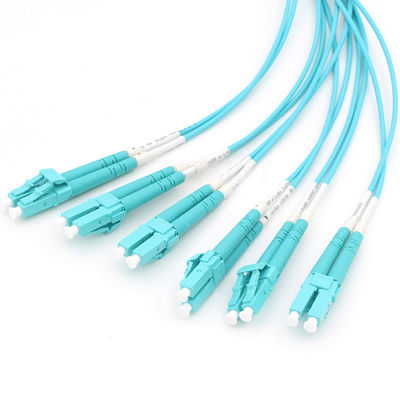

KEXINT MPO To LC Fiber Optical Patch Cord 8 Core 3m Singlemode Multimode

Brand Name:	KEXINT
Model Number:	4 Duplex LC-MPO
MOQ:	10+pcs
Price:	18.69+$+piece
Packaging Details:	box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CE Iso-9001 Ross UL

Fiber Type:

SM,MM(50/125um,62.5/125um),OM3,OM4

Length:

1m,2m,3m Or Customized

Outer Sheath Material:

PVC/LSZH

Cable Diameter:

3.0mm, 2.0mm

Connector Type:

MTP/MPO/LC Or Customized

Operating Temperature:

-40℃~85℃

Supply Ability:

1000+PCS+Day

Highlight:

MPO LC Fiber Optical Patch Cord

Fiber Optical Patch Cord 3m

LSZH mpo patch cord

Product Description

MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.

MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.

These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

Features:
Low insertion loss and back reflection loss

Good echangeability

Good Durability

High temperature stability.

Standard: Telcordia GR-1435-CORE

Application:

CATV, and Multimedia

Active dvice termination

Telecommunication networks

Gigabit Ethernet

Interconnection for O/E modules

Data processing networks

Industrial and medical

Premise installations.

Optical Switch interframe connect

Asynchronous Transimission Mode(ATM)

Specification:

Model		SM	MM
Connector A:MPO/MTP
Connector Fiber Count		8,12,24,48 Core
Polish		PC,APC	PC
Insertion Loss	Standard	≤0.70dB	≤0.50dB
	Elite Low Loss	≤0.35dB	≤0.30dB
Return Loss		PC≥50dB,APC≥60dB	≥30dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm
Connector B:LC,LC Uniboot,SC,FC,ST
Polish		PC,APC	PC
Insertion Loss		≤0.2dB	≤0.2dB
Return Loss		PC≥50dB,APC≥60dB	≥35dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm
