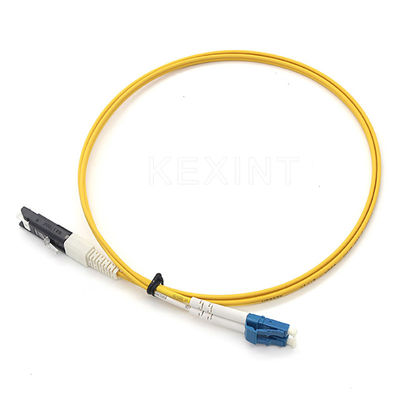

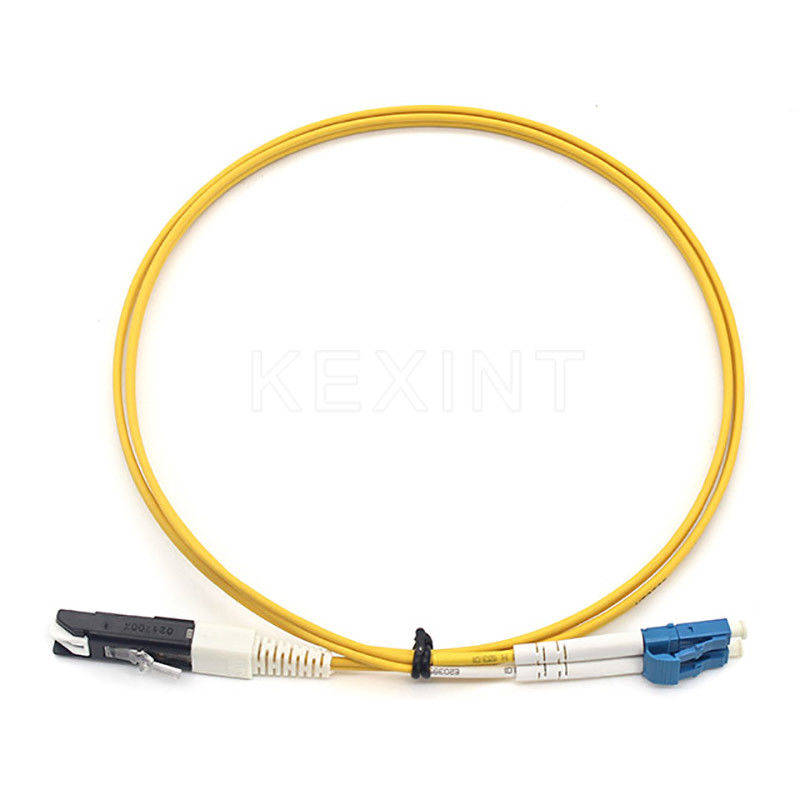

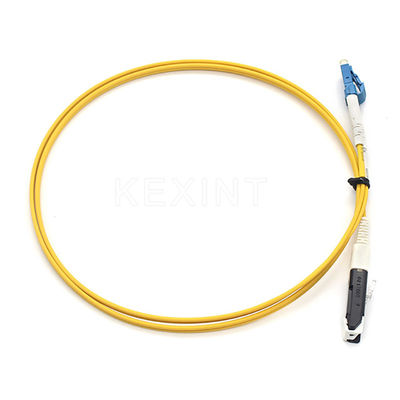

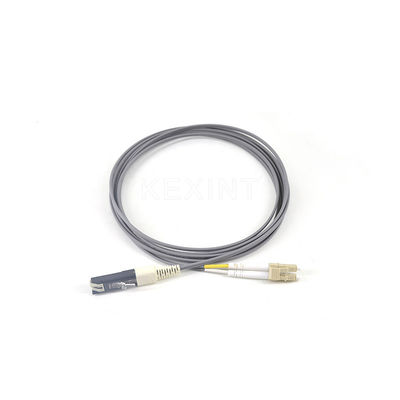

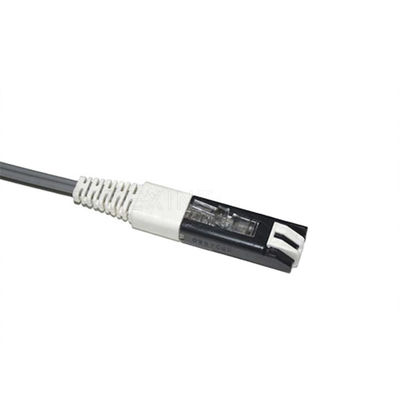

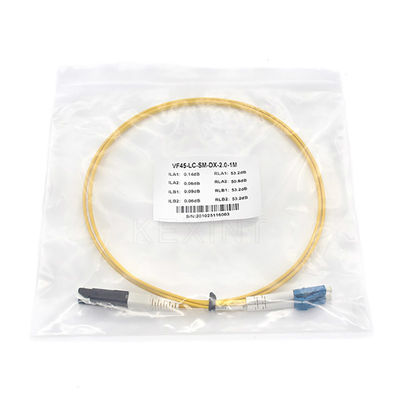

Name: KEXINT FTTP Fiber Optic Patch Cord Duplex VF45 To LC UPC Connector Single Mode Multimode
Brand: 深圳市科信通技术有限公司
SKU: Duplex VF45-LC/UPC
Price: 21.36 USD
Availability: InStock

Home Products Fiber Optical Patch Cord

KEXINT FTTP Fiber Optic Patch Cord Duplex VF45 To LC UPC Connector Single Mode Multimode

Product Details:

Place of Origin:	Guangdong
Brand Name:	KEXINT
Certification:	CE Iso-9001 Ross UL
Model Number:	Duplex VF45-LC/UPC

Payment & Shipping Terms:

Minimum Order Quantity:	10+pcs
Price:	21.36+$+piece
Packaging Details:	box
Delivery Time:	8
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:	1000+PCS+Day

Contact Now

Detailed Product Description

Connector Type:	VF45 To LC	Cable Diameter:	2.0/3.0mm
Fiber Type:	SM/MM/OM3/OM4	Length:	1/2/3/4/5m Or Others
Jacket Color:	Grey/Yellow	Fiber Count:	Simplex Or Duplex
Jacket Material:	PVC / TPU/ LSZH / OFNR	Operating Temperature (°C):	-40℃~85℃
Highlight:	FTTP Fiber Optic Patch Cord , VF45 LC Fiber Optic Patch Cord , Duplex Fiber Optic Patchcords

Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJN MPO etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.

LC to VF45 patch cord is used to connect computer stations and other optical equipment with existing Volition (VF45) style networks. All VF-45 patch cords are constructed with the innovative "GGP" high-strength coated optical fiber, providing unmatched durability and tight bend radius features for the abusive desktop environment. VF-45 patch cords are provided in a variety of lengths up to 5 meters.


Features:

●Small, light, high dense connection ●Standard exact plastic material
●Good in repeatability and exchangeability
● Using high precision ceramic ferrule
● Low insertion loss and high return loss
● Excellent stability and high repetition
● 100% Optic test (Insertion Loss & Return Loss)


Application:

●Data Centre
● Telecommunication Network
● Fiber Broad Band Network
● CATV system
● LAN and WAN system
● FTTP



Specification:

Parameters	VF45 to LC Fiber Optic patch cord
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3/OM4)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000/VF45
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.


Our advantages:

Good reply: Your inquiry related to our products or price will be replied within 24 hours.

OEM&ODM: We can help you to design or put your logo and company name into products.

Remote Technical support&Full Technical Document

Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

English software, English Indicator

Professional, Very competitive price

Large Stock, Fast Delivery

Quality Assurance
