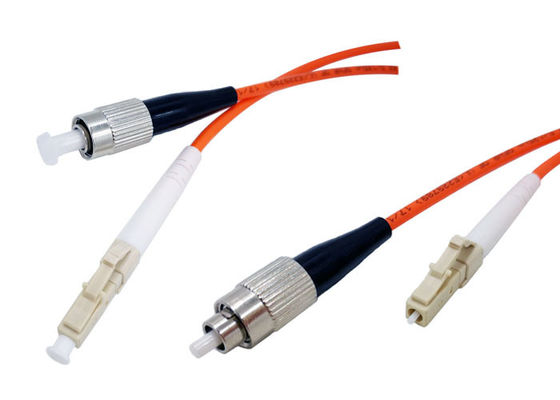

MM FC-LC Fiber Optical Patch Cord 1 Meter PVC LSZH 100% 3D Test Indoor Multimode

Brand Name:	KEXINT
Model Number:	KXT-PC-FC-Armored
MOQ:	1
Price:	$+1.5+1PCS
Packaging Details:	383842cm Carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

ISO-9001-2015

Connector Type:

FC-UPC-FC/UPC

Buffer Material:

PVC Or LSZH

Length:

Optical Fiber Type:

G652D

Colour:

Blue

Return Loss:

65 DB

Cable Size:

0.9 Mm

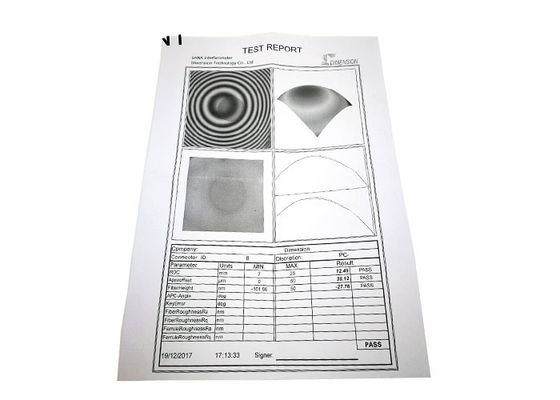

Test:

3D 100%

Supply Ability:

10000+pcs+1day

Highlight:

duplex fiber patch cord

Product Description

MM FC-LC Fiber Optical Patch Cord 1 Meter PVC LSZH 100% 3D Test Indoor Multimode

Single-mode fiber: General fiber jumpers are shown in yellow, connectors and protective sleeves are blue; transmission distance is longer.
Multi-mode fiber: General fiber jumpers are shown in orange, and some are shown in gray. The connectors and protective sleeves are beige or black; the transmission distance is short.
Optical fiber jumpers can be divided into common silicon-based optical fiber single-mode and multi-mode jumpers according to the different transmission media, as well as other optical fiber jumpers such as plastic, etc .; according to the structure of the connector, they can be divided into: FC Jumper, SC jumper, ST jumper, LC jumper, MTRJ jumper, MPO jumper, MU jumper, SMA jumper, FDDI jumper, E2000 jumper, DIN4 jumper, D4 jumper, etc. form. The more common fiber jumpers can also be divided into FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, SC-ST and so on.

1 Applications:
a. Local Area Network (LAN)
b. Data communication network
c. Telecommunication optical transmission network
d. Optical access network(OAN)
e. Active device termination
f. Fiber optics data transmission
g. Test Equipment and CATV
e. Gigabit Ethernet

2. Optical Fiber Patch Cord Characteristics

2.1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2.2 Ferrule End-face: PC,UPC,APC
2.3 Core Type: Single-mode (SM: 9/125um):G652D,G657A
Multimode(MM: 50/125um,62.5/125um,OM3 or OM4)
2.4 Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
2.5 Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
2.6 Cable Length: 1, 2, 3 meter or customized
2.7 Sheath Type: PVC, LSZH , OFNR, OFNP, Plenum ,Armored…

3 . Connector Specification

Specification	Unit	SC, FC, LC			ST, MU, MT-RJ,SMA		MTP,MPO		E2000
		Single-mode		Multimode	Single-mode	Multimode	Multimode	Single-mode	Single-mode
		UPC	APC	PC	UPC	PC	PC	APC	UPC	APC
Insertion loss	dB	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.7	≤0.75	≤0.3	≤0.3
Return loss	dB	≥50	≥60	≥30	≥50	≥30	≥25	≥45	≥55	≥75
Wavelength	nm	1310/1510			1310/1510		1310/1510		1310/1510
Interchangeability	dB	≤0.2			≤0.2		≤0.2		≤0.2
Vibration	dB	≤0.2			≤0.2		≤0.2		≤0.2
Operating temperature	℃	-40~75			-40~75		-40~75		-40~75
Storage temperature	℃	-45~85			-45~85		-45~85		-45~85
Cable diameter	mm	φ3.0,φ2.0,φ0.9			φ3.0,φ2.0,φ0.9		φ3.0,φ2.0,φ0.9		φ3.0,φ2.0,φ0.9

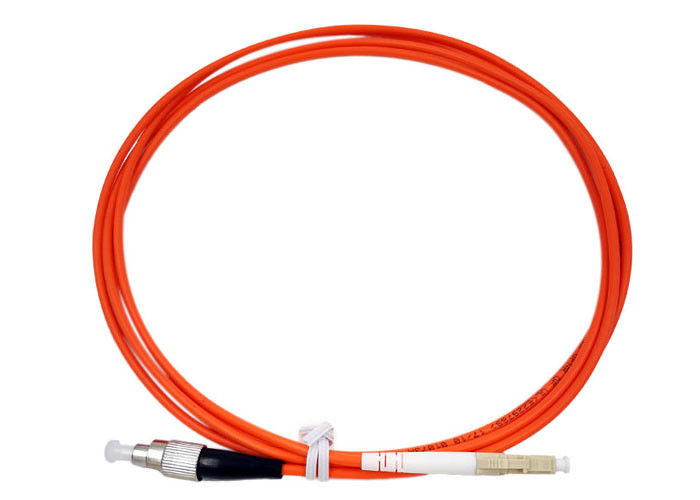

MM FC-LC Fiber Optical Patch Cord 1 Meter PVC LSZH 100% 3D Test Indoor Multimode 0

4. Optical Cable Color
