Armoured Duplex Fiber Optical Patch Cord Indoor 3.0 SOS DX LC/UPC Connector
  • name
  • name
  • name
  • name

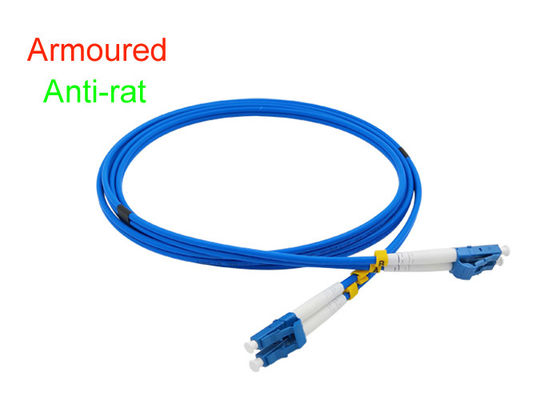

Armoured Duplex Fiber Optical Patch Cord Indoor 3.0 SOS DX LC/UPC Connector

Brand Name: KEXINT
Model Number: Armored Fiber Optical Patchcord
MOQ: 2.27$
Price: Negotiation
Packaging Details: 1 piece/bag, 20 bags/bag
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
HUNAN
Certification:
CE ROSS
Name:
Armored Fiber Optical Patchcord
Model Number:
Amoured 9/125 LC-LC DX
Type Of Connector:
LC/UPC
Color Of Cable:
Blue
Wavelength:
1310 1550
Material:
LSZH, PVC
Wavelength:
1310nm/1490nm/1550nm
Cable Diameter:
3.0mm
Supply Ability:
1000+PCS+Per day
Highlight:

duplex fiber patch cord

,

duplex fiber patch cord

Product Description

Armoured Duplex Fiber Optical Patch Cord Indoor 3.0 Anti-rat Blue SOS DX LC/UPC



Application :

1; Telecommunication networks;

2; Local area networks; CATV;

3; Active device termination;

4; Data center system networks;



Features :

1; Comply with IEC, Telcordia-GR-326-Core standards;

2; Different size & color boot option;

3; Low insertion loss; High return loss;

4; 100% interferometer measurement;



Technology specification:

Technology specification Item Technology parameter
Cable type GJXFJPK-1~4B6a2
Tight buffer color Blue, orange, green, brown
Tight buffer diameter mm 0.85±0.05
Fiber type 9/125(G657A2)
Strength member Aramid yarns
Jacket thickness mm 0.80±0.10
Internal sub-cable Jacket color White
Cable outer sheath color Black (PANTONE 136C, ΔE≤4)
Jacket material LSZH SOS Armoured
Internal sub-cable 0.9(±0.1)
Cable diameter mm 3.0 (±0.2)
Cable weight Kg/km 15.0
Min. bending radius mm 10D
Attenuation dB/km ≦ 0.4at 1310nm, ≦ 0.3 at 1550nm
Short tension N 200
Short crush N/100mm 1000
Operation temperature ℃ -40~+70
Installation temperature ℃ -5~+60
Transportation and storage temperature ℃ -40~+70

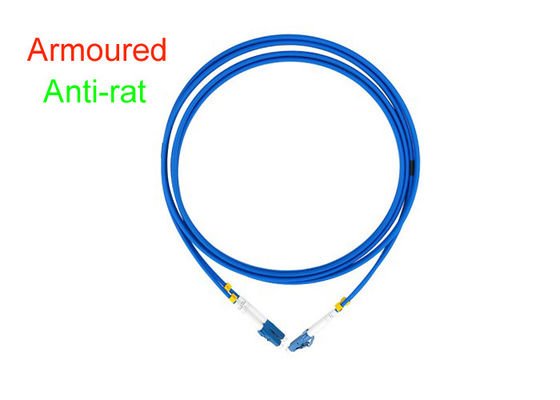

Armoured Duplex Fiber Optical Patch Cord Indoor 3.0 SOS DX LC/UPC Connector 0

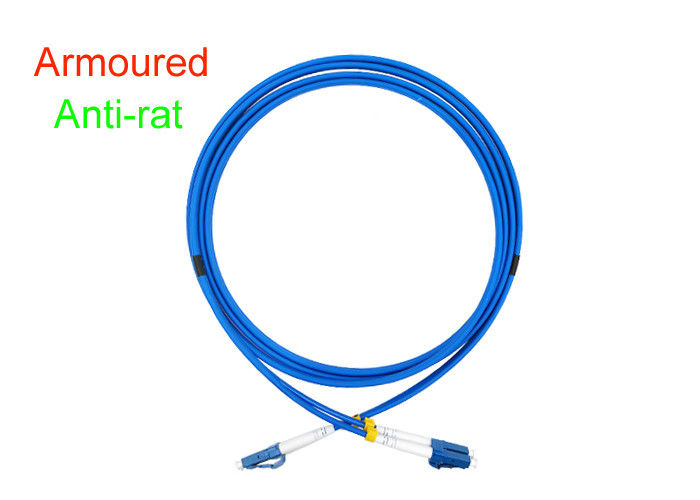

Armoured Duplex Fiber Optical Patch Cord Indoor 3.0 SOS DX LC/UPC Connector 1

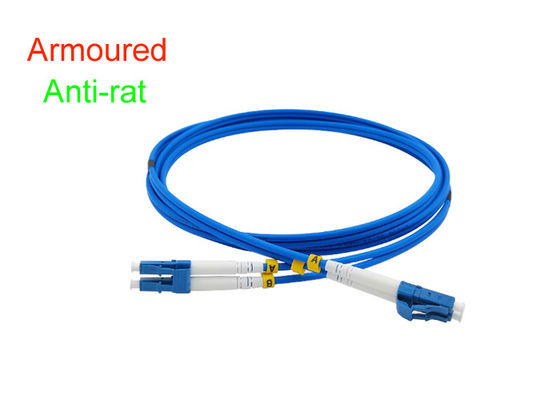

Armoured Duplex Fiber Optical Patch Cord Indoor 3.0 SOS DX LC/UPC Connector 2
