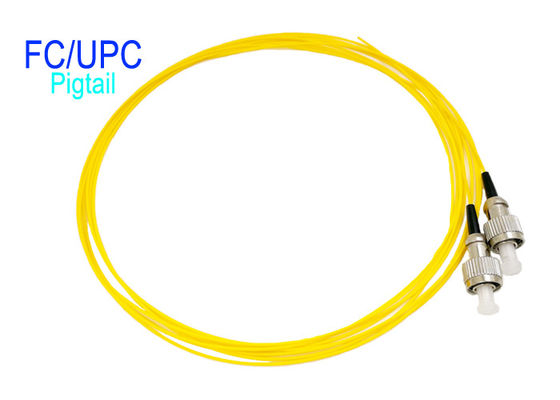

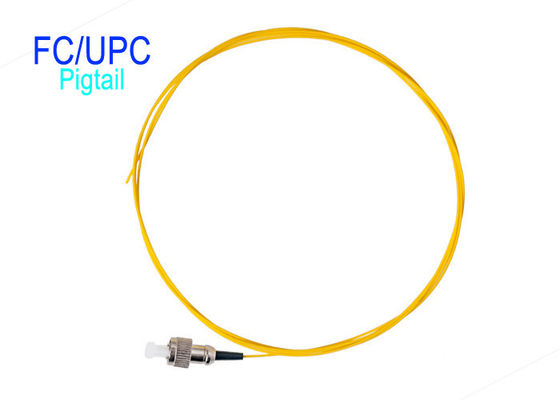

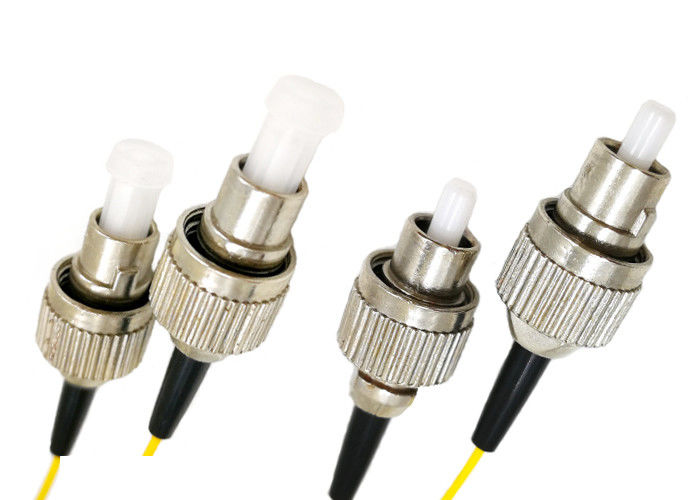

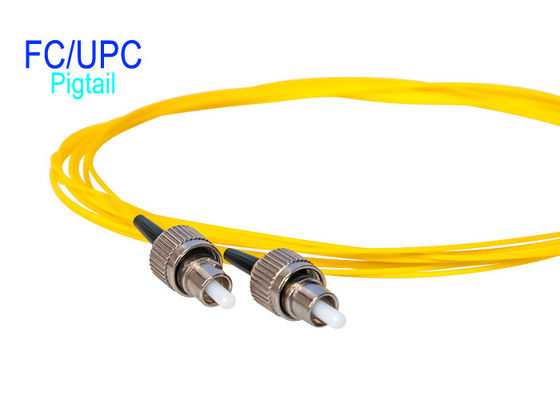

SM FC Fiber Optical Patch Cord Pigtail 0.9mm G657A1 Insertion 0.2 dB Return 55 dB

Brand Name:	KEXINT
Model Number:	KXT-PC-FC/UPC
MOQ:	1
Price:	$+0.286+1 PCS
Packaging Details:	1 pcs One bag , 250pcs One small box , 1500pcs one carton
Payment Terms:	D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

IS0 9001-2015

Name:

Fiber Optical Pigtail

Length Of Cable:

1m Or 1.5m

Type Of Fiber:

657A1 657A2 G657B3 G652D

Mode Of Fiber:

SM OM1 OM2 OM3 OM4

Insertion Loss:

0.2db

Reture Loss:

55 DB

Color:

Yellow

Model:

FC/UPC

Supply Ability:

2500 pcs 1day

Highlight:

duplex fiber patch cord

fiber patch cables

Product Description

FC/UPC Single Mode To Multimode Fiber Optical Patch Cord Pigtail 0.9mm OM1 G657A1 0.2 dB

Product Description:

Pigtail FC/UPC are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.
Key Features:
Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: 1260-1650nm

Wide Operating Temperature: -40°C - 85°C

High Reliability and Stability

Application :

1) FTTX Systems

2) PON Networks

3) CATV Links

4) Optical Signal Distribution

5) Local Areal Networks (LAN)
6) Fiber Communication Systems

Ordering Options:
1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7)Cable Type: PVC, LSZH.

Specification :

Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours

SM FC Fiber Optical Patch Cord Pigtail 0.9mm G657A1 Insertion 0.2 dB Return 55 dB 0

We can be customized by customers, and the labels are according to customer brand requirements!
Our production capacity: 10,000 pieces can be produced every day.
Our quality control: All products are end-face inspection, finished product testing, 3D equipment testing, guaranteed 100% qualified.
