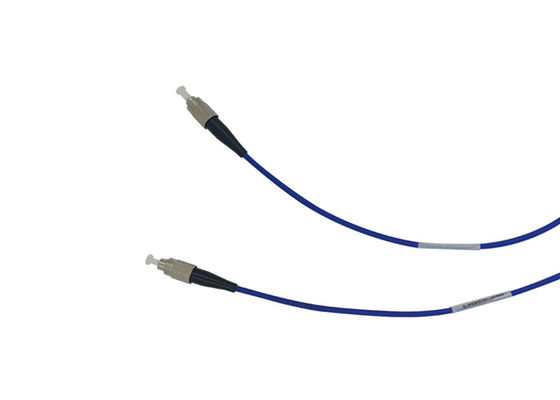

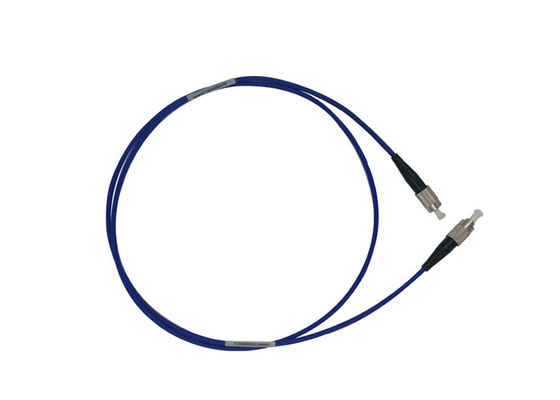

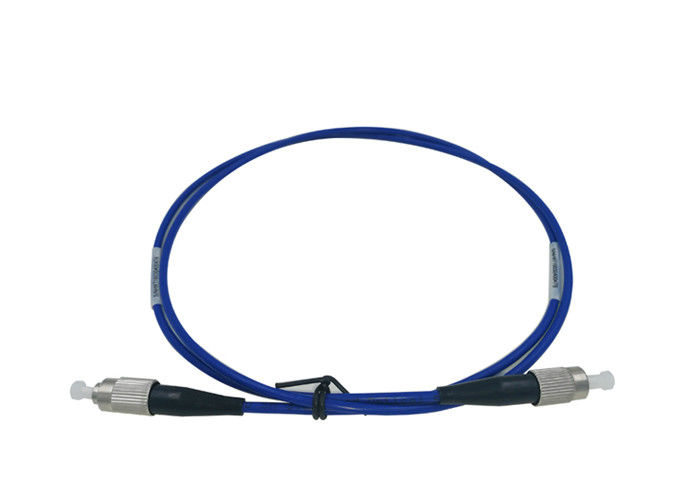

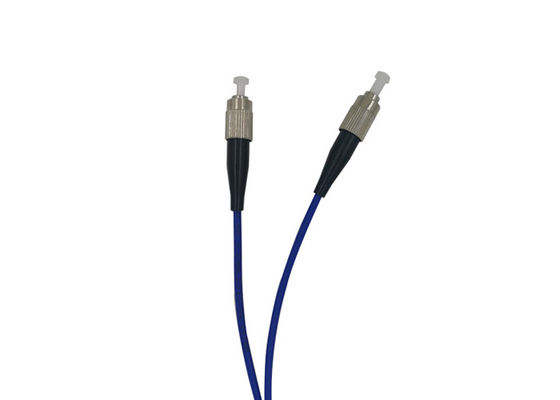

Indoor FC/UPC Armoured MM Fiber Patch Cord Cable Multimode 1 Meter PVC LSZH 100% 3D Test

Brand Name:	KEXINT
Model Number:	KXT-PC-FC-Armored
MOQ:	1
Price:	$+1.5+1PCS
Packaging Details:	383842cm Carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

ISO-9001-2015

Connector Type:

FC-UPC-FC/UPC

Buffer Material:

PVC Or LSZH

Length:

Optical Fiber Type:

G652D

Colour:

Blue

Return Loss:

65 DB

Cable Size:

0.9 Mm

Test:

3D 100%

Supply Ability:

10000+pcs+1day

Highlight:

duplex fiber patch cord

Product Description

Indoor FC/UPC Armoured MM Fiber Patch Cord Cable Multimode 1 Meter PVC LSZH 100% 3D Test

Optical fiber jumpers can be divided into common silicon-based optical fiber single-mode and multi-mode jumpers according to the different transmission media, as well as other optical fiber jumpers such as plastic, etc .; according to the structure of the connector, they can be divided into: FC Jumper, SC jumper, ST jumper, LC jumper, MTRJ jumper, MPO jumper, MU jumper, SMA jumper, FDDI jumper, E2000 jumper, DIN4 jumper, D4 jumper, etc. form. The more common fiber jumpers can also be divided into FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, SC-ST and so on.
Single-mode fiber: General fiber jumpers are shown in yellow, connectors and protective sleeves are blue; transmission distance is longer.
Multi-mode fiber: General fiber jumpers are shown in orange, and some are shown in gray. The connectors and protective sleeves are beige or black; the transmission distance is short.

1 Applications:

Local Area Network (LAN)

Data communication network

Telecommunication optical transmission network

Optical access network(OAN)

Active device termination

Fiber optics data transmission

Test Equipment and CATV

Gigabit Ethernet

2. Optical Fiber Patch Cord Characteristics

2.1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

2.2 Ferrule End-face: PC,UPC,APC

2.3 Core Type: Single-mode (SM: 9/125um):G652D,G657A

Multimode(MM: 50/125um,62.5/125um,OM3 or OM4)

2.4 Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...

2.5 Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm

2.6 Cable Length: 1, 2, 3 meter or customized

2.7 Sheath Type: PVC, LSZH , OFNR, OFNP, Plenum ,Armored…

3 . Connector Specification

Specification	Unit	SC, FC, LC			ST, MU, MT-RJ,SMA		MTP,MPO		E2000
		Single-mode		Multimode	Single-mode	Multimode	Multimode	Single-mode	Single-mode
		UPC	APC	PC	UPC	PC	PC	APC	UPC	APC
Insertion loss	dB	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.7	≤0.75	≤0.3	≤0.3
Return loss	dB	≥50	≥60	≥30	≥50	≥30	≥25	≥45	≥55	≥75
Wavelength	nm	1310/1510			1310/1510		1310/1510		1310/1510
Interchangeability	dB	≤0.2			≤0.2		≤0.2		≤0.2
Vibration	dB	≤0.2			≤0.2		≤0.2		≤0.2
Operating temperature	℃	-40~75			-40~75		-40~75		-40~75
Storage temperature	℃	-45~85			-45~85		-45~85		-45~85
Cable diameter	mm	φ3.0,φ2.0,φ0.9			φ3.0,φ2.0,φ0.9		φ3.0,φ2.0,φ0.9		φ3.0,φ2.0,φ0.9

4. Optical Cable Color

Indoor FC/UPC Armoured MM Fiber Patch Cord Cable Multimode 1 Meter PVC LSZH 100% 3D Test 0

5. Color of connector

Special fool-proofing design equal to HUAWEI Mini SC connector has blind-mating function; One hand Bayonet-style mechanical latch. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch. It provides quick installation solutions and has good performance on mating receptacle / Adapter. Cable can be armoured or non-amoured. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications.

Indoor FC/UPC Armoured MM Fiber Patch Cord Cable Multimode 1 Meter PVC LSZH 100% 3D Test 1
