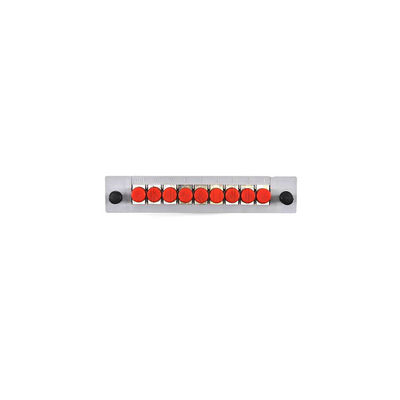

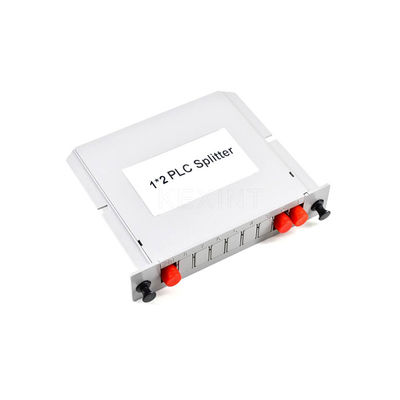

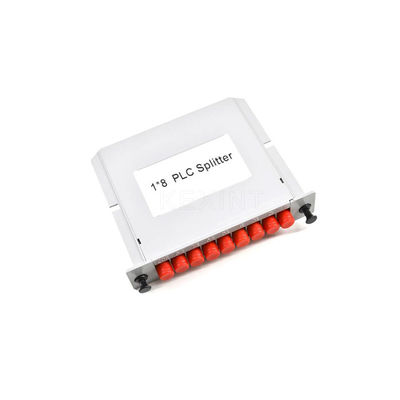

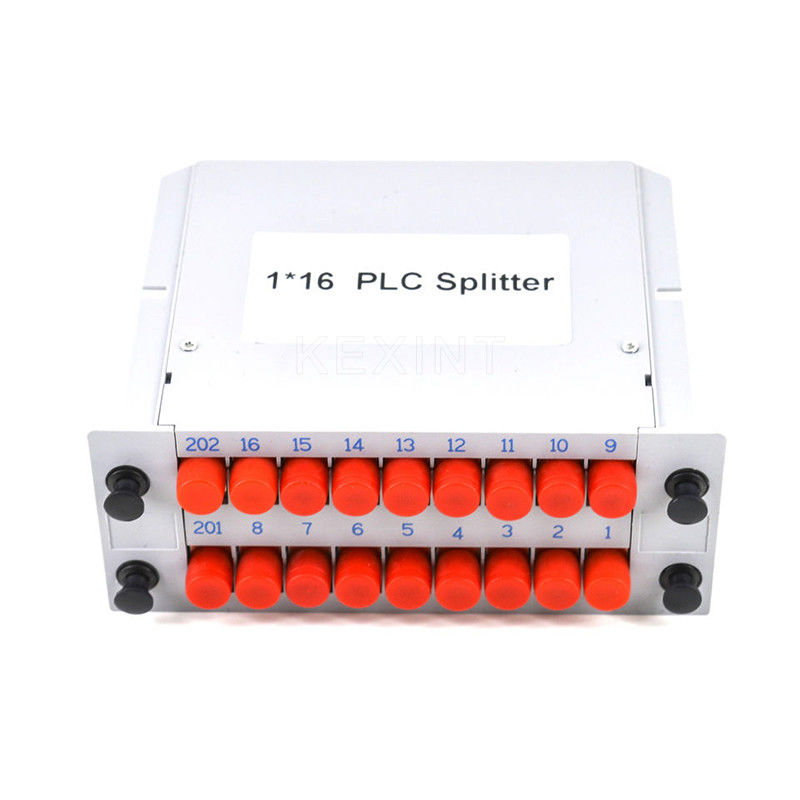

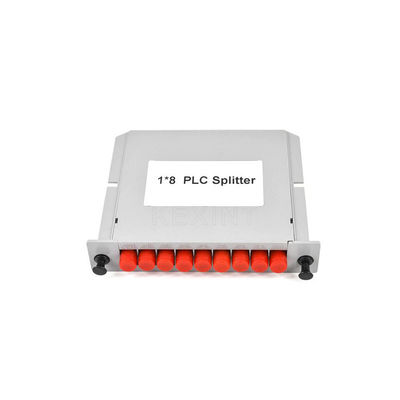

KEXINT FTTH Cassette Insert Type Fiber Passive PLC Splitter 1x2 1x4 1x8 1x16 1x32 FC
  • name
  • name
  • name
  • name
  • name
  • name

KEXINT FTTH Cassette Insert Type Fiber Passive PLC Splitter 1x2 1x4 1x8 1x16 1x32 FC

Brand Name: KEXINT
Model Number: FC PLC
MOQ: 50+pcs
Price: 3.24 dollars/pcs
Packaging Details: box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong
Certification:
CE Iso-9001 Ross UL
Type Of Fiber:
G657a1,g652d
Type Of Connector:
FC
Wavelenth:
1260-1650nm
Operating Temperature:
-40℃~85℃
Supply Ability:
5000+pcs+1week
Highlight:

FTTH Cassette Insert Type PLC Splitter

,

Fiber Passive PLC Splitter 1x2

,

FC 1x32 PLC Splitter

Product Description
Description:

PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.

Features:

Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package

Applications:

FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems


Product parameters:
Types
1x2
1x4
1x8
1x16
1x32
Test wavelength
1310nm
Working wavelength
1260nm~1650nm
Interface model
SC/UPC
Insertion loss (dB) (P/S level)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
Loss uniformity (dB)
0.4
0.6
0.8
1.2
1.5
Return loss (dB) (P/S level)
55/50
55/50
55/50
55/50
55/50
Polarization dependent loss (dB)
0.2
0.2
0.2
0.25
0.25
Directionality (dB)
55
55
55
55
55
Wavelength dependent loss (dB)
0.3
0.3
0.3
0.3
0.3
Temperature stability (dB)
0.4
0.4
0.4
0.4
0.4
Features
Good temperature stability
Low insertion loss, high return loss
Good interchangeability, good repeatability







Our advantages:


1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.

2.OEM&ODM: We can help you to design or put your logo and company name into products.

3.Remote Technical support&Full Technical Document

4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

5.English software, English Indicator

6.Professional, Very competitive price

7.Large Stock, Fast Delivery

8.Quality Assurance
