UPC Fiber Optic PLC Splitter Mini Module 1650 Operting Wavelength Max

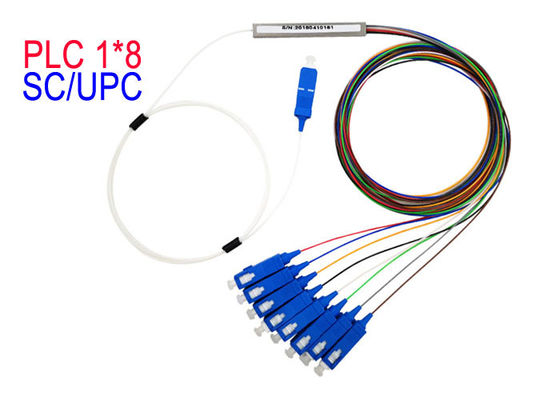

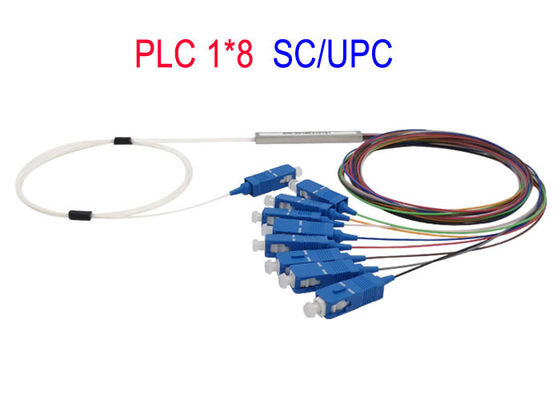

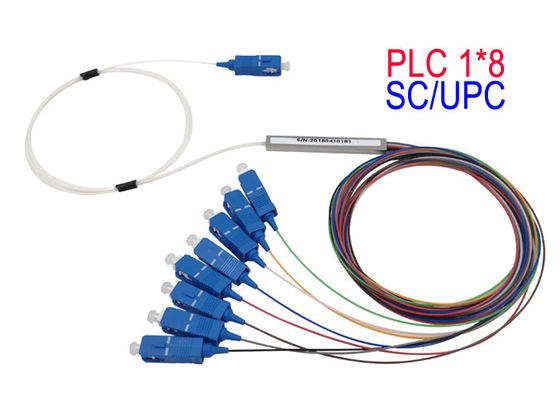

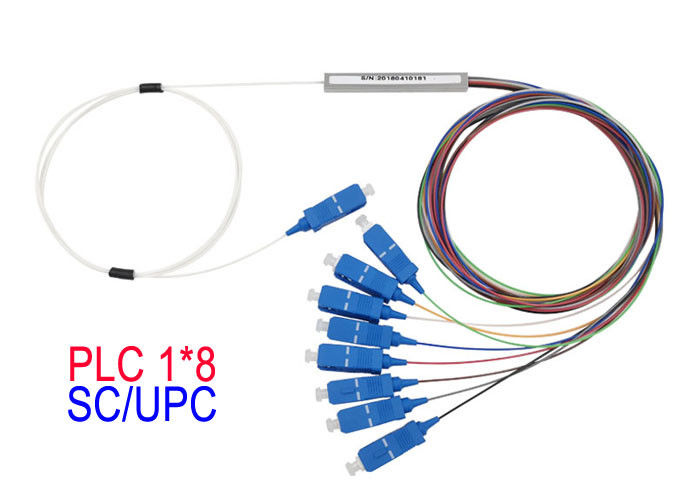

1×8 Fiber Optical PLC Splitter 1*8 0.9 SC/UPC Mini Module 0.9 G657A1 Hytrel Color of cable
     PLC 1×8 Single Mode Fiber Optical Splitter SC/UPC Connector splitter plc Neutral package or Customzied packing way. then put into a carton.KEXINT provides a various of 1×N and 2×N PLC splitters, They are all with superior optical performance, high stability and high reliability to meet various application requirements. PLC 1×8 Single Mode Fiber Optical Splitter SC/APC Connector splitter plc Neutral package or Customzied packing way. then put into a carton.Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector.

Features:


Performance Index


1×8 Single Mode PLC Splitter Data Sheet
Operating Wavelength(nm)		1260-1620		Inspected Date		2018/3/8
P/N:		PLC-BL-1X8		S/N:		20180308001
Fiber Type		G657A1		Fiber Length(m)		≥1.0
Connector Type		SC/APC		Package Dimension(mm)		60*7*4
Storage Temperature		-45～+85℃		Operating Temperature		-40～+85℃
Item		IL(dB)		PDL(dB)		RL(dB)
Wavelength(nm)		1310	1550	1310	1550	1310	1550
Spec.		MAX 10.5		MAX 0.3		≥55
Port1		9.97	9.69	0.11	0.07	Pass	Pass
Port2		10.03	9.72	0.02	0.05	Pass	Pass
Port3		9.76	9.73	0.15	0.17	Pass	Pass
Port4		9.66	9.62	0.15	0.09	Pass	Pass
Port5		9.61	9.71	0.04	0.02	Pass	Pass
Port6		9.91	10.03	0.02	0.08	Pass	Pass
Port7		9.62	10.00	0.12	0.09	Pass	Pass
Port8		9.96	9.97	0.07	0.02	Pass	Pass
Input
MAX.		10.03	10.03	0.15	0.17	N/A
MIN.		9.61	9.62	0.02	0.02	N/A
Average		9.82	9.81	0.08	0.08	N/A
Uniformity(≤0.8dB)		0.42	0.40	Directivity(dB)		≥55











Our advantage : 1:We are a factory with more than 200 employees and short delivery times.

                          2:The product has passed strict testing and the quality is guaranteed.

                          3:South Korea imports chips, work is more stable;
