Powered FTTH Passive Fiber Optic Splitter UPC 0.9mm 55 DB Return Loss

Brand Name:	KEXINT
Model Number:	PLC-1*16-SC/UPC
MOQ:	Negotiation
Price:	Negotiation
Packaging Details:	Plastic blister box /carton
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

ISO-9000

Tube Material:

Hytrel

Type Of Fiber:

G657A1

Type Of Connector:

SC/UPC

Insertion Loss:

13.8

Typical Of PDL:

0.15db

Return Loss:

55 DB

Operating Temperature:

-40+80

Fiber Length:

1.5m

Supply Ability:

800+PCS+1day

Highlight:

abs plc splitter

plc optical splitter

Product Description

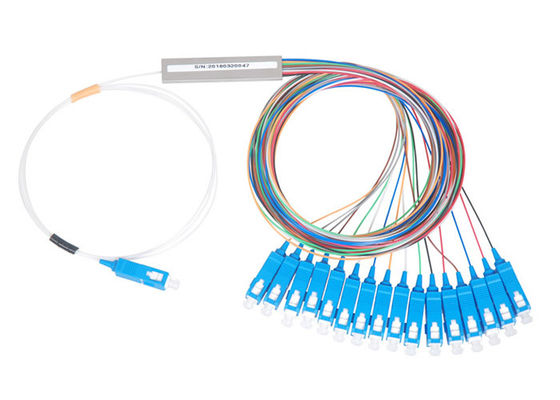

1×16 Mini Module 0.9mm cable Fiber Optical PLC Splitter 1*16 0.9 SC/UPC Miniature Optical splitter G657A1 Hytrel

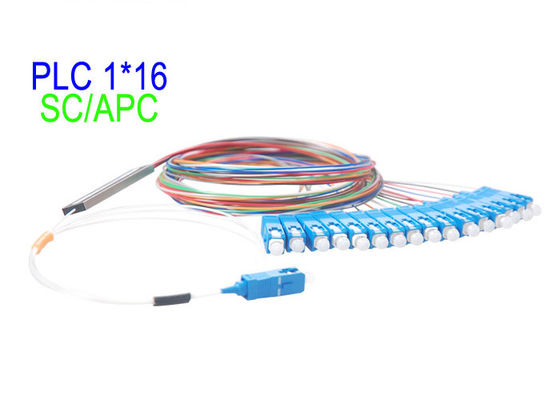

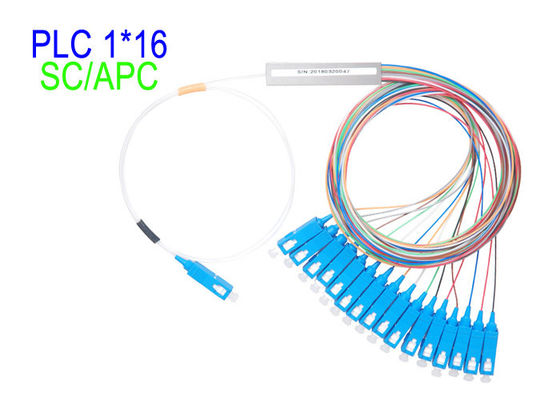

PLC 1×16 Single Mode Fiber Optical Splitter SC/APC Connector splitter plc Neutral package or Customzied packing way. then put into a carton.
Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector.

Features

·  Low insertion loss
·  Low Polarization Dependent Loss
·  Excellent Environmental Stability
·  Excellent Mechanical Stability
·  Telcordia GR-1221 and GR-1209
·  Optional connectors termination upon request
·  Available in 250um & 900um fiber, 2mm or 3mm

Application:

Fiber to The Home (FTTH)

Passive optical networks (PON)

Local Area Networks (LAN)

Cable Television (CATV)

Specifications

1XN PLC Specifications
Port Configuration		1x2	1x4	1x8	1x16	1x32	1x64
Fiber Type	G652D/G657
Operating Wavelength(nm)	1260-1650
Insertion Loss(dB)	Typical	3.9	7.2	10.3	13.6	16.7	20.2
Insertion Loss(dB)	Max	4.1	7.4	10.5	13.8	16.9	20.4
Loss Uniformity(dB)	Max	0.6	0.8	0.8	1.0	1.5	1.8
Return Loss(dB)	Min	55	55	55	55	55	55
Polarization Dependent Loss(dB)	Max	0.3	0.3	0.3	0.3	0.3	0.4
Directivity(dB)	Min	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	Max	0.3	0.3	0.3	0.5	0.8	0.8
Temperature Dependent Loss (-40~+85℃)(dB)	Max	0.5	0.5	0.5	0.5	0.8	1.0
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85
Package Dimension(mm)	Fan-out	60x7x4	60x7x4	60x7x4	60x7x4	80x20x6	100x40x6
	Bare	40x4x4	40x4x4	40x4x4	50x7x4	50x7x4	60x12x4
	Module	100x80x10	100x80x10	100x80x10	120x80x18	120x80x18	141x115x18
	Chassis	40x4x4	40x4x4	40x4x4	50x7x4	50x7x4	60x12x4

Powered FTTH Passive Fiber Optic Splitter UPC 0.9mm 55 DB Return Loss 0

Our advantage :

1: We are a factory with more than 200 employees and short delivery times.

2: The product has passed strict testing and the quality is guaranteed.

3: South Korea imports chips, work is more stable;

4: 100% support after-sales service, if there is a problem in the product use process, we can replace it for you for free.

Why Choose Kexint?

Quality system of ISO900,CE,FCC,ROHS registration
Manufacture system
R&D system
Purchasing system
Prompt delivery and remarkable services
Reasonable prices
Accept orders according to customer's demands
Rich experience of OEM & ODM co-operation
