Name: Coloured Passive Optical Splitter Fiber Separation Low Insertion Loss
Brand: 深圳市科信通技术有限公司
SKU: KXT-PLC-1×16
Availability: InStock

Home Products Fiber Optic PLC Splitter

Coloured Passive Optical Splitter Fiber Separation Low Insertion Loss

Product Details:

Place of Origin:	SHENZHEN
Brand Name:	KEXINT
Certification:	ISO9001-2008
Model Number:	KXT-PLC-1×16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	13010050 plastic containers
Delivery Time:	8
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	800+pcs+1day

Contact Now

Detailed Product Description

Working Wavelength:	1260-1650nm	Type:	1x16
Splitter Ratio:	1x2 .1x4 ，1x8， 1x16， 1x32，1x64，1x128	Connector:	SC FC LC ST /APC /UPC
Insertion Loss:	≤13.9dB	Application:	FTTH FTTB FTTX Network
Product Name:	PLC 1*16	Size:	13010050 Mm
Highlight:	fiber optic plc splitter , abs plc splitter

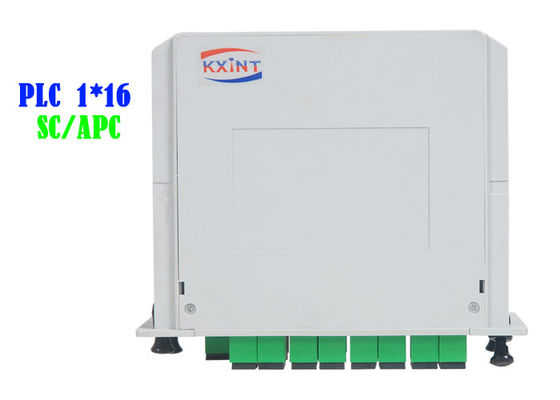

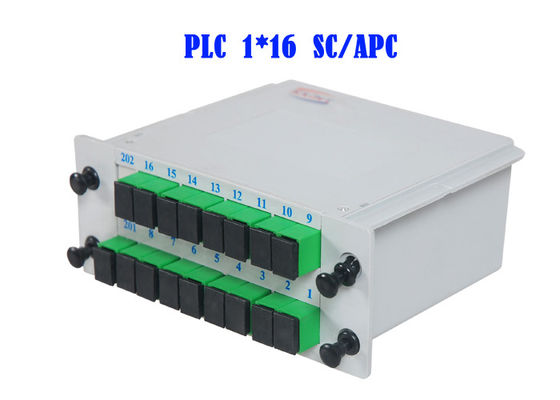

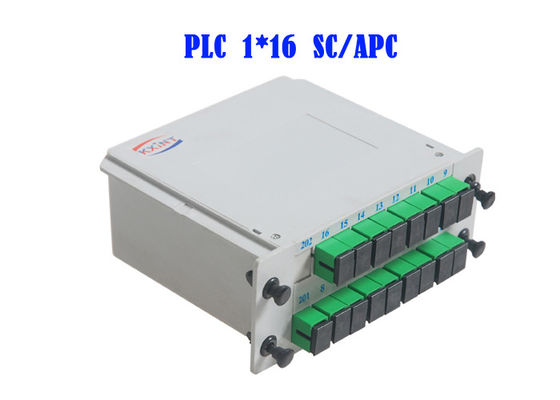

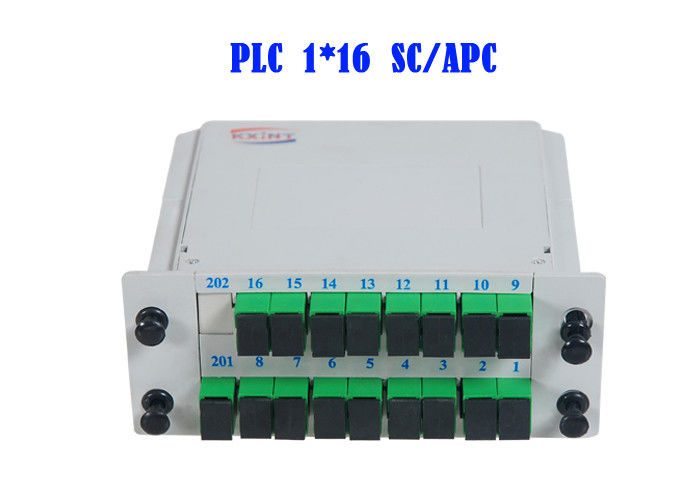

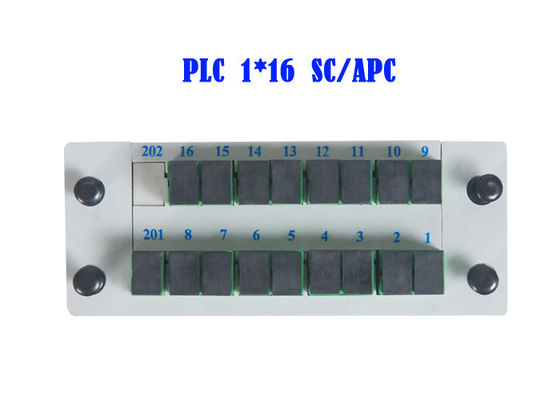

PLC 1×16 Fiber Optical Splitter SC/APC LGX 1260 ~ 1650 1*16 Colour Fiber Separation

PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.

Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector.

Features

· Low Insertion loss

· Low PDL Compact Design
· Good channel-to-channel uniformity

· Wide Operating Wavelength: From 1260nm to 1650nm
· Wide Operating Temperature: From -40℃ to 85℃
· High Reliability and Stability

Applications:

· FTTX Systems

· PON Networks

· CATV Links
· Optical Signal Distribution

Specifications

Fiber Optic PLC Splitter technical specifications
Model name	KXT-PLCA-2665
Wavelength(nm)	1260-1650nm
Free Sample	YES
Material	PVC;ABS
Design	OEM & ODM
Specifications	A (2.4.8 port) : 60L7W4H mm
	B (16 port ) : 60L12W4H mm
	C (32 port ) : 80L20W6H mm
Connectors	FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
	fiber optic connectors are available
Parameters	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	≤4.2	≤7.4	≤10.7	≤13.9	≤17.2	≤21.5	≤24
PDL (dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Uniformity (dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss (dB)	≥50
Directivity (dB)	≥55
Temperature Range (°C)	-40~+75
Storage Temperature (°C)	-40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.
