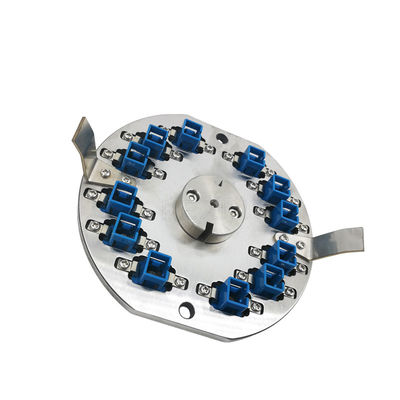

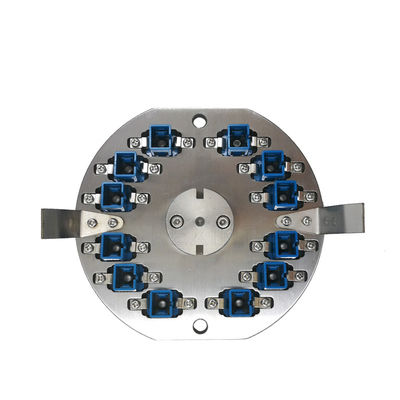

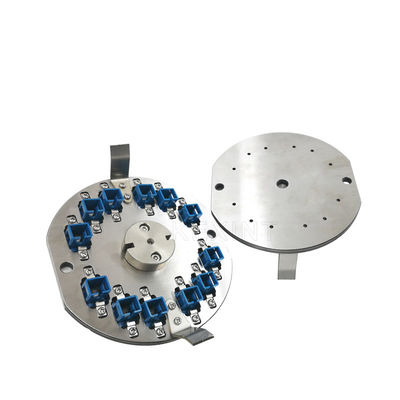

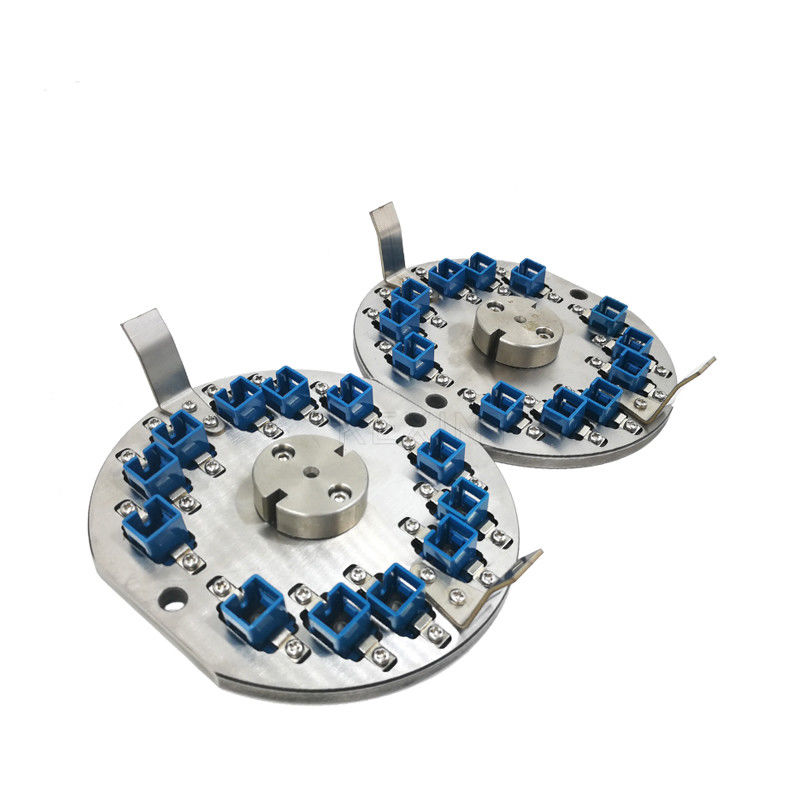

KEXINT FTTH SC/PC Patch Cord Pigtail Fast Connector Ferrule Fiber Optic Polishing Jig Polishing Fixture

This Fiber polishing fixture using high quality steel with heated treat, the hardened steel providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC,and E2000, etc, and also according to the customer request.
The fiber polishing fixture pass rate with Interference> = 98% .This fiber polishing fixture is high stability and good surface quality.
Features :
1.Designed for SC/PC(UPC) connectors.
2.Easy to change jigs, simple and flexible to operate.
3.High efficiency, polishing Max 12 connectors in one cycle.The first pass yield for end face quality reach 98%～100%
4.The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate
with Interference> = 98% (100% Typical, according to IEC),
5.APC return loss ≥60dB , UPC return loss ≥55dB , Insertion loss ≤0.20dB ( typical)
6.The accessories on the fixture can be replaced, Greatly extend the service life.
7.Fiber polishing fixture using high quality steel with heated treat, the hardened steel S136 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.
