Name: KEXINT 1X9 Optical Splitter Box Fiber Optic Distribution Box With Mini SC Preconnected
Brand: 深圳市科信通技术有限公司
SKU: KXT-10A
Price: 8.64 USD
Availability: InStock

Home Products Fiber Optic Distribution Box

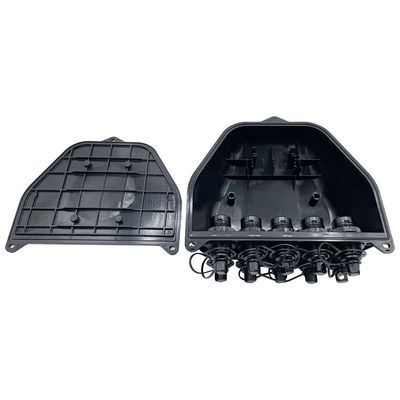

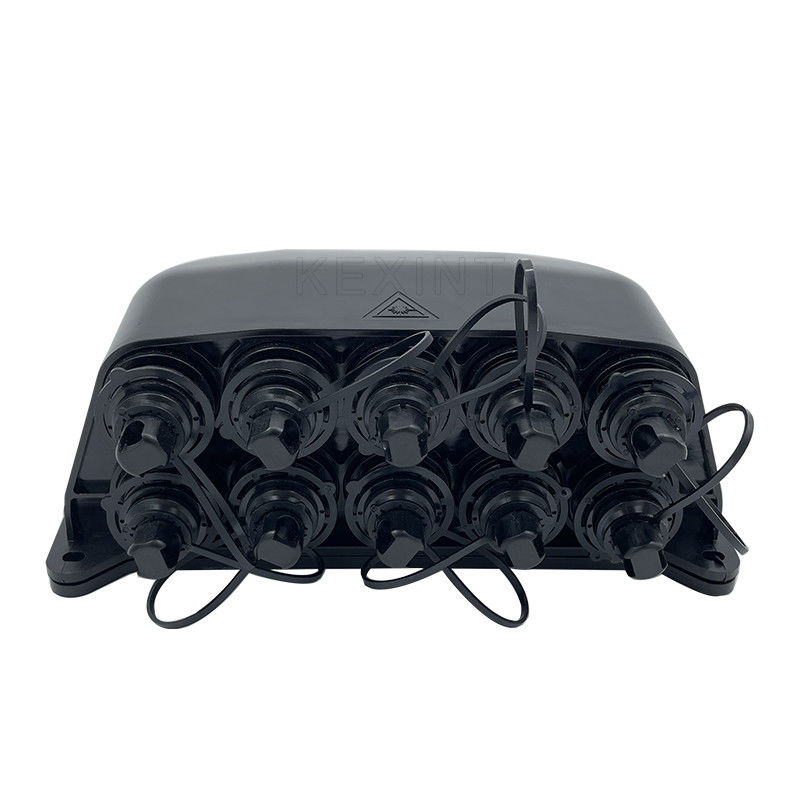

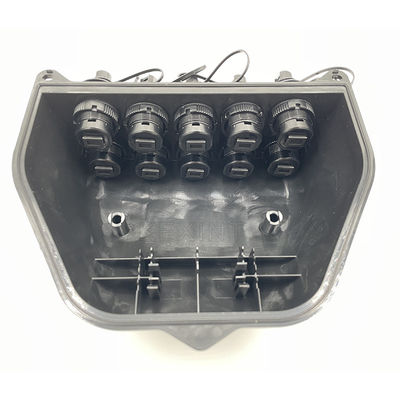

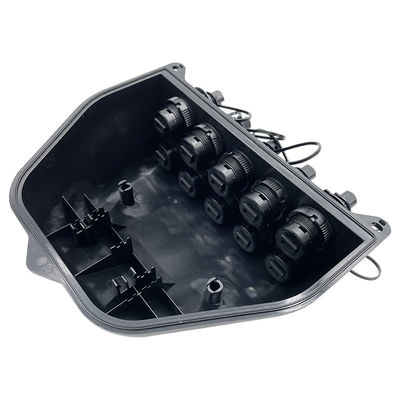

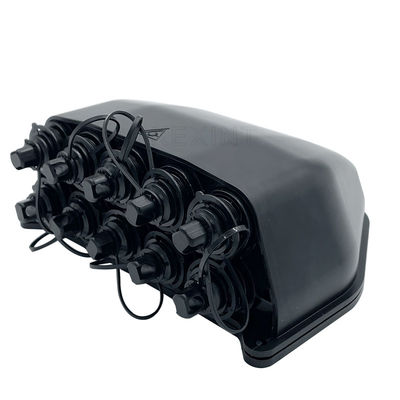

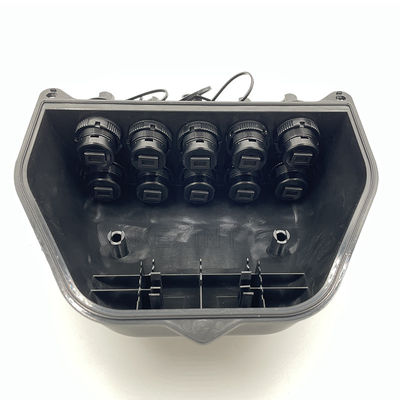

KEXINT 1X9 Optical Splitter Box Fiber Optic Distribution Box With Mini SC Preconnected

Product Details:

Place of Origin:	CHINA
Brand Name:	KEXINT
Certification:	CE Iso-9001 Ross UL
Model Number:	KXT-10A

Payment & Shipping Terms:

Minimum Order Quantity:	50+pcs
Price:	8.64+$+piece
Packaging Details:	box
Delivery Time:	8
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:	1000+PCS+Day

Contact Now

Detailed Product Description

Dimensions:	21020488mm	Color:	Black
Max Capacity:	1x9	Installation Method:	Wall-mounted
Metrail:	PC ABS	Waterproof Grade:	IP68
Connector Type:	Huawei Connector
Highlight:	1X9 Optical Splitter Box , PC ABS Optical Splitter Box , SC Preconnected Fiber Optic Distribution Box

Fiber access termination box KXT-10A is able to hold up to 9 subscribers. It is used as a termination point for 1 x ISP cable to connect with 1 x OSP cable and 9 x drop cable in FTTx network system. It integrates fiber splicing, splitting, storage, and cable management in one solid protection box.

Specification:

 Total enclosed structure

 Material: PC+ABS,wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68

 Plug-and-play installation, easy for maintenance and expansion

 10 x reinforced adapters for drop cable with reinforced connectors.

 The compact design integrates distribution, splicing, splitting 3-in-1

 Designated position for the placement of 1:2 and 1:8 PLC splitter

 Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Model	KXT-10A
Dimensions(LxWxH)	21020488mm
Ingress Protection	IP68
Max Capacity	PLC Splitter 1pcs 1x2 FBT + 1pcs 1x8 Splitter
Reinforced Adapter	10 pcs
Ctn Size(cm)	464657
Each Ctn Qty(pcs)	20
