Name: 24 Core Fiber Optic Distribution Box Terminal Box ODN FTTH IP65 With Patch Cord Pigtail
Brand: 深圳市科信通技术有限公司
SKU: KXT-24A
Price: 13.38 USD
Availability: InStock

Home Products Fiber Optic Distribution Box

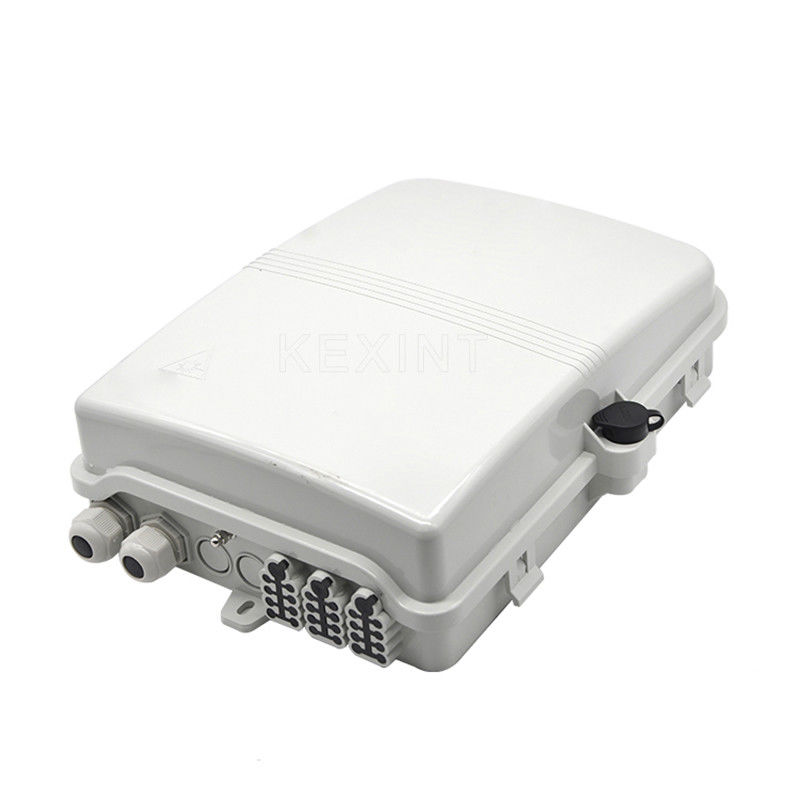

24 Core Fiber Optic Distribution Box Terminal Box ODN FTTH IP65 With Patch Cord Pigtail

Product Details:

Place of Origin:	Guangdong
Brand Name:	KEXINT
Certification:	CE Iso-9001 Ross UL
Model Number:	KXT-24A

Payment & Shipping Terms:

Minimum Order Quantity:	10+pcs
Price:	13.38+$+piece
Packaging Details:	box
Delivery Time:	8
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:	1000+PCS+Day

Contact Now

Detailed Product Description

Connector Type:	SC,LC,FC	Material:	ABS+PC
Install:	Wall Mounted Or Pole Mounted	Waterproof Level:	IP 65
No. Of Fiber:	24 Cores	Cable Ports:	2 In 24 Out
Size:	340270100mm	Weight:	1.25 Kg
Highlight:	24 Core Fiber Optic Distribution Box , ODN FTTH Fiber Optic Distribution Box , Fiber Optic Terminal Box IP65

Fiber optic splitter termination box,It is often deployed in FTTH applications for connecting feeder and distribution cables through optical splitters. And it can distribute cables after installing splitters and also can draw out room fiber optic cables in direct or cross-connections. The splitter termination box is suitable for fiber terminal point to complete connection, distribution and scheduling between perimeter fiber cables and terminal equipment, especially suitable for mini-network terminal distribution. Therefore, it is widely applied in FTTH indoor and outdoor terminal applications.

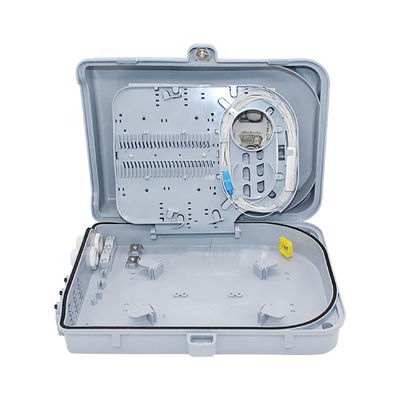

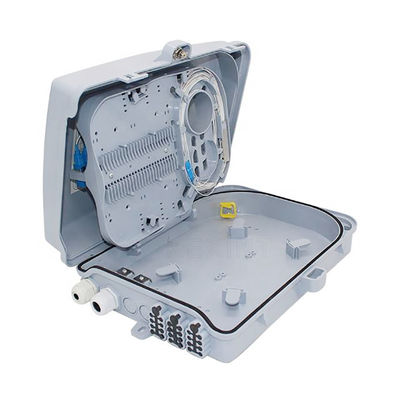

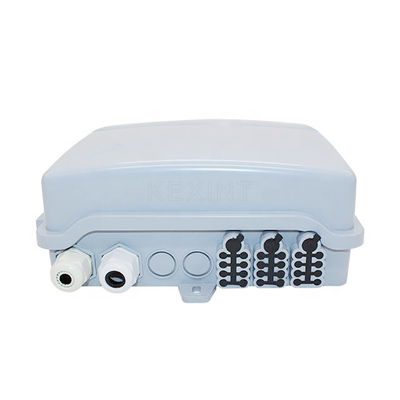

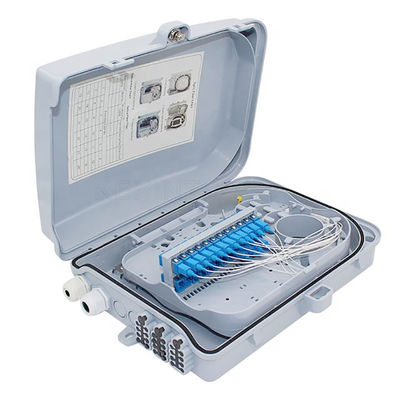

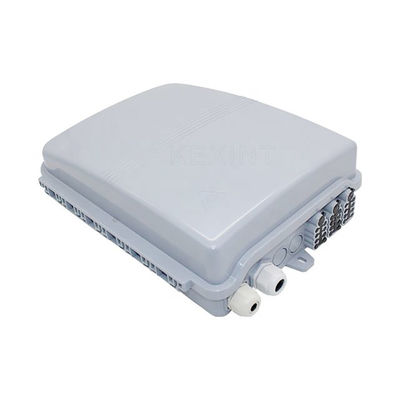

Structure Features:

1 Splice and patch cord use Separation structure, easy to Capacity expansion and maintenance；

2 High quality plastic,Beautiful appearance；

3 Internal turnover structure,easy to maintenance；

4 Can install 24 pcs of SC adapters；

5 Can install mini type splitter

6 Could exit 24 pcs of drop cable；

7 Protection levels:IP65

Application :

* Telecommunication Networks.

* Communication System.

* Test Equipment.

* Fiber CATV.

* FTTH.

Dimensions and Capacity
Dimensions (HWD)	340mm270mm100mm
Color	White/Black/Grey
Weight	1.25 kg
Adapter Type	SC Simplex/LC Duplex
Adapter Capacity	24 pcs
Splitter Type	18/116 mini type splitter
Number of Cable Entrance(s) and Exit(s)	4/16
Cable inlet caliber	Two inlets are 16mm and the other two are 12mm
Optional Accessories	Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter
Working Temperature	-40°C～+65°C

Shipping Information
Package Contents	Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; Wall mount accessories, 1 set
Package Dimensions(WHD)	300mm195mm100mm
Material	Carton box
Weight	1 KG

Our advantages:

Good reply: Your inquiry related to our products or price will be replied within 24 hours.

OEM&ODM: We can help you to design or put your logo and company name into products.

Remote Technical support&Full Technical Document

Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

English software, English Indicator

Professional, Very competitive price

Large Stock, Fast Delivery

Quality Assurance
