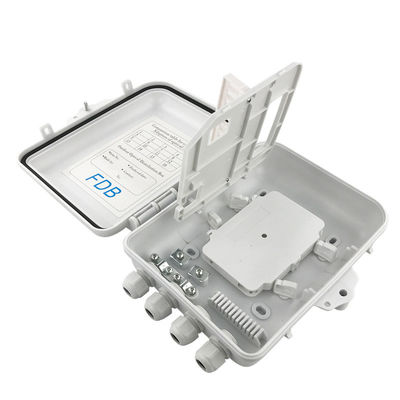

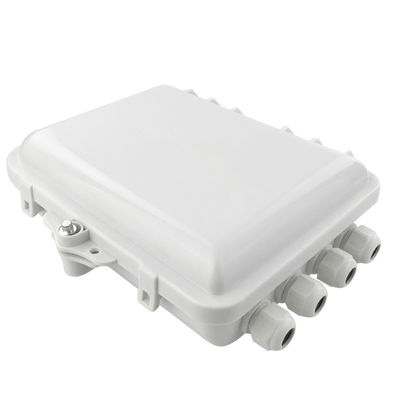

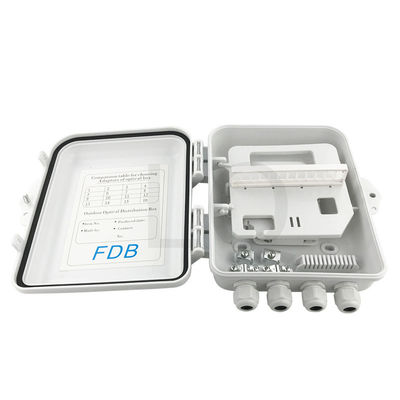

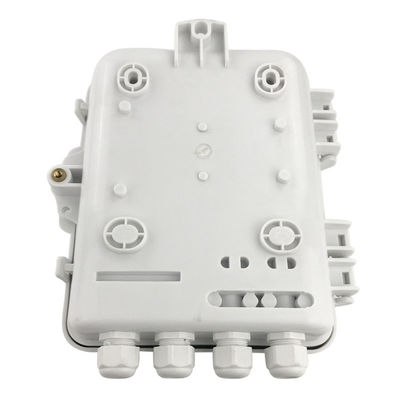

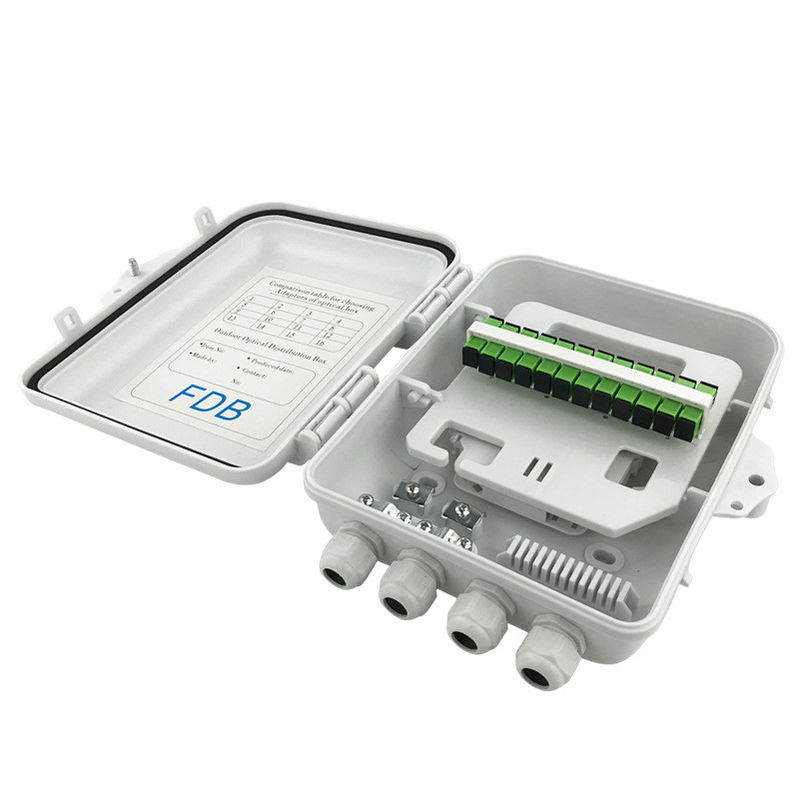

KEXINT FTTH 12 Core Terminal Box Fiber Optic Wall Mount Distribution Box

Brand Name:	KEXINT
MOQ:	10+pcs
Price:	5.24

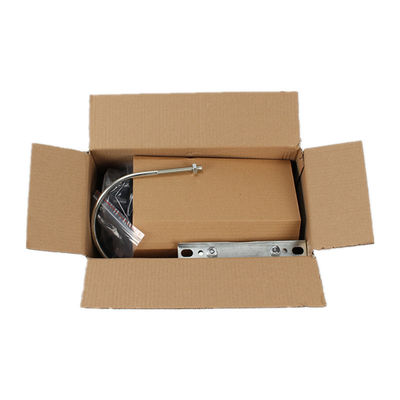

Packaging Details:	box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE Iso-9001 Ross UL

Capacity:

12 Ports

Color:

White

Material:

ABS

Connector Type:

SC FC LC ST

Feature:

Waterproof Dustproof

Weight:

0.5kg

Size:

260*225*85mm

Certification:

CE/ROHS/ISO9001

Operating Temperature:

-40℃~85℃

Supply Ability:

5000+pcs+1week

Highlight:

FTTH 12 Core Terminal Box

Fiber Optic Distribution Box 12 Ports

Fiber Optic Wall Mount Distribution Box

Product Description

The optical fiber distribution box is an interface device used to connect the backbone optical cable and the distribution optical cable outdoors, in the corridor or indoors. The fiber distribution box must be able to work reliably in the specified environment, and its box can withstand a vertical pressure of not more than 500 N.

Features:

1.Total enclosed structure, be in nice shape.

2.Material: PC+ABS or ABS, wet-proof, water-proof, dust-proof, anti-aging.

3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc. all in one.

4.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.

5.Distribution panel can be flipped up, fiber cable can be placed in a cup-joint way, easy for maintenance and installation.

6.Most of the types can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

7.Distributing optic into 2 paths by PLC splitter, protecting optic fiberto terminal, easy to operate.

8.Can be installed with PLC splitter, optional splice tray, lock with a key

9.Entering fiber cables of 2 cores capacity fuse and splice with pigtails, connecting PLC splitter pigtails.

10.FTTH cable connecting the PLC splitter pigtails through SC, FC, LC duplex adapters panel, entering into building or home.

11.IP 65 Protection Rating, antirust, dust proof, impact resistance, excellently stable performance, long lifespan.

12.OEM and customer's designation are acceptable

Applications:

Optical LAN & WAN & CATV



FTTH project & FTTX



Testing instruments



Optical fiber communication networks



PON Networks



6.Optical Signal Distribution

Specification:


						item

						value

						Model Number

						KXT-12A

						Application

						FTTH FTTX Network

						Product name

						12C Fiber Optic Distribution Box

						Capacity

						12 Ports

						Place of Origin

						Guangdong

						Color

						White

						Material

						ABS

						Connector Type

						SC FC LC ST

						Operating temperature

						40~+85

						Feature

						Waterproof Dustproof

						Weight

						0.5kg

Our advantages:

1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.

2.OEM&ODM: We can help you to design or put your logo and company name into products.

3.Remote Technical support&Full Technical Document

4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

5.English software, English Indicator

6.Professional, Very competitive price

7.Large Stock, Fast Delivery

8.Quality Assurance
