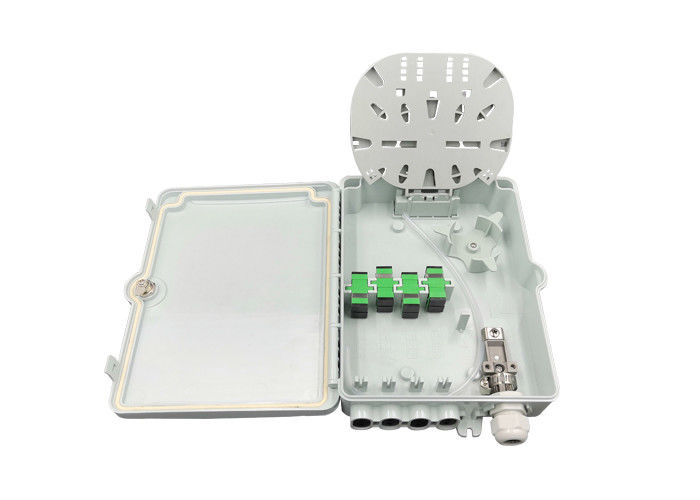

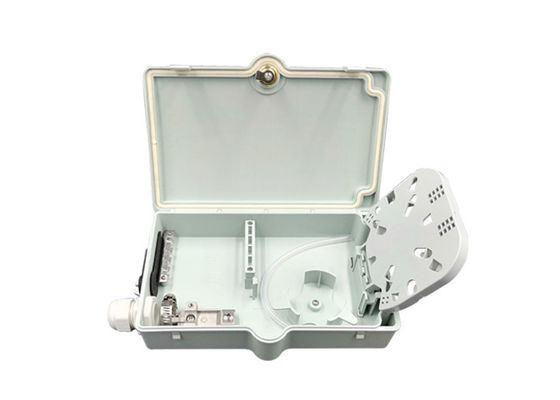

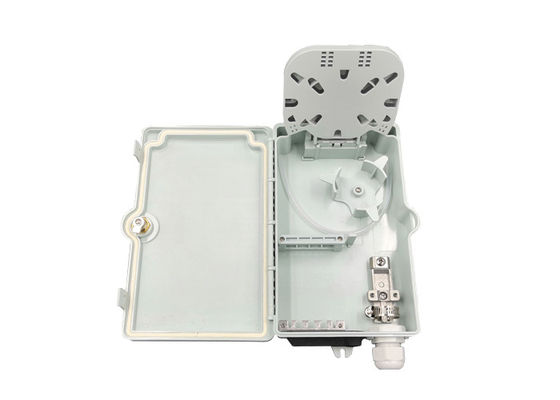

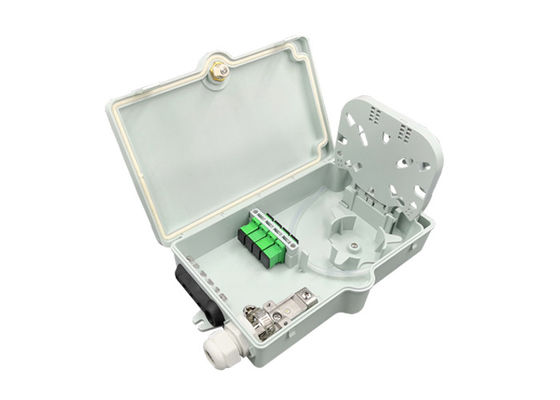

Wall Mount Fiber Optic Distribution Box Hoding Pole 4 Cores White Black Color IP65

Wall Mountting Hoding Pole 4 Cores FTTH Fiber Optical Distribution Box PC+ABS

KXT-A-4A Fiber optical Distribution box   is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH. Widely used in the end termination of residential buildings and villas, to fix and splice with pigtails; Can be installed on the wall; May adapt variety of optical connection styles; Optical fiber can be managed effectively. Available for 1*2/1*4 PLC Splitter.

Features:

1.1 FTTH network and CATV system application.

1.2 Available for 1*2/1*4 PLC Splitter. Design to protect PLC splitter.

1.3 Suit for both Outdoor & Indoor. IP65 Grade.

1.4 Waterproof, Anti-UV, Ultra violet resistant and rainfall resistant.

1.4 Light weight, small cubage, small installation size,realiable sealing.

1.5 Could be connected FTTH Drop cables inside. Design the splicing place for Mechanical Splice

1.6 The base and cover of the box adopts “self-clip” &”screw-clip” two times lock method, which is better to use in outdoor for high sealing and waterproof.

Adapter port :

Could be used for LC Duplex, SC ,FC Adapter;

Cable port:

Could be connected 1 inlet ports, 4 outlet ports.

Cable diameter(mm): φ7~φ10

Main Technical Indexes

2.1 Environmental Temperature:-40°C~60°C;

2.2 Max capacity: 4 fibers;

2.3 Application for outdoor, IP65 grade

2.4 Material: High impact plastic.
