Ethernet Fiber Optic Connection Box , Fiber Optic Termination Box Fiber To The Home

Brand Name:	kexint
Model Number:	KXT-A-2A
MOQ:	Negotiation
Price:	Negotiation
Packaging Details:	20PCS in one box
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen china

Certification:

CE ISO

Size:

167*102*31

Material:

PC+ABS

Capacity:

2cores 4cores

Color:

White Black Light Gray

Optical Cable Ports:

6mm

Mounting Way:

Wall Mounting

Supply Ability:

10000+pcs+week

Highlight:

fiber optic connection box

ftth fiber optic terminal box

Product Description

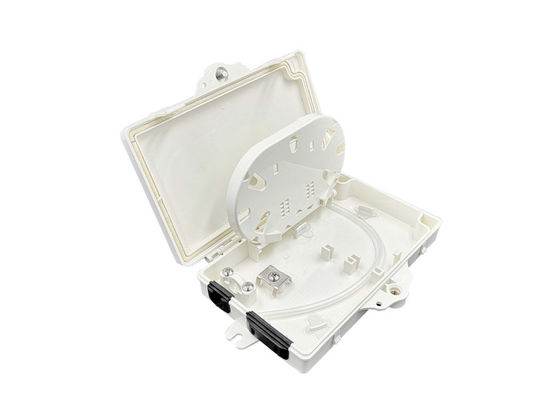

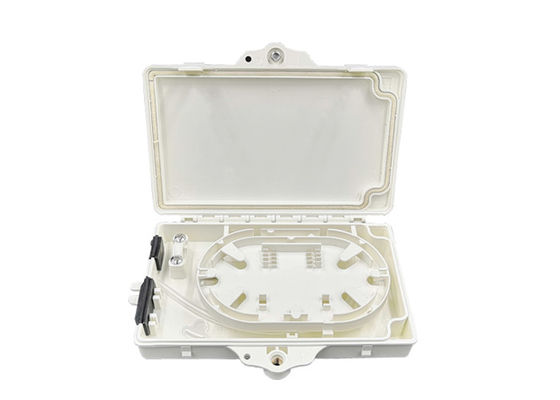

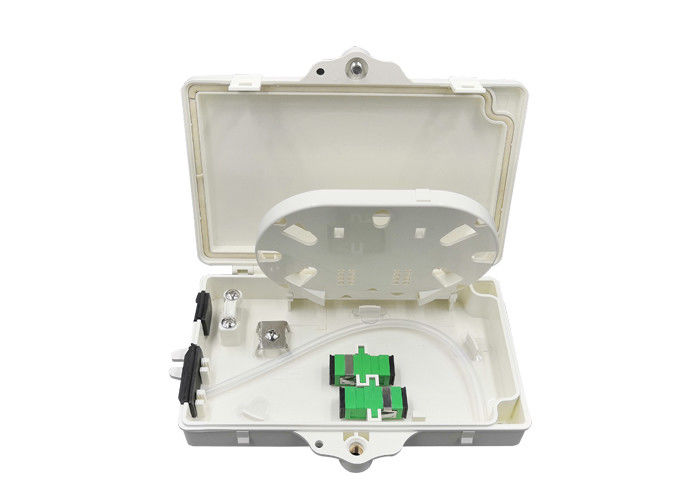

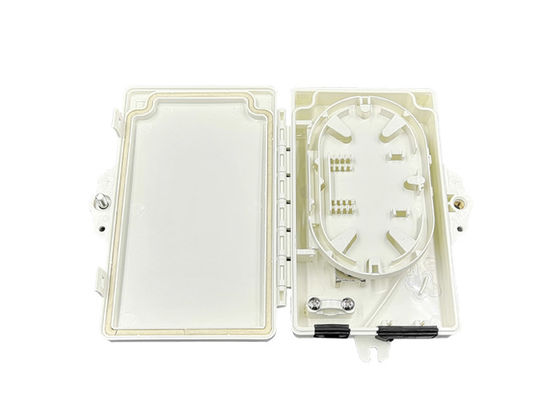

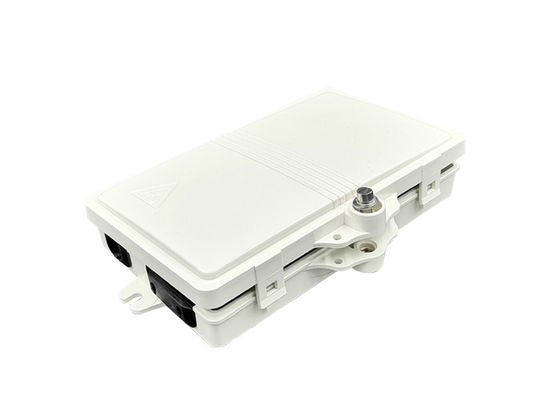

Wall Mountting 2 Cores 4 Cores FTTH Fiber Optical Distribution Box

Description:

Desk Box Wall Mountting 2 Cores 4 Cores FTTH Fiber Optical Distribution Box is widely used as a termination point for the feeder cable to connect with drop cable in FTTH network, telecommunication network, CATV network, data network and local area network etc.

2. Features:

• Positive fiber management of the pigtails and fibers is guaranteed by bend control on the splicing tray and from the ODF box

• A special Drop fiber cable entrance from the ODF sides

• Direct termination with field installable connectors

• Attractive design for indoor use

• Can hold up to 2 mechanical splices and fusion splice protectors (SMOUV and ANT) and mechanical SC connectors can be integrated as well.

• Splice cable to cable

• Compatible with 2 SC/UPC Simplex adaptors

• Lightning strike, erosion, aging resistance.

• Easy to re-enter, it never requires re-entry kits

Specification
Working temperature	-40ºC~+60ºC
Relative humidity	≤85%(+30ºC)
Atmospheric pressure	70KPa~106Kpa
Quantity of cable entry	1X2 (Both can go inside up and down)
Quantity of drop cable entry	1X2 (Both can go inside up and down)
Door opening angle	180 °
Adapter	SC FC LC
Insulation Resistance	2x10^4MΩ (500V/DC)
Dielectric strength	3000V/1min/10mA
